7. User menu I 8. Operation
56
General settings
Clock
Date
Screen brightness
Sound
Language
Software update
WiFi settings*

8. Operation

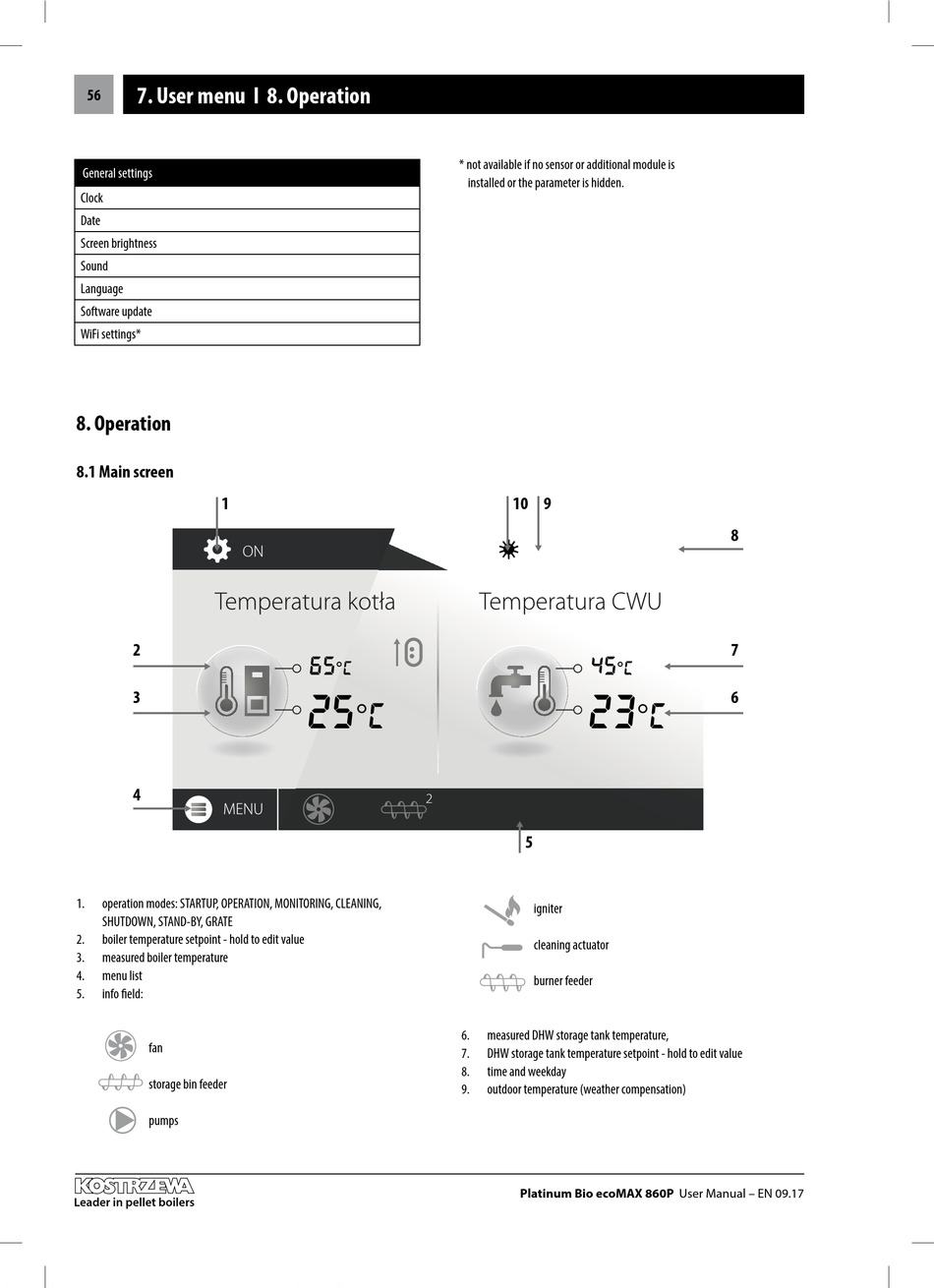

8.1 Main screen

1
ON
2
3
4
1. operation modes: STARTUP, OPERATION, MONITORING, CLEANING,
SHUTDOWN, STAND-BY, GRATE
2. boiler temperature setpoint - hold to edit value
3. measured boiler temperature
4. menu list
5. info field:
fan
storage bin feeder
pumps
Leader in pellet boilers
* not available if no sensor or additional module is
installed or the parameter is hidden.
65
°[
25
°[
2
6.
7.
8.
9.
10 9
24 SO 1:08
°[
45
°[
23
°[
5
igniter
cleaning actuator
burner feeder
measured DHW storage tank temperature,
DHW storage tank temperature setpoint - hold to edit value
time and weekday
outdoor temperature (weather compensation)
Platinum Bio ecoMAX 860P User Manual – EN 09.17
8
7
6
