iKarus Dragstair Montageanleitung Seite 18

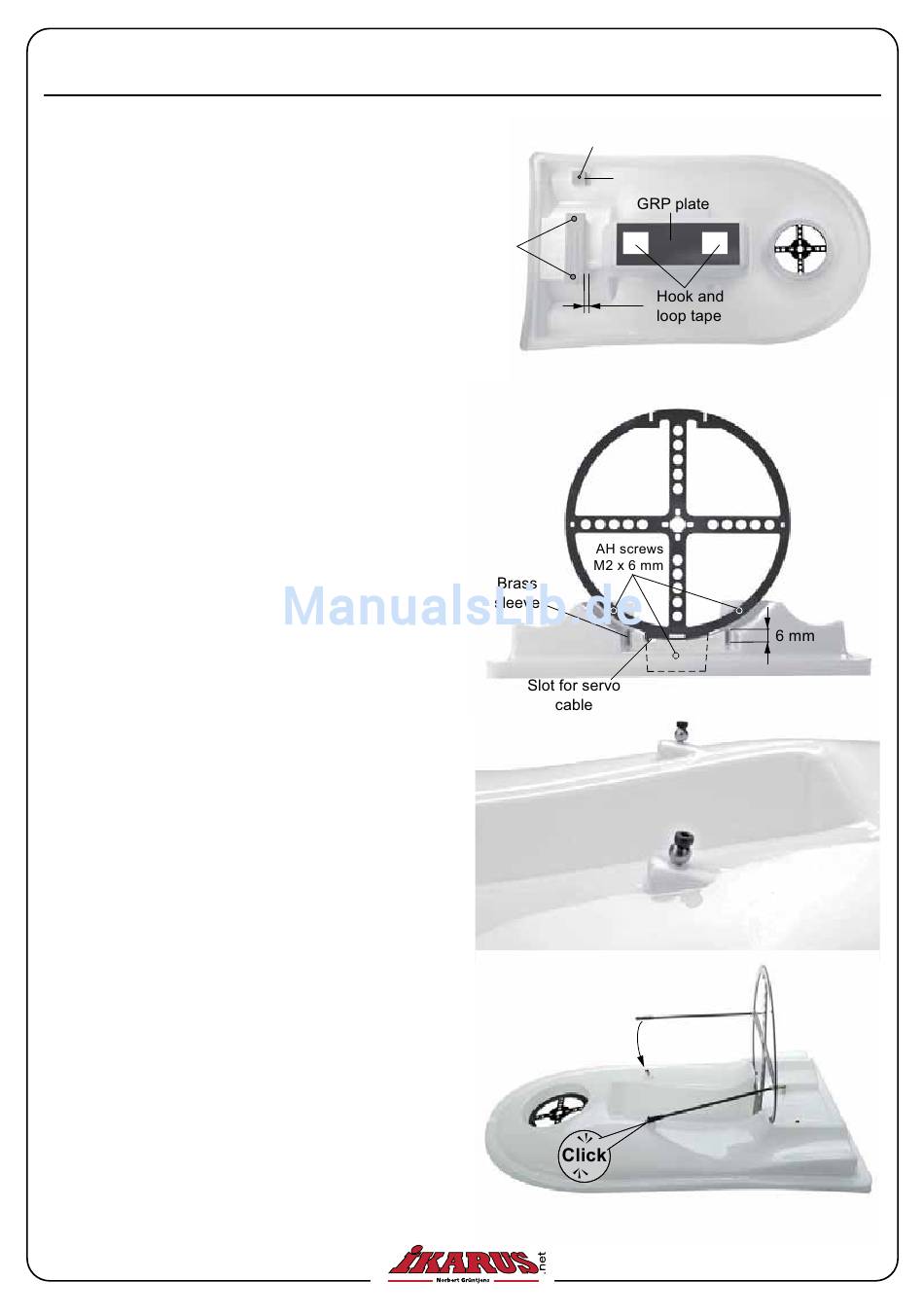

Glue the balsa blocks into the inside as
shown on the photo and then drill the 4
mm holes in the large balsa block carefully
through the upper shell. Drill a 3 mm hole
through the small balsa block. Later it will
take the antenna tube. You may freely se-
lect the position of the antenna. Glue the
0.5 mm GRP plate centered to the bot-
tom of the electronics compartment. Then
place two of the hook and loop tapes into
position as shown.
Screw the GRP main motor mount to the upper
shell (carefully pre-drill the holes!). Secure the
screws from the inside with a washer and a self
locking nut.
Tip: run the servo cable from the rear through the
slot in the motor mount before this assembly.
Glue the two brass sleeves into the 4 mm holes.
The sleeves should extend at the top by about
6 mm.
As shown in the picture screw the two brass
balls centered onto the two humps on the upper
shell. Use the two Allen Head screws M 2 x 10.
Secure them from the underside with a washer
and a self locking nut.
Then screw the two M2 threaded rods into the
ball connectors and insert these into the CRP
tubes. Slip a washer and a silicone sleeve (9
mm) over the exposed end and insert the rod
into the oblong holes of the mount. Secure them
on the opposite side with a self locking nut (do
not tighten it yet). Now bend the threaded rod
downward until the ball connector slips over the
brass ball.
Upper shell assembly
Drill hole 4 mm
Ø (2 x)
13
Drill hole 3 mm Ø for the antenna tube
Freely selectable position
3 mm
