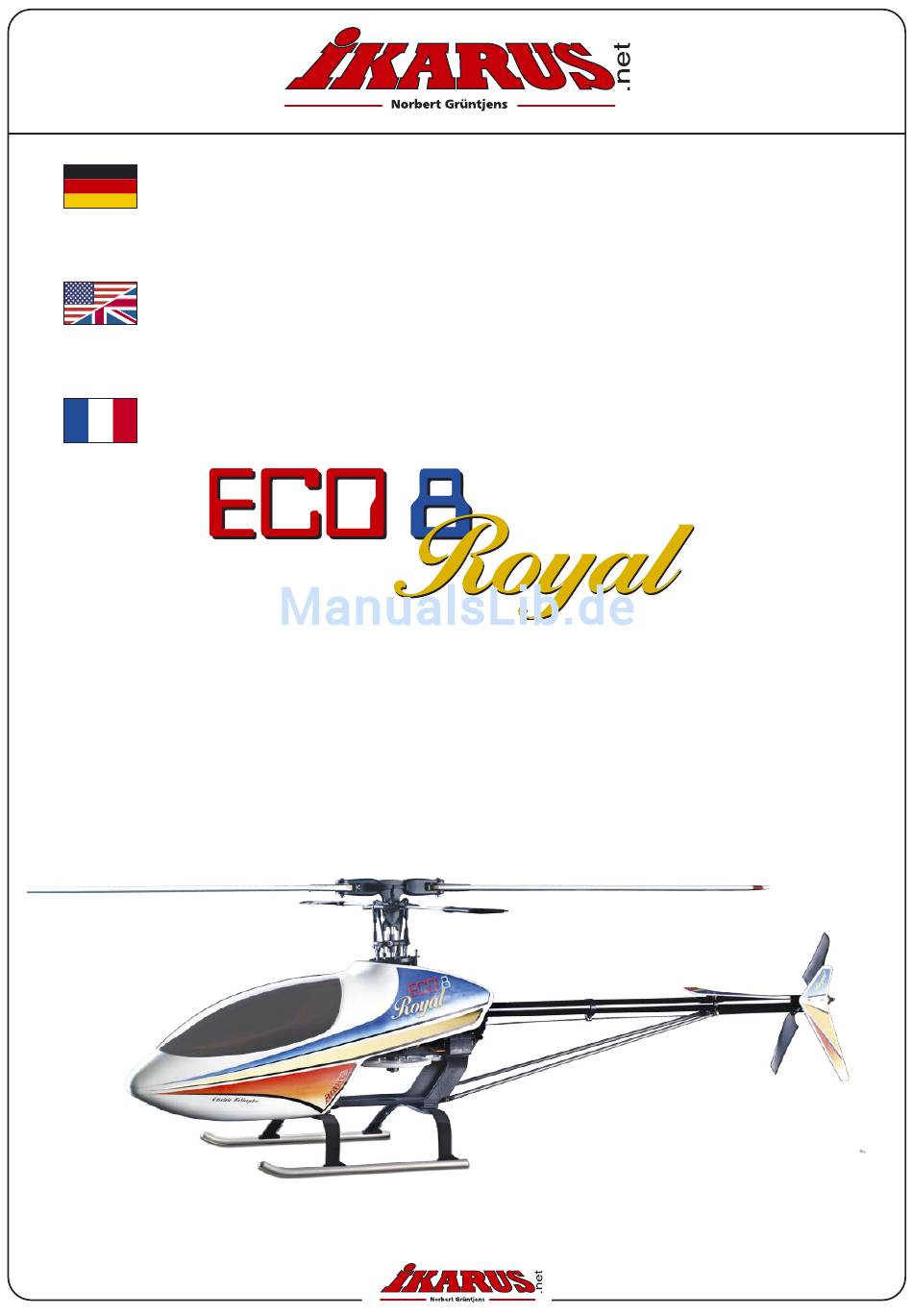

Seite 1
Deutsch: Zusatzblatt zur Bedienungsanleitung Additional Royal English: Instructions Français: Annexe á la notice Royal Einstellungen für Kunstflug Set up for aerobatic flight Réglage pour la voltige 6089005-0607...
Seite 2
Viel Spaß und guten Flug wünscht Ihnen Ihr IKARUS Team. Thank you for purchasing the ECO 8 Royal from IKARUS. Whether you are a novice or an expert, the ECO 8 Royal is a model helicopter, which will provide unlimited flying fun.
Seite 3
Der Hauptrotorkopf • The Main Rotor Head • Tête de rotor principal 4 x 67567 Kugellager 3 x 7 x 3 Ball Bearing 3 x 7 x 3 6054068 Roulement 3 x 7 x 3 67717 2 x 67649 IB-Schraube M 3 x 6 6083031 AH Screw M 3 x 6 67649...
Seite 4
Der Hauptrotorkopf • The Main Rotor Head • Tête de rotor principal 4 x 67566 Kugellager 2 x 6 x 3 Ball Bearing 2 x 6 x 3 Roulement 2 x 6 x 3 4 x 67576 Messingkugel Brass Ball Rotule laiton 4 x 67717 Messingscheibe...
Seite 5
Der Hauptrotorkopf • The Main Rotor Head • Tête de rotor principal 68305 6053016 6083037 Nur vorläufig festziehen! Thigten slightly! Ne serrer que provisoirement! 6083034 6083025 6083012 67565 6083007 4 x 67565 Kugelkopf, lang 67565 Ball Connector, long Chape à boule 2 x 68305 Madenschraube M 3 x 3 Set Screw M 3 x 3...
Seite 6
Der Hauptrotorkopf • The Main Rotor Head • Tête de rotor principal 67529 6083012 67574 6083036 4 x 67565 Kugelkopf, lang Ball Connector, long Chape à boule 2 x 67531 Gestänge M 2 x 52 Pushrod M 2 x 52 Tringle M2 x 52 mm 67565 67531...
