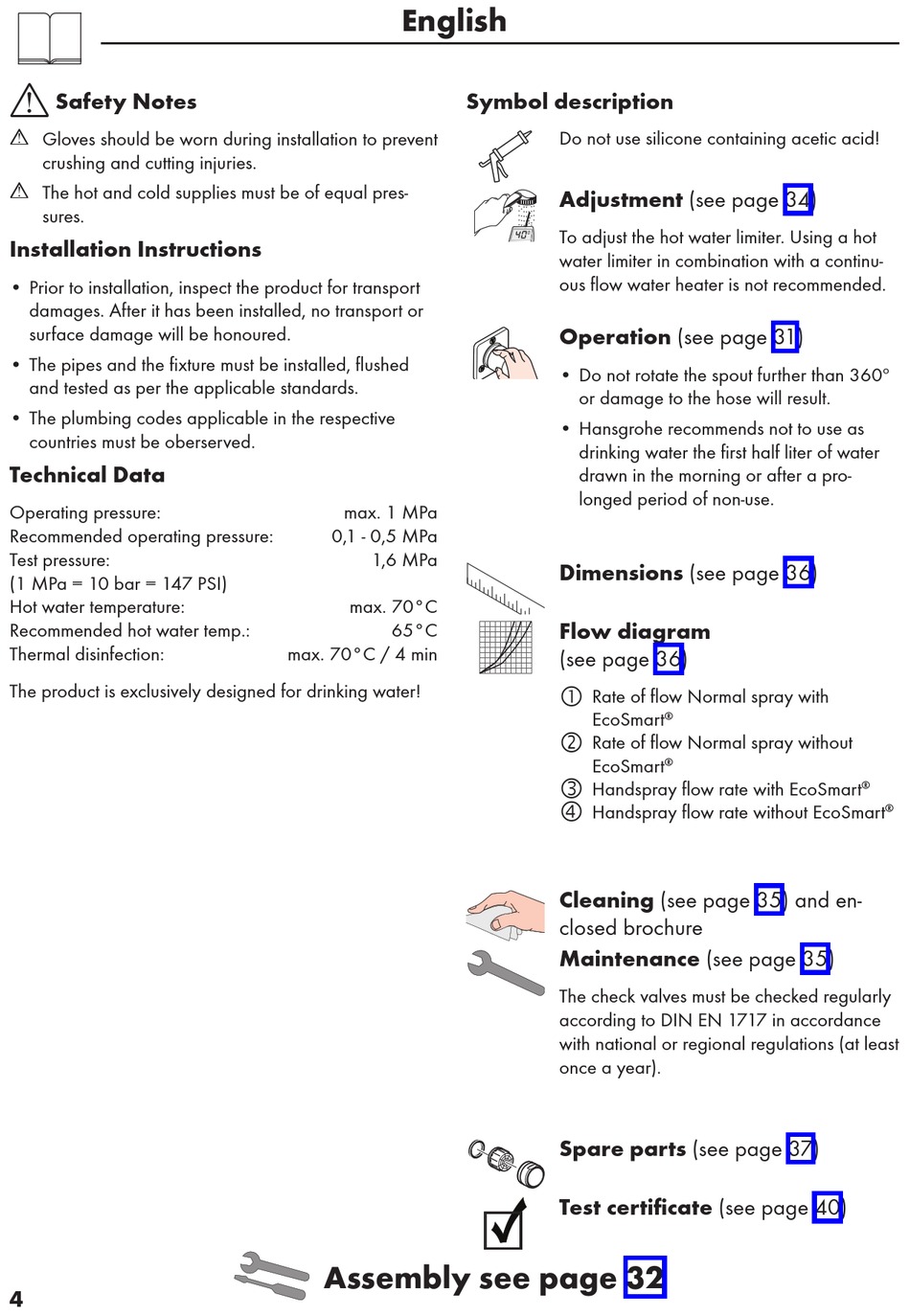

Safety Notes; Installation Instructions; Technical Data; Symbol Description - HANSGROHE Centro XL Gebrauchs- Und Montageanleitung

Safety Notes

Gloves should be worn during installation to prevent
crushing and cutting injuries.
The hot and cold supplies must be of equal pres-
sures.

Installation Instructions

• Prior to installation, inspect the product for transport
damages. After it has been installed, no transport or
surface damage will be honoured.
• The pipes and the fixture must be installed, flushed
and tested as per the applicable standards.
• The plumbing codes applicable in the respective
countries must be oberserved.

Technical Data

Operating pressure:
Recommended operating pressure:
Test pressure:
(1 MPa = 10 bar = 147 PSI)
Hot water temperature:
Recommended hot water temp.:
Thermal disinfection:
The product is exclusively designed for drinking water!
4
English
max. 1 MPa
0,1 - 0,5 MPa
1,6 MPa
max. 70°C
65°C
max. 70°C / 4 min
Assembly see page 32

Symbol description

Do not use silicone containing acetic acid!
Adjustment (see page 34)
To adjust the hot water limiter. Using a hot
water limiter in combination with a continu-
ous flow water heater is not recommended.
Operation (see page 31)
• Do not rotate the spout further than 360º
or damage to the hose will result.
• Hansgrohe recommends not to use as
drinking water the first half liter of water
drawn in the morning or after a pro-
longed period of non-use.
Dimensions (see page 36)

Flow diagram

(see page 36)

Rate of flow Normal spray with
EcoSmart

Rate of flow Normal spray without
EcoSmart

Handspray flow rate with EcoSmart

Handspray flow rate without EcoSmart
Cleaning (see page 35) and en-
closed brochure
Maintenance (see page 35)
The check valves must be checked regularly
according to DIN EN 1717 in accordance
with national or regional regulations (at least
once a year).
Spare parts (see page 37)
Test certificate (see page 40)
®
®
®
®
