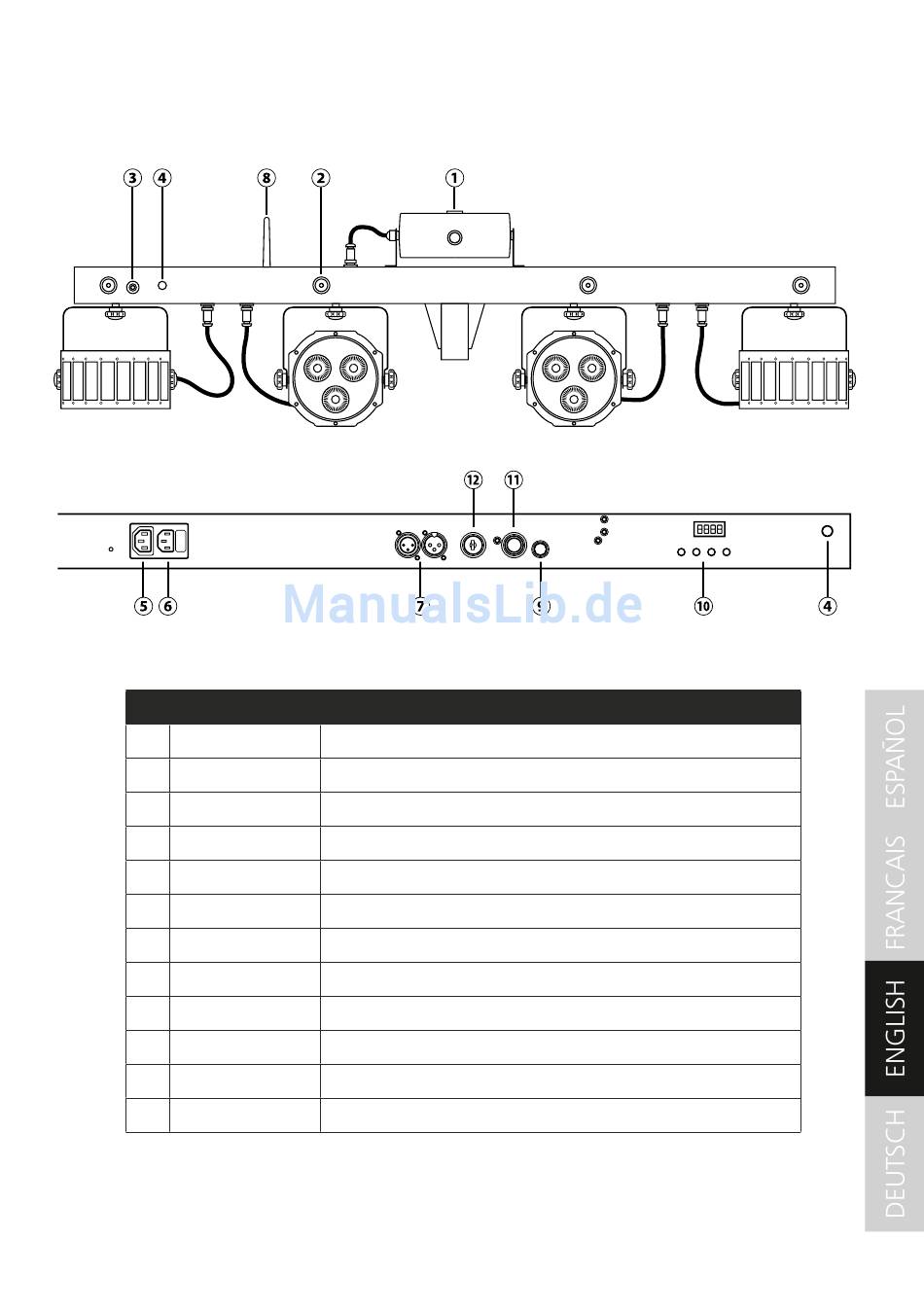

Setup and operation of the device
Nr. Function
1 Laser Unit
2 LED Strobe Lights
3 Microphone
4 IR Sensor
5 Power Link
6 Power Input
7 DMX in/output
8 Wireless Antenna
9 Knob
10 LED Display
11 Remote Switch
12 Key Switch
Description
Laser unit! Do not look directly into the opening!
4x 1 Watt LED Strobe, white
Microphone for the Sound 2 Light function
Sensor for the Infrared remote control
To loop through the power signal
Power supply connection
DMX In and Output, 3 pole
Receives signal from footswitch
Adjusts the sensitivity of the microphone in Sound 2 Light Mode
Display to adjust the functions
Input for emergency off switch
Laser ON/OFF switch
