Please note:

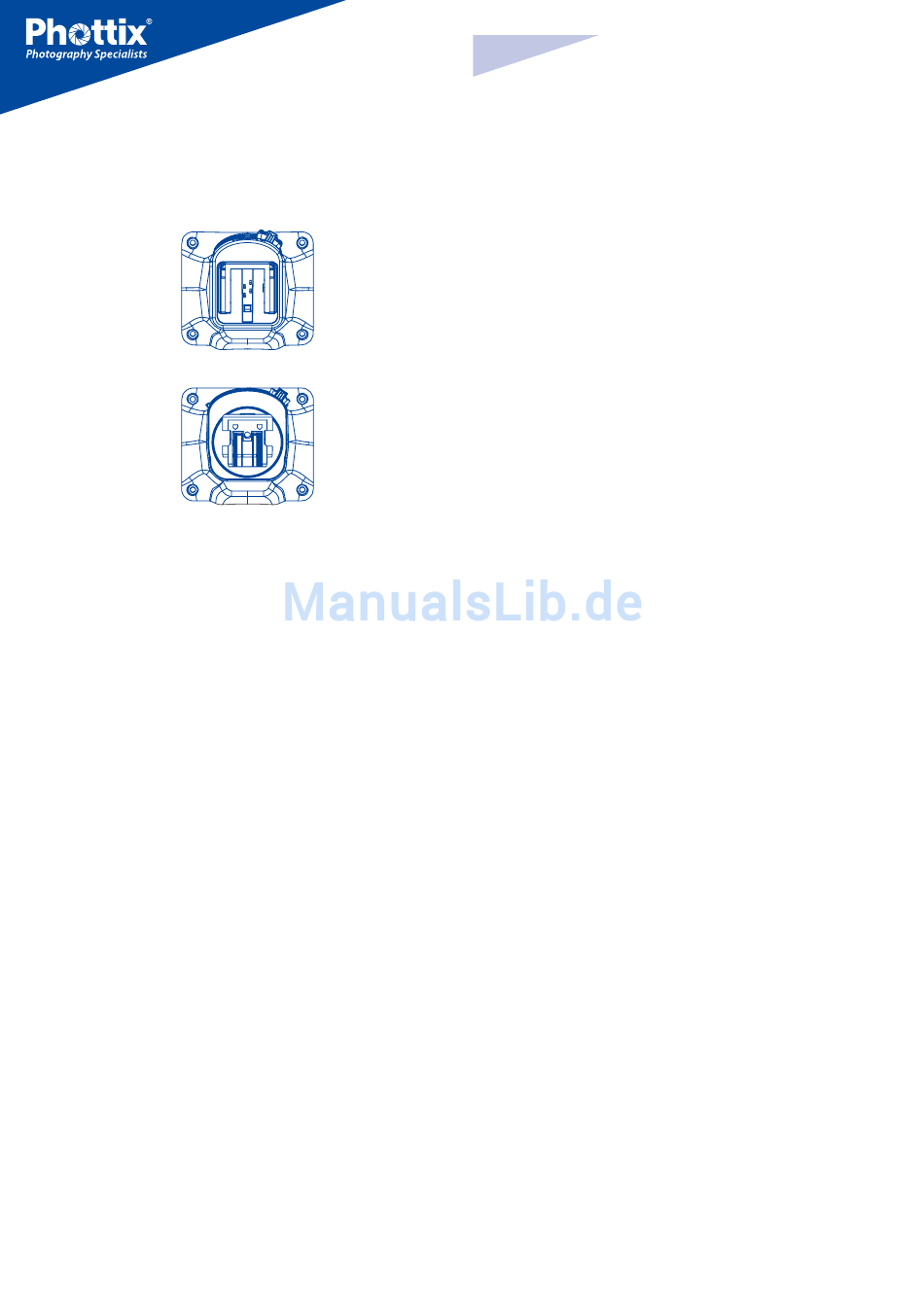

There are 2 types of hot shoe for Mitros for Sony flash. Please make sure to
choose the right one for your camera.
Type 1 = Older Style Minolta Hot Shoe
Type 2 = New Style ISO Hot Shoe
This instruction assumes:
1. Both the flash and camera are switched on.
2. The flash and camera are set to the same settings.
3. Camera menu and flash custom functions menu are set to default values.
4. The flash is being used with a compatible Sony DSLR.

Installing batteries

1. Press the battery cover in while pushing it towards the bottom of the flash.
The battery cover will open and raise.
2. Insert AA batteries as shown by the diagram inside the battery compartment.
3. Lower the battery cover and push back towards the top of the flash, locking
it in place.
Please note:
- Please use four standard high-quality batteries of the same brand. Make
sure all batteries are at similar powers levels.
- Batteries can get hot when the flash is being used. Use caution when chang-
ing batteries.
- If you do not use the flash for an extended period of time, store with bat-
teries removed.
Attaching the flash to a camera
Turn off both the camera and flash
1. Align the flash hot shoe with the camera hot shoe.
2. Slide the flash into the camera hot shoe until fully inserted.
3. Lock the flash in position by pushing the locking lever to the right until the
lock engages with a click.
4. To Unlock, press the locking release button on the locking lever and slide to
the left.
INSTRUCTION MANUAL
En
Turning the Flash On / Off
1. To power on the flash move the power switch to the on position.
2. To power off the flash move the power switch to the off position.

Battery Level Indicator

The Battery Level Indicator on the LCD (see below) will display an approximate
indication of how much power remains in the batteries in the flash. Use this as
a rough guide as to when a battery change is needed. If flash recycling time has
become very long (30 seconds) change the batteries.
Raising and Rotating the Flash Head
1. The flash head will elevate from -7 to 90 degrees with stops at -7, 0, 45, 60, 75
and 90 degrees. Gently raise or lower the flash head into the required position.
2. The flash head will rotate 180 degrees in either direction with stops at 60, 75,
90, 120, 150 and 180 degrees. Gently rotate the flash head into the required
position.
3. When the flash head is raised or rotated from the 0 degree standard forward
position the flash zoom will set itself to 50mm. "- -" will be displayed on the LCD.
Flash zoom when the head is raised or rotated can be changed in MZoom mode
(see below).
4. At -7 degrees the flash zoom will act the same as 0 degree – it will not change
any settings.
Using the Bounce Card or Wide Angle Diffuser
The Phottix Mitros Flash comes equipped with a white bounce card and wide
angle diffuser panel in the flash head.
1. The wide angle diffuser panel will cause the flash to spread light to a 14mm
equivalent.
2. The white bounce card can be used when the flash head is in a raised position
to bounce light forward to assist with catch lights in a subject's eyes.
To use:
1. Gently pull the diffuser panel and bounce card from the flash head using
the ridge on the bottom of the diffuser panel.
2. If using the diffuser panel it will drop into position over the flash head. Gen-
tly push the bounce card back into the flash head if not needed.
3. If using the bounce card only gently push the diffuser panel back into the
flash head.
Using the Flash Head Diffuser
The Phottix Mitros TTL Flash comes with an attachable diffuser that can be add-
ed to the front of the flash head when needed. It is good for softening light,
reducing hot spots and shadows and better coverage for macro photography.
To use:
1. Align the diffuser with the flash head, with the "UP" mark on the diffuser
facing up.
3
