The offset angle of the DigiDish 33 resp. the DigiDish 45 is 30°.
Therefore, if you are in Daun and using a DigiDish 33 resp. 45, this results in an angle of:
31,29° - 30° = 1,29°
4.
Loosen the screws (D) on the swivel profile so that you can move the external unit up or down.

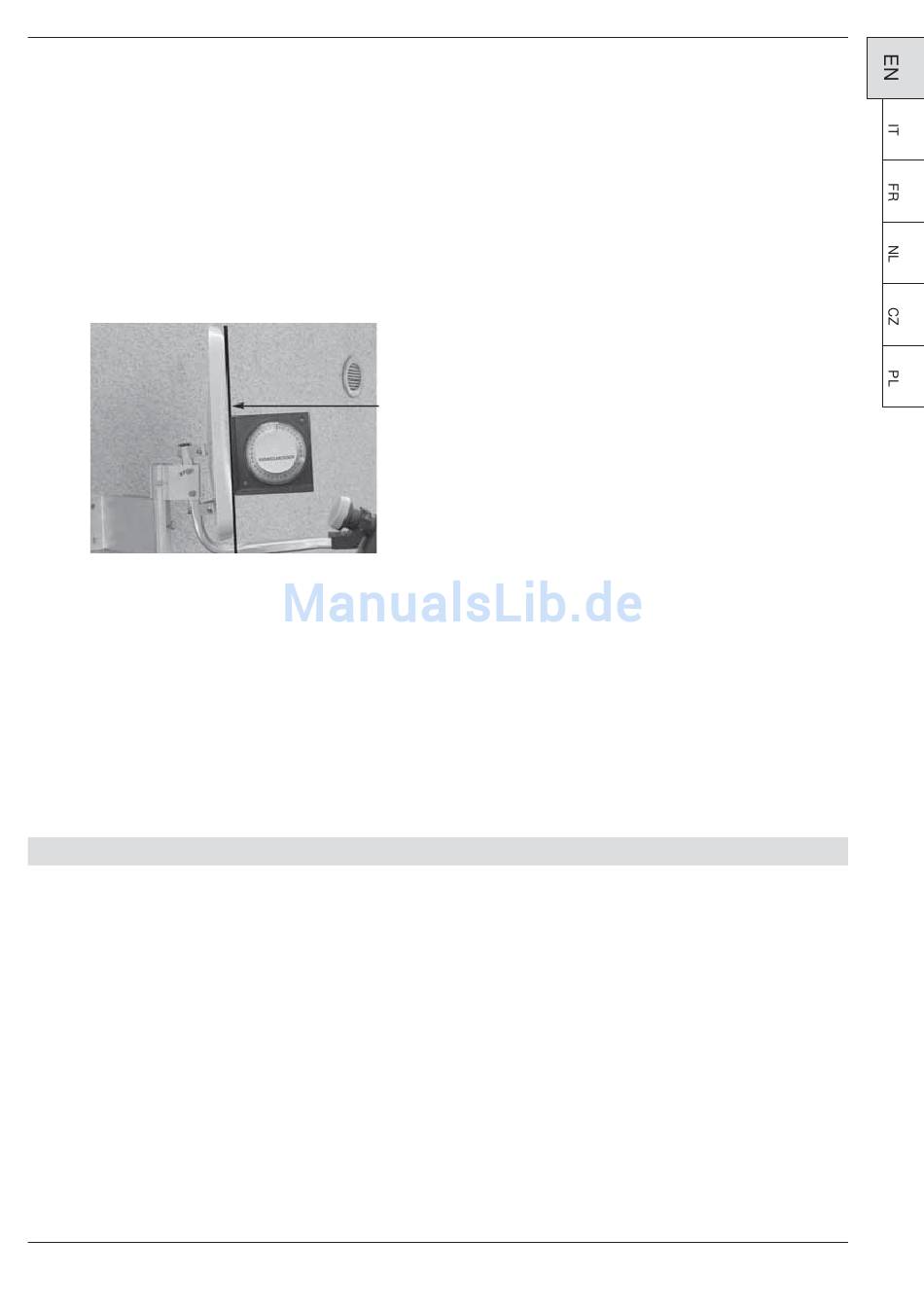

Place a rod or plank over the dish as shown in Illustration 4. Now use a protractor to set the angle
calculated.
Illustration 4
5.
Now loosen the screw (C) resp. (B) on the swivel profile, and slowly turn the dish in an easterly or
westerly direction (angle of azimuth), until you receive the television picture via the receiver.
6.
Some fine-tuning of the dish is now still required. Ideally, you should call up the transponder
information (see operating manual of the digital receiver).
7.
Now carefully adjust the azimuth (East/West) angle as well as the angle of elevation so that the
indicator for signal strength resp. quality is at a maximum level.
8.
Now tighten all screws, and take care to note that reception does not deteriorate. The dish is now
completely mounted, and has an optimum position fort he reception of the desired satellite.
Mounting advice
Multytenne LNB
Art. No. 0000/8810
Dear customer,
Your Multytenne LNB ist designed for use with the SATMAN 45 satellite dish antenna. With this, you can
receive the digital programmes of 4 orbital positions while located in Germany. Reception in neighbouring
or other countries may be restricted.
The Multytenne LNB is pre-set for the following 4 satellite positions:
Astra 19,2° East
Eutelsat 13° East
Astra 23,5° East
Eurobird-Astra 28,5° East
Board/rod
5
Multytenne
