Dear customer,
thank you for purchasing one of the quality products produced by TechniSat. In order to ensure that the
quality of the product remains constant over many years, both the dish and the mounting bracket are
made of aluminium. Please read the installation instructions carefully befor4e proceeding with the instal-
lation, to ensure that you can enjoy optimum reception performance after installation. Before starting the
installation, please check that you have received all parts and components of the external unit.

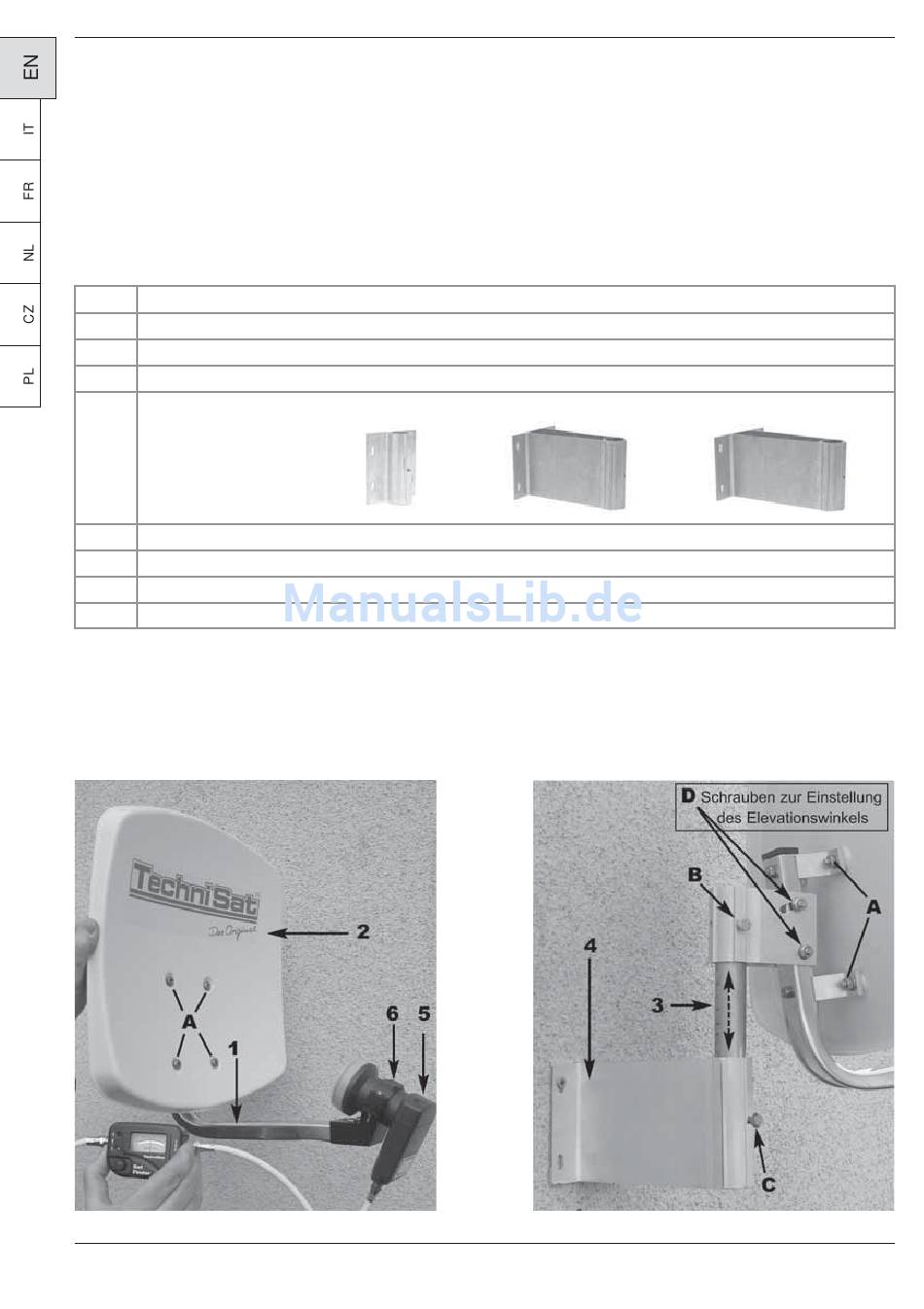

Items supplied (see illustrations 1 and 2)
Item Article
1 AZ/EL bracket with LNB holding bracket and swivel profile
2 Dish antenna
3 Connector
4 Wall mount*:
5 LNB
6 LNB holding bracket with 2 screws M3x30, 2 nuts M3, 2 washers**
A Screws M6x15, 4 nuts M6, 4 washers
D Screws for the adjustment of the elevation angle
* Contents vary with package selected
**only with DigiDish
Illustration 1
Operating manual
"short" or "medium" or
2
Illustration 2
"long"
