1 Mounting the external unit
When you unpack the external unit, you will find that it has already been partly pre-assembled, so all
you need to do is to mount the dish (item 2) and the connector piece (item 3). First, use the screws (A)
to attach the dish to the AZ/EL bracket (item 1). Then loosen the screw (B) on the swivel profile in order
to mount the connector piece. Then mount the LNB (item 5) on the LNB holder, using the LNB holding
bracket (item 6) as shown in illustration 1.
2 Installation
Selecting a location

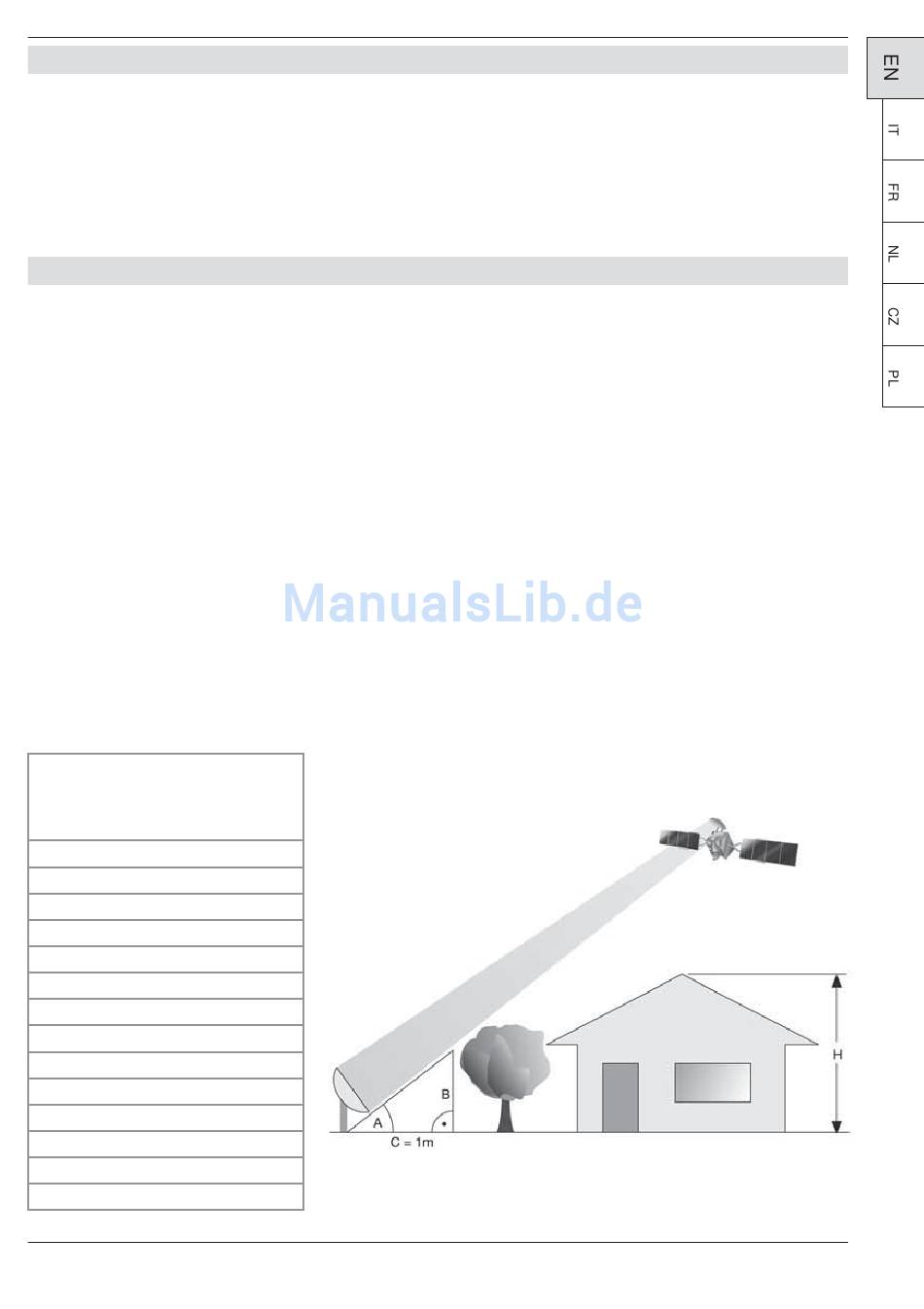

a) First ensure there is an uninterrupted line of sight from the intended mounting position in a south-
erly direction in order to receive signals from the satellite position ASTRA 19,2° East. With the
aid of the illustration below you can see whether you have left enough space with regard to any
neighbouring obstruction, in order to avoid the signal being weakened by such an obstruction.
When mounting the dish below a terrace, please ensure that it is not in the shadow of a project-
ing roof.
b) Now attach the wall mount (item 4) horizontally at the location selected. In order to ensure an
optimum hold fort he external unit, you should select appropriate fastening materials (dowels,
screws, etc.). Because of the huge variety of wall conditions found in practice, no fastening mate-
rials for mounting he wall mount is supplied with the package.
c) Loosen the screw (C) on the wall mount, and attach the external unit using the connector piece.
Angle A Gradient B
(elevation) (cm per m)
22° 40,40
24° 44,52
26° 48,77
28° 53,17
29° 55,40
30° 57,74
31° 60,00
32° 62,49
33° 64,90
34° 67,45
35° 70,02
36° 72,65
37° 75,36
38° 78,13
3 Multytenne
