5. Installation
5.5

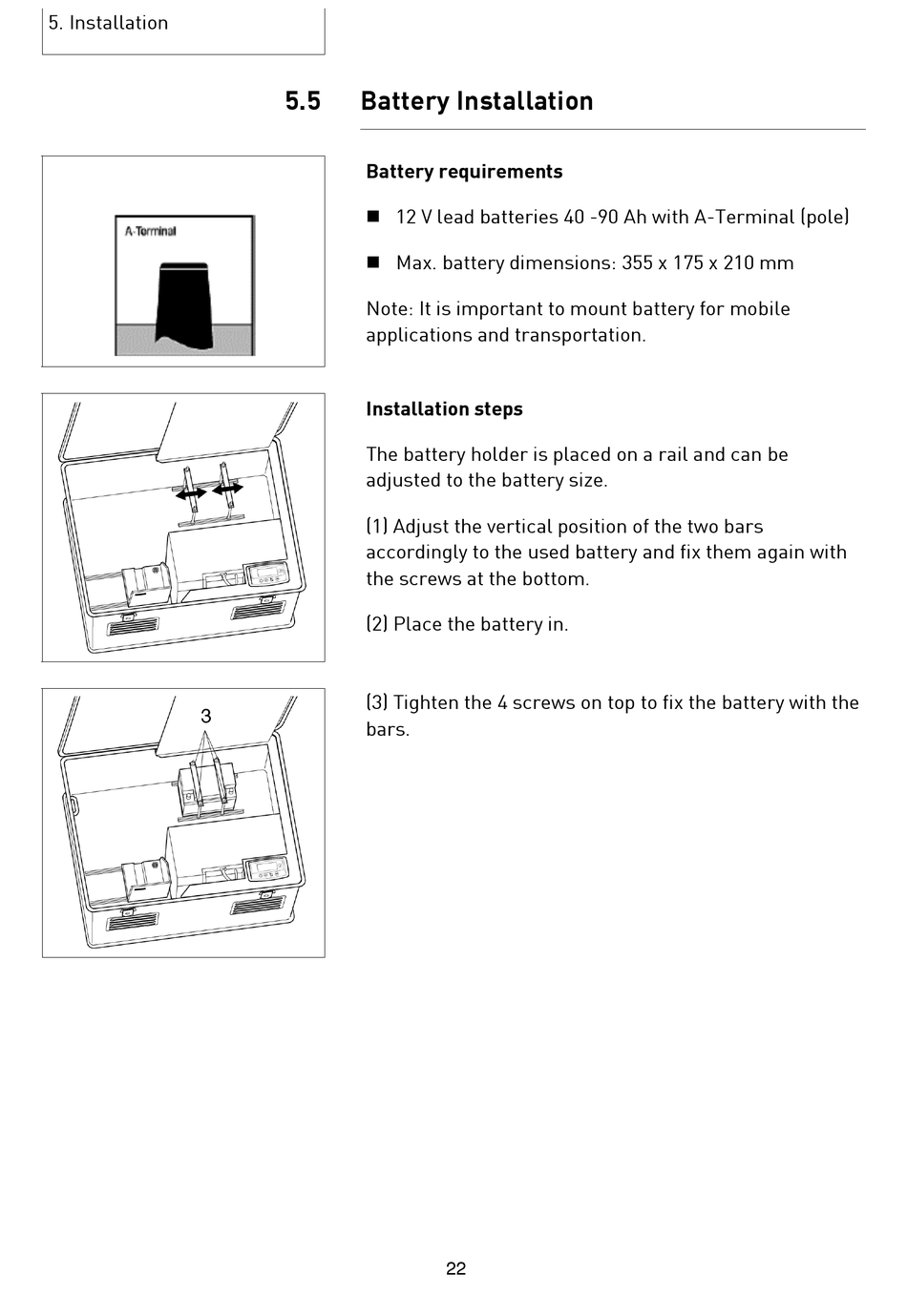

Battery Installation
Battery requirements
12 V lead batteries 40 -90 Ah with A-Terminal (pole)
Max. battery dimensions: 355 x 175 x 210 mm
Note: It is important to mount battery for mobile
applications and transportation.
Installation steps
The battery holder is placed on a rail and can be
adjusted to the battery size.
(1) Adjust the vertical position of the two bars
accordingly to the used battery and fix them again with
the screws at the bottom.
(2) Place the battery in.
(3) Tighten the 4 screws on top to fix the battery with the
bars.
22
