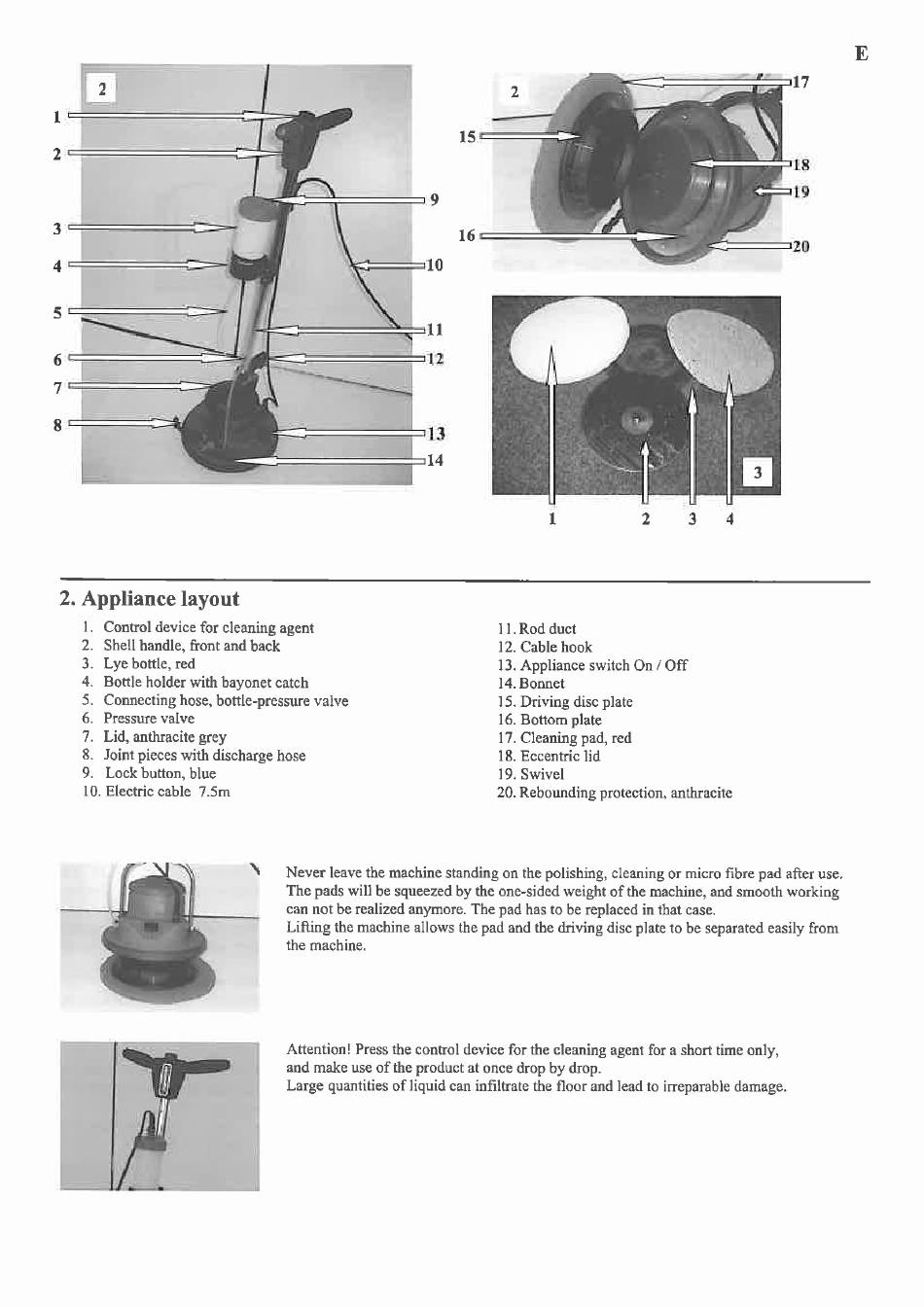

2. Appliance layout

Control device for cleaning agent
2. Shell handle, front and back
3. Lye bottle, red
Bottle holder with bayonet catch
4.
5. Connecting hose,bottle-pressurevalve
6.
Pressure valve
Lid, anthracite grey
7.
8.
Joint pieces with discharge hose
9. Lock button, blue
10. Electric cable 7.5m
Never leavethe machine standing on the polishing, cleaning or micro fibre pad after use.
The pads will be squeezed by the one-sidedweight of the machine, andsmooth working
can not be realized anymore. The pad has to be replaced in that case.
Lifting the machine allows the pad andthe driving disc plate to be separatedeasily from
the machine.
Attention! Pressthe control device for the cleaning agent for a short time only,
and make useof the product at once drop by drop.
Large quantitiesof liquid can infiltrate the floor and leadto irreparabledamage.
1 2
11. Rod duct
12. Cable hook
13. Appliance switch On / Off
14. Bonnet
15. Driving disc plate
16. Bottom plate
17. Cleaning pad, red
18. Eccentric lid
19. Swivel
20. Rebounding protection, anthracite
