// DONNÉES TECHNIQUES
7
6
5
4
2
3
91
1
Add Loctite 243 on thread
Add Grease

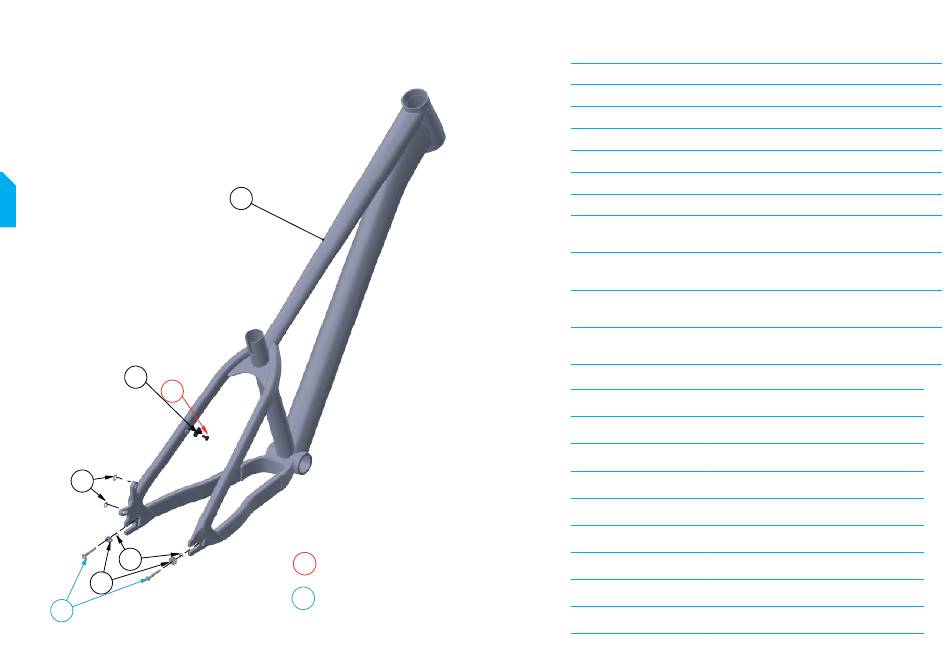

Item No. Part. No. Part name
1 002501 Front_triangle
2 002534 cog
3 002533 Bolt
4 002613 Washer
5 002614 Washer
6 000055 Bolt_M5x10_roundhead
7 001713 Action cable base
D1900 15x110 end caps
A001887
for X-Fusion Spec, EU only
D1900 20x110 end caps
A002106
for Marzocchi Spec, EU only
D1900 20x110 end caps for
A001177
Marzocchi Spec, US only
D1900 15x100 end caps for
X-Fusion Spec, US only
Trickshot 2 - Standards
Fork maximum travel 100 mm
BB standard BSA 73 mm
Rear brake mount IS (160mm rotor)
Seat post diameter 31,6 mm
Seat clamp diameter 34,9 mm
Head set (S.H.I.S) Top: ZS44 | Bottom: ZS 56
Rear hub width 135 mm
Rear wheel axle 10 mm Hub-integrated axle system
Tires max size 26"x2,1
Qty. Torque
1
2
2
2
2
1 6 Nm
1
1
1
1
1
