Before installation

In no circumstances does installation require the scoreboard casing to be opened.
The electronic elements controlling the luminous display are mounted on extractable racks (R). In order to be able to carry out any
maintenance, a clear space of at least 30 cm is necessary for the extraction of the racks. Attention: installation must be performed by
qualified staff.

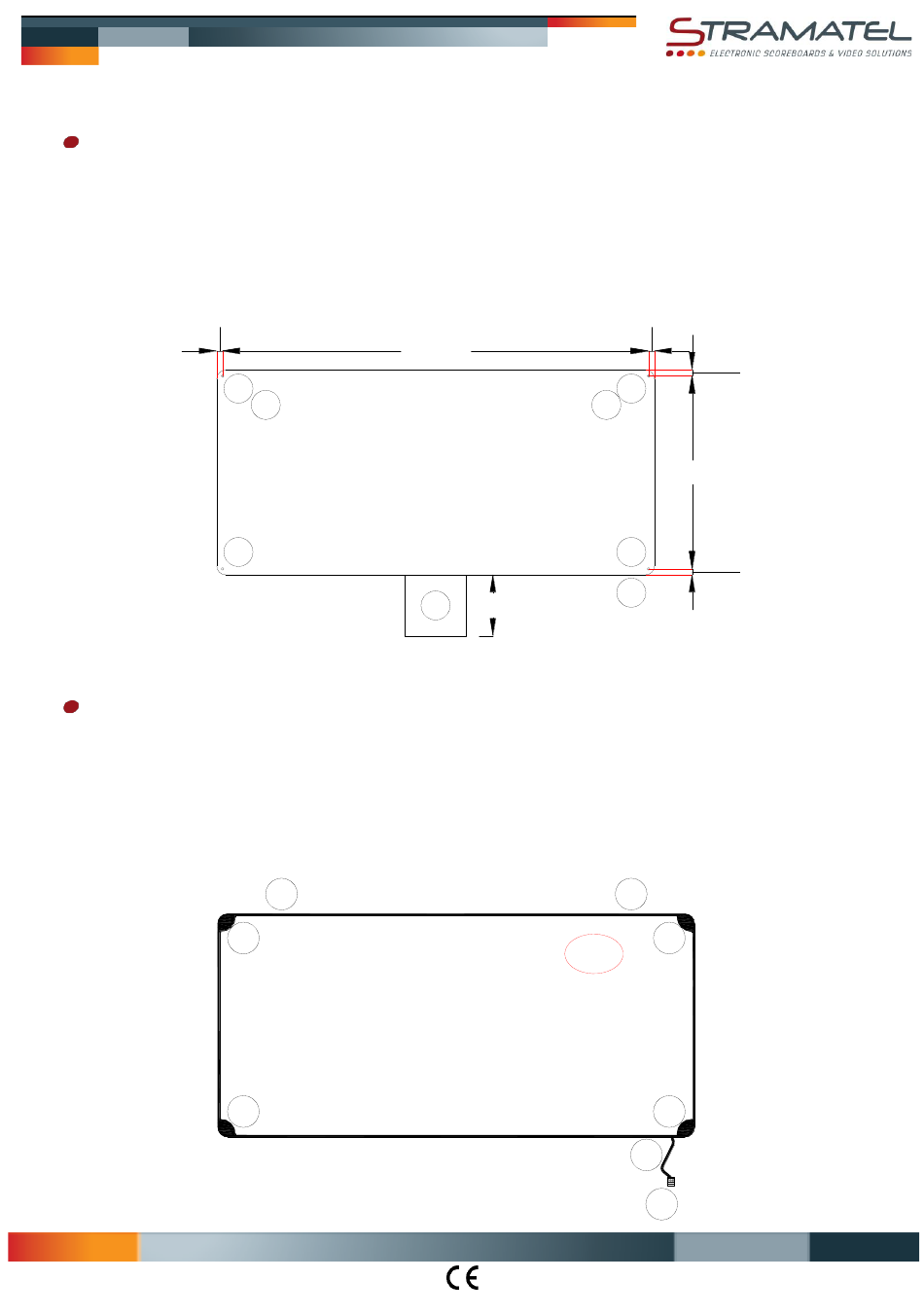

Draw the position of the mounting points (F) onto the wall or onto the support frame following the measures of the diagram.
Put plugs or inserts for Ø 8 mm screws.
20
F
F
(Z): Holes for mounting or disassembling the front face in some maintenance cases.
Scoreboard installation
In order to make installation easier, anchor points (I) are available on the top side of the scoreboard (insert holes in aluminium frame).
Screw-rings, type M6x40 (not supplied) can be screwed into place in each hole.
Please strictly follow the below instructions.
Unscrew and slide out the plastic corner shields (C) of the scoreboard.
Put the module M1 into place on the wall or on the support frame and screw in Ø 8 mm screws.
ZI de Bel Air 44850 LE CELLIER FRANCE
IA452RT-M_F - Installation RT wall mounted
1460
Z
I
C
C
Z
300
R
M1
stramatel@stramatel.com Tél. +33 (0)2 40 25 46 90
20
20
F
660
F
20
K
Dimensions in mm
I
C
C
K
S
