In case a cable set needs to be installed: control cable and wall junction box
Caution: the scoreboard must not be connected to mains before installation has been fully completed.

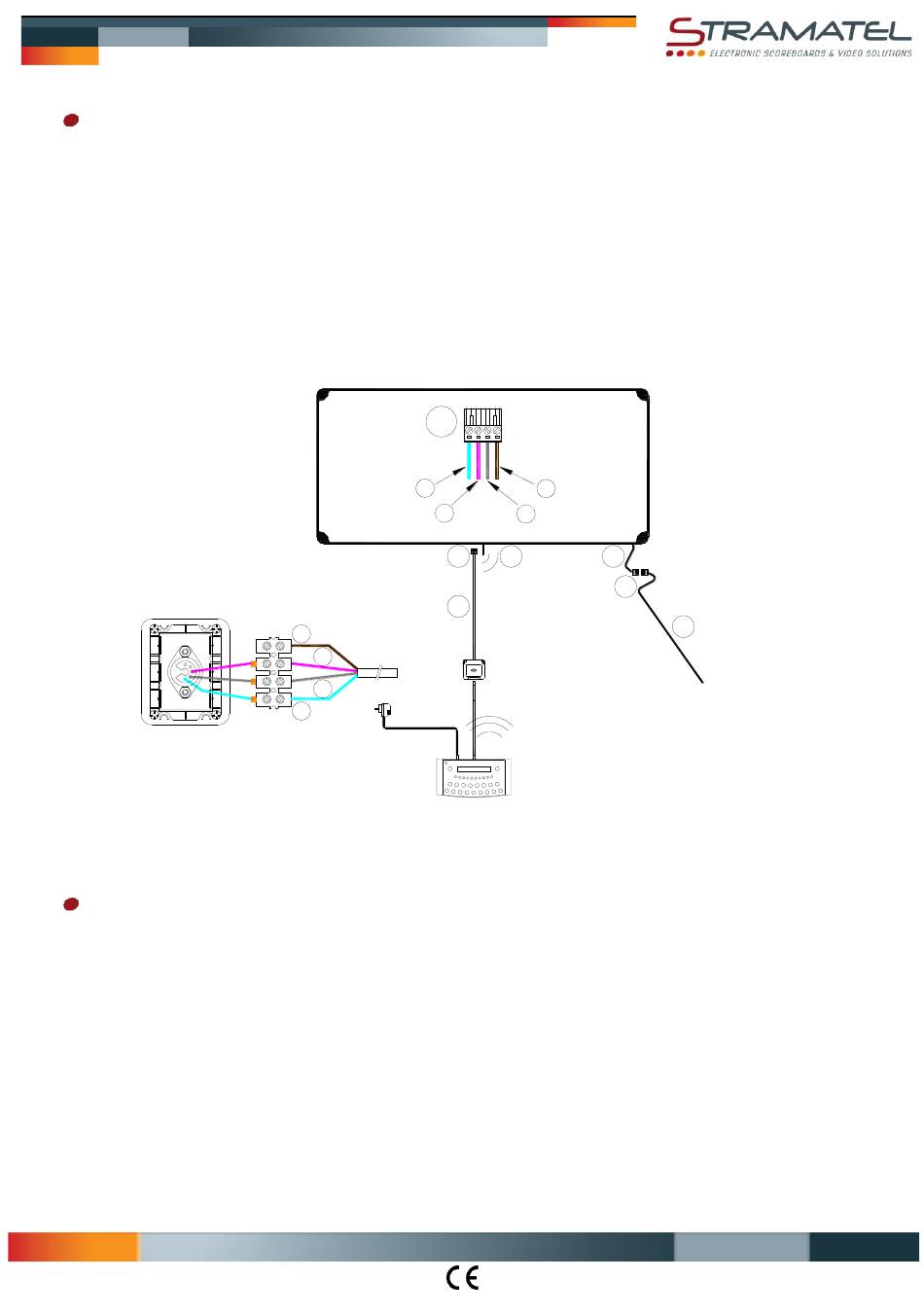

Control cable and wall junction box
The transmission cable supplied is a telephone cable: type 2 pairs 6/10
Mount the wall junction box YBJ35 onto the wall close to the scoring table.
Connect the control cable (Q) on the connector (T) of the scoreboard making sure that the colour code is followed (Please note –
RS485: Rx+ and Rx- must be connected on a twisted pair).
Fix the control cable into place making sure that it does not run along side the 100-240V mains cables.
Connect the end wires into the junction box YBJ35, making sure that the colour code is followed. If several units are connected
together, their cables must be wired in parallel in the wall junction box.
YBJ35
Control cable (Q): (1) = GND = blue wire / (2) = Rx+ = white wire / (3) = Rx- = grey wire / (4) = +24V = transparent wire
End of the installation
Slide back and screw in each of the corner plastic shields.
Try out the scoreboard operating functions (see operating functions).
