Electrical installation

Caution: the scoreboard must not be connected to mains before installation has been fully completed.
Mains cable (P)
Caution: only use the power cable provided. This cable is equipped with pre-wired plug; the wiring should not be modified.

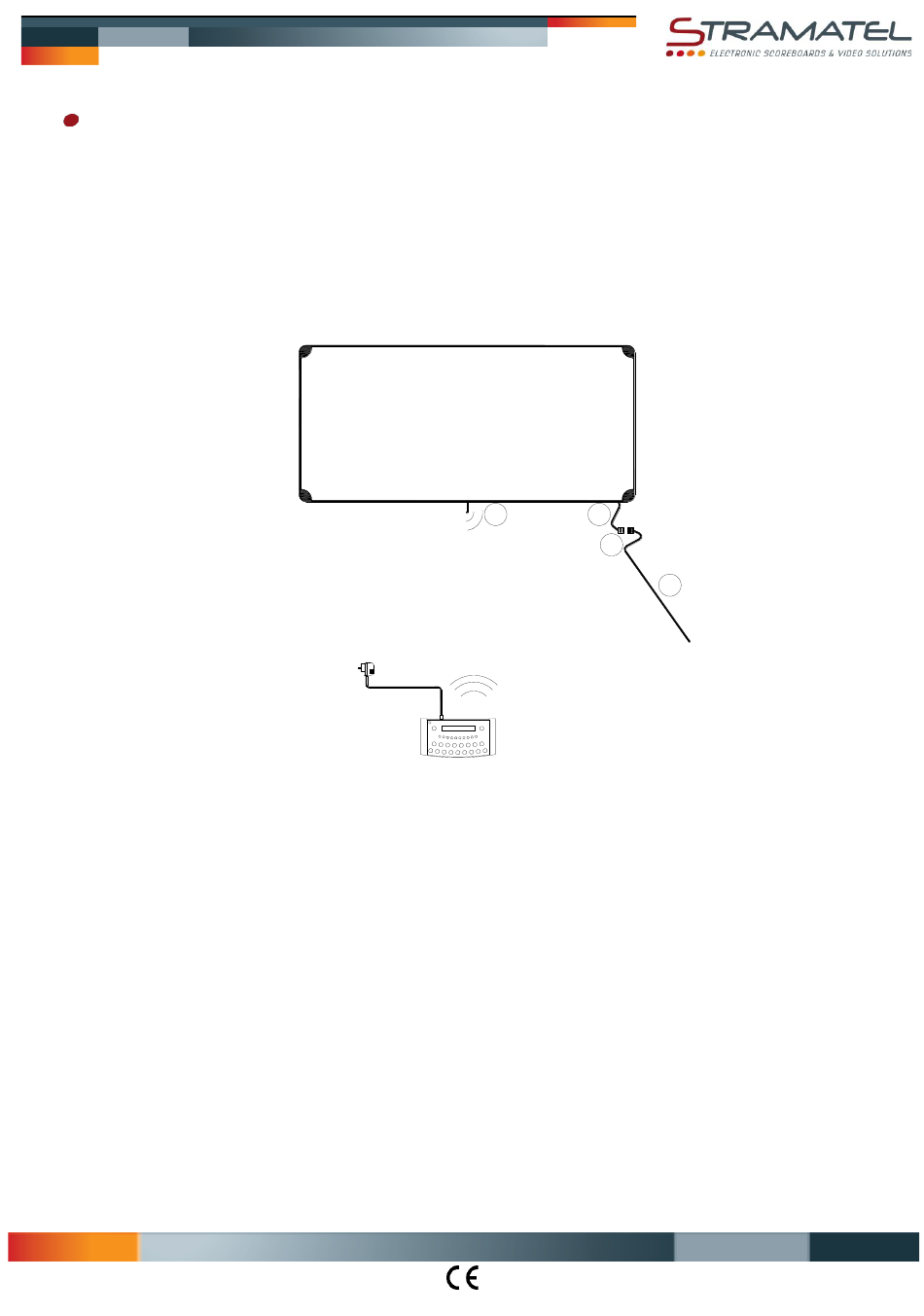

Remove the grommet (K) of the scoreboard, take the connector (S) out and connect the mains cable.
Put the connector (S) inside the scoreboard and put the grommet back into place.
Run and fix the mains cable (P) and connect it to 100-240V via a bipolar 4A circuit breaker (not supplied). Bipolar circuit breaker must
be easy to reach.
