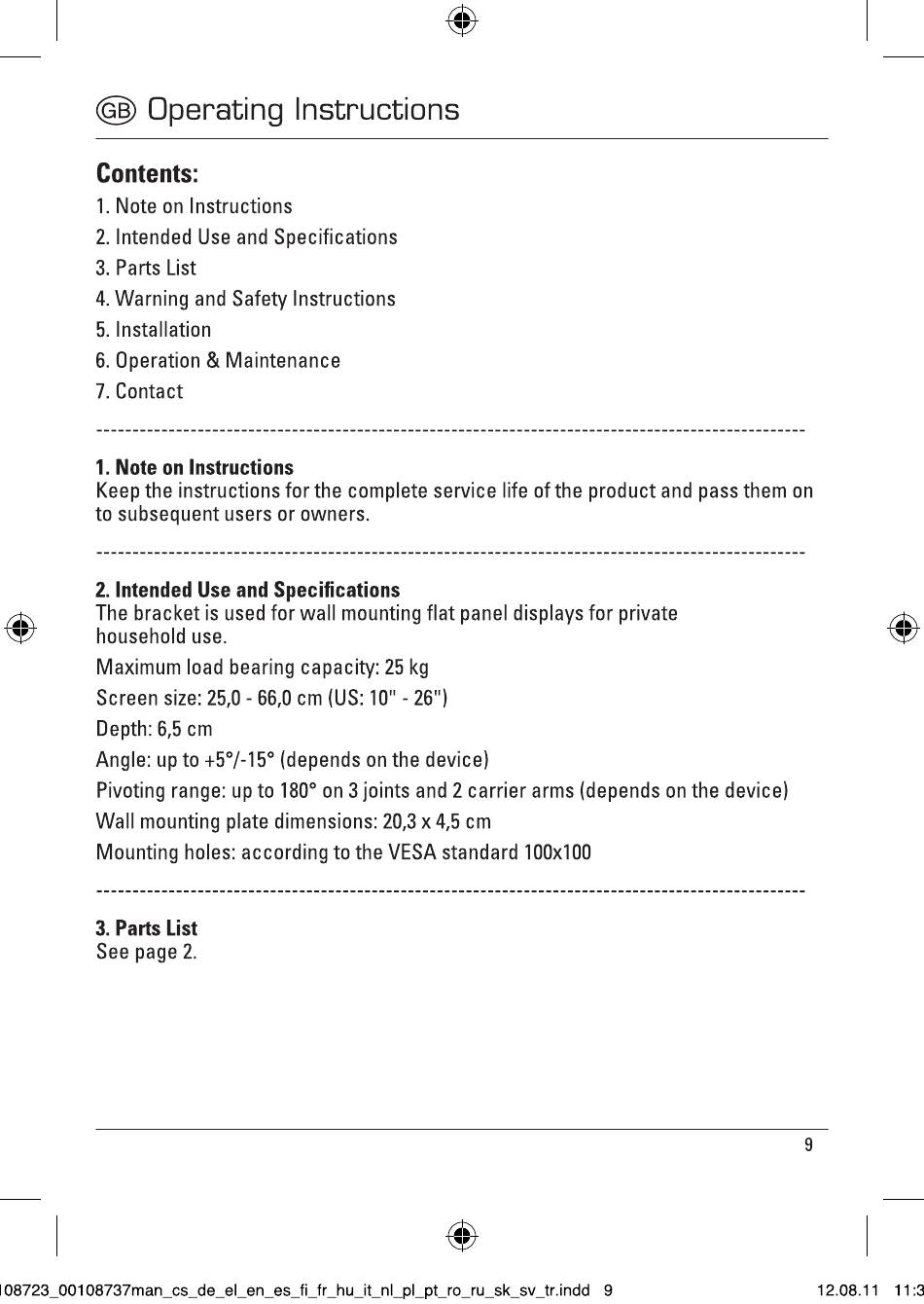

@ Operating Instructions
Contents:
Note on Instructions
2. Intended Use and Specifications
3 Parts List
4. Warning and Safety Instructions
5. Installation
Operation & Maintenance
6
Contact
7
. Note on Instructions
Keep the instructions for the complete service life of the product and pass them on
to subsequent users or owners.
2. Intended Use and Specifications
The bracket is used for wall mounting flat panel displays for private
household
Maximum load bearing capacity: 25 kg
Screen size: 25,0 - 66,0 cm (US: 10" - 26")
Depth. 6,5 cm
Angle: up to +50/-150 (depends on the device)
Pivoting range:up to 1800on 3 joints and 2 carrier arms (dependson the device)
Wall mounting plate dimensions: 20,3 x 4,5 cm
Mounting holes. according to the VESA standard 100x100
3. Parts List
See page 2.
