3. Controls and connections

3
2
1 4
CXL_IF_120731

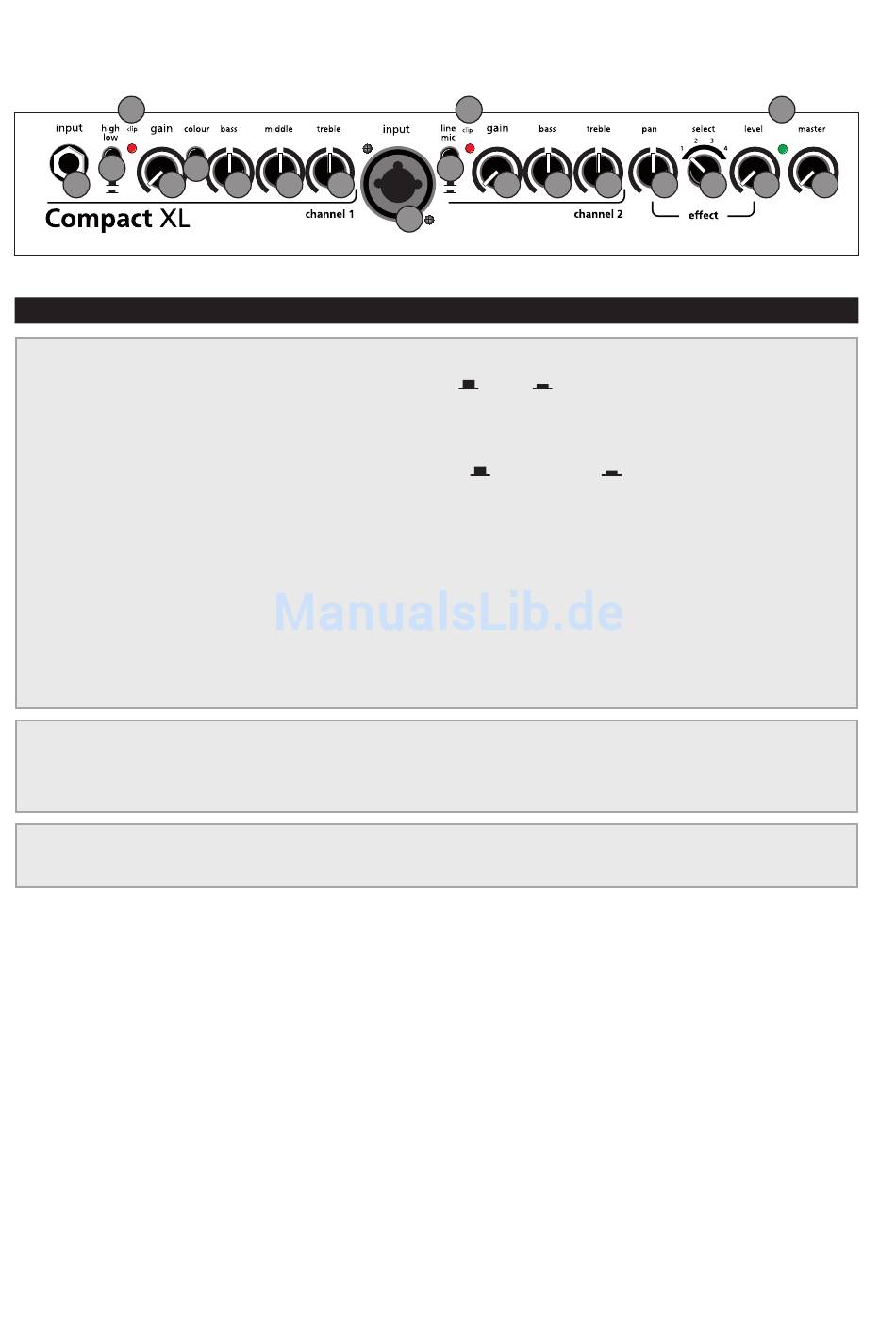

3.1 Front side

1) input (ch. 1) signal input, combo-socket for 6,3 mm mono jackplug
2) high/low input sensitivity switch, attenuator
3) clip
overload indicator
4) gain Input level control
7) colour tone colour filter activation switch
6) bass
bass frequency level control
7) middle middle frequency level controle
8) treble
treble frequency level control
9) input (ch. 2) signal input, combo-socket for 6,3 mm mono jackplug and
XLR-connectors (48V phantom power)
10) line/mic signal source selector switch: line (only via jackplug)
for instruments (pickup) and other line level sources,
mic (only via XLR-connector) for microphones
11) pan effect signal control
12) select
effect select control
13) level effect level control
14) power-led on/off status indicator
15) master
master level control
5
6 7 8
3
10
4 6
9
= off = on
= not active
8 11 12 13
= active
channels 1 + 2
mains & master
14
15
efx
13
