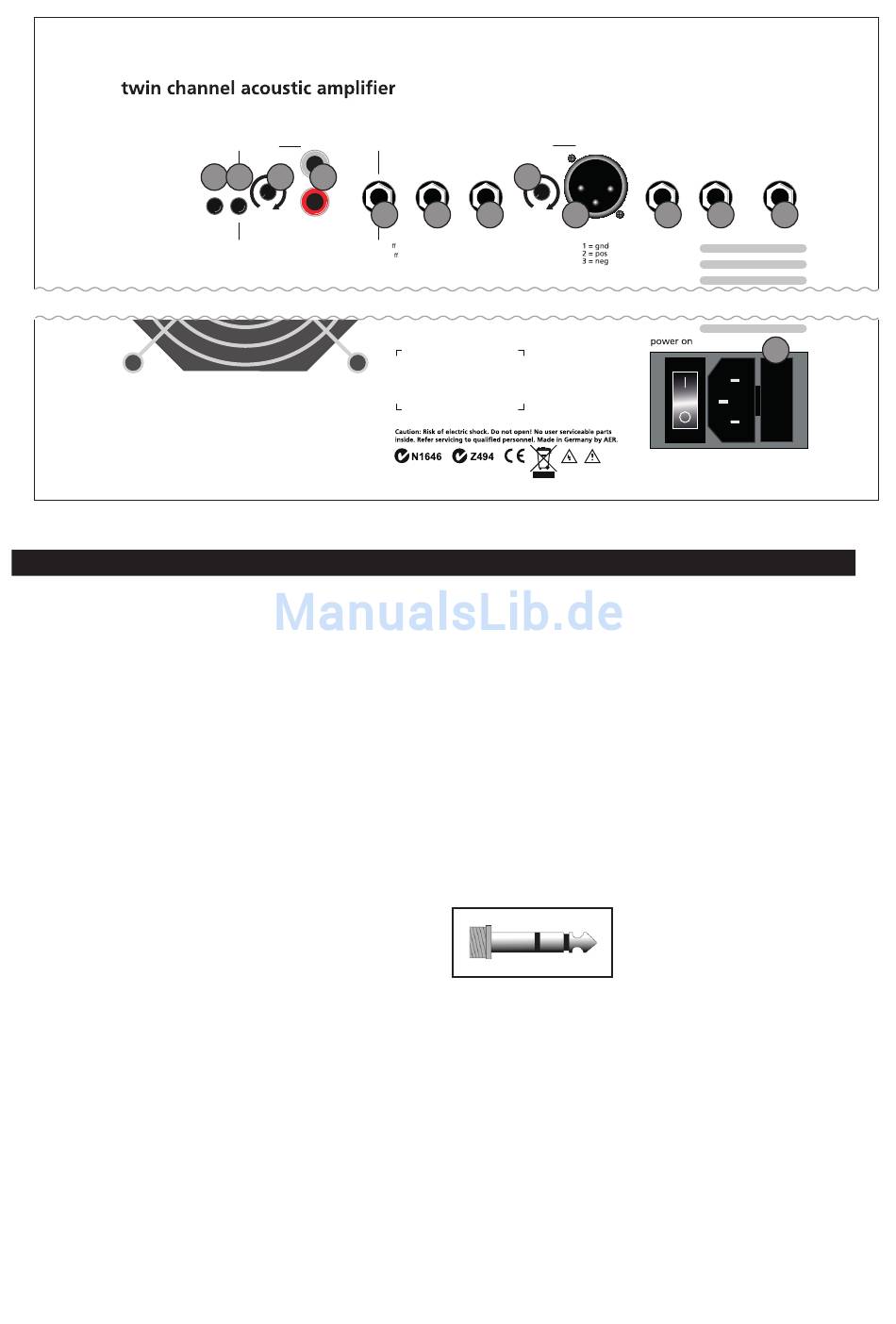

3.2 Rear side

1) gnd lift Disconnects signal ground from
protective ground, thereby elimina-
ting hum problems with so-called
ground loops. This button should
CXL_IB_120731
normally remain switched off (i.e.
not pressed).
2) 9 V
Activates the 9 V phantom power,
off = not pressed, see 5.4).
3) level Aux-Signal level control
4) aux in L/R: Auxiliary input for additional signal
sources like e.g. CD player. RCA sok-
kets (white = left channel, red = right
channel)
5) footswitch: connection to a double footswitch to
switch internal and external effect
on and off. (Tip = internal Effect ch.
3, Ring = internal Effect ch. 4 on/off ).
6.3 mm stereo jack socket.
6) tuner: Output to an external tuner. May
also be used when input is muted.
6,3 mm mono jack socket.
7) line out:
6,3 mm mono jack socket, preamp
output post master, f. eg. to connect
an additional cabinet
8) level: Signal level control at the DI output
9) DI-out: Balanced preamp output,
14
gnd 9 V level aux in footswitch
The Acoustic People
lift
L
R
phantom tip = int. e .
power ring = ext. e .
gnd 9 V level aux in footswitch
lift
L
1 2 3 4
R
phantom tip = int. e .
power ring = ext. e .
tuner line out level
tuner line out level
8
5 6 7
10) send:
11) return:
12) phones:
13) power on: Combined power switch with fuse
DI-out send return
DI-out send return
9 10 11
pre master, post EQ, with aux in and
effects. XLR socket.
Output to the input of an external
effects unit. 6,3 mm mono jack
socket.
Input for the output signals of an
external effects processor (left/right
channel with separate 6,3 mm mono
jack sockets).
Output for a stereo headphone set.
6,3 mm stereo jack socket.
!!! Never use mono jack
plugs, otherwise the amp
could be damaged !!!
holder and IEC mains socket
headphones
headphones
12
13
