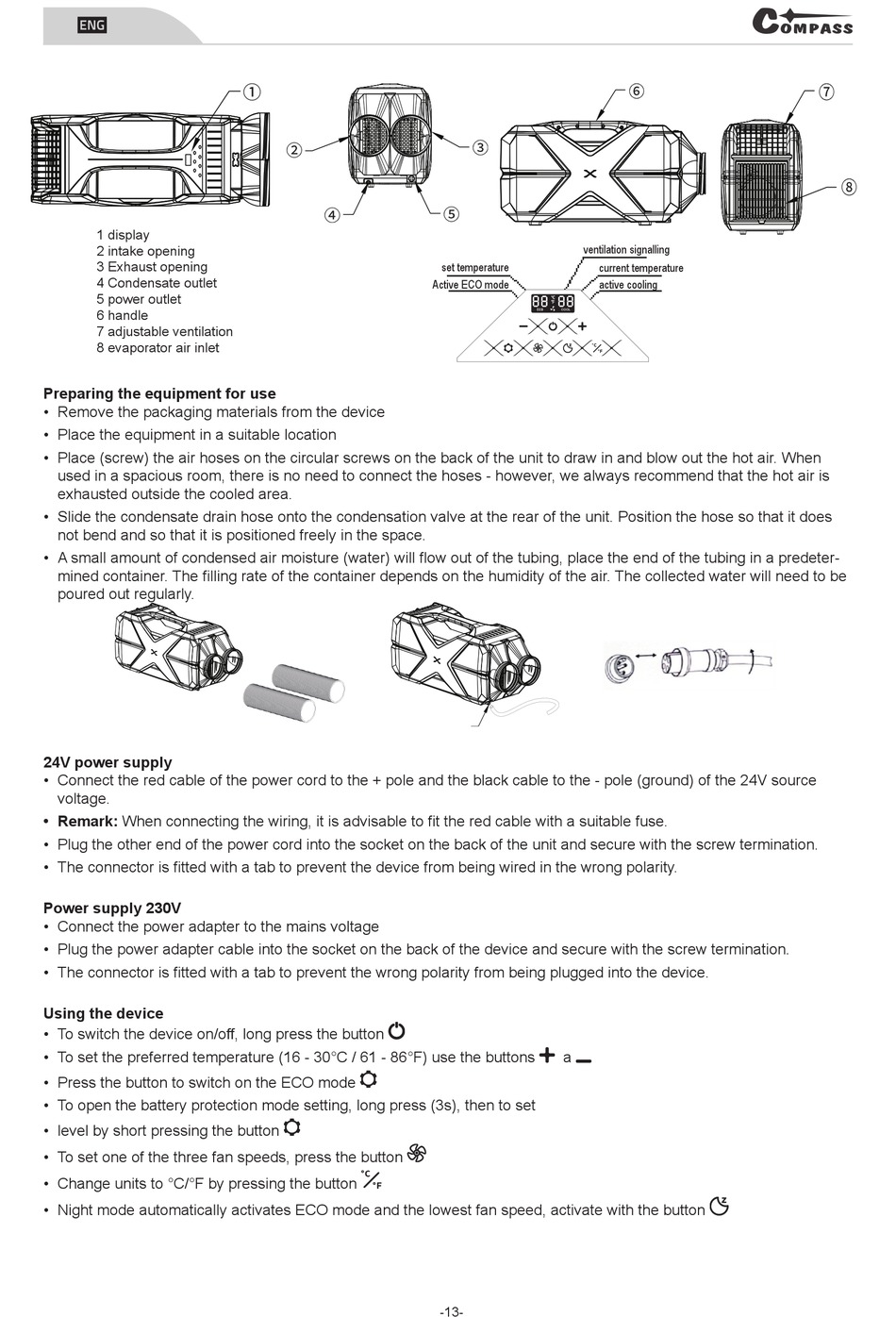

1 display
2 intake opening
3 Exhaust opening
4 Condensate outlet
5 power outlet
6 handle
7 adjustable ventilation
8 evaporator air inlet
Preparing the equipment for use
• Remove the packaging materials from the device
• Place the equipment in a suitable location
• Place (screw) the air hoses on the circular screws on the back of the unit to draw in and blow out the hot air. When
used in a spacious room, there is no need to connect the hoses - however, we always recommend that the hot air is
exhausted outside the cooled area.
• Slide the condensate drain hose onto the condensation valve at the rear of the unit. Position the hose so that it does
not bend and so that it is positioned freely in the space.
• A small amount of condensed air moisture (water) will flow out of the tubing, place the end of the tubing in a predeter-
mined container. The filling rate of the container depends on the humidity of the air. The collected water will need to be
poured out regularly.
24V power supply
• Connect the red cable of the power cord to the + pole and the black cable to the - pole (ground) of the 24V source
voltage.
• Remark: When connecting the wiring, it is advisable to fit the red cable with a suitable fuse.
• Plug the other end of the power cord into the socket on the back of the unit and secure with the screw termination.
• The connector is fitted with a tab to prevent the device from being wired in the wrong polarity.
Power supply 230V
• Connect the power adapter to the mains voltage
• Plug the power adapter cable into the socket on the back of the device and secure with the screw termination.
• The connector is fitted with a tab to prevent the wrong polarity from being plugged into the device.
Using the device
• To switch the device on/off, long press the button
• To set the preferred temperature (16 - 30°C / 61 - 86°F) use the buttons
• Press the button to switch on the ECO mode
• To open the battery protection mode setting, long press (3s), then to set
• level by short pressing the button
• To set one of the three fan speeds, press the button
• Change units to °C/°F by pressing the button
• Night mode automatically activates ECO mode and the lowest fan speed, activate with the button
ventilation signalling
set temperature
current temperature
Active ECO mode active cooling
a
