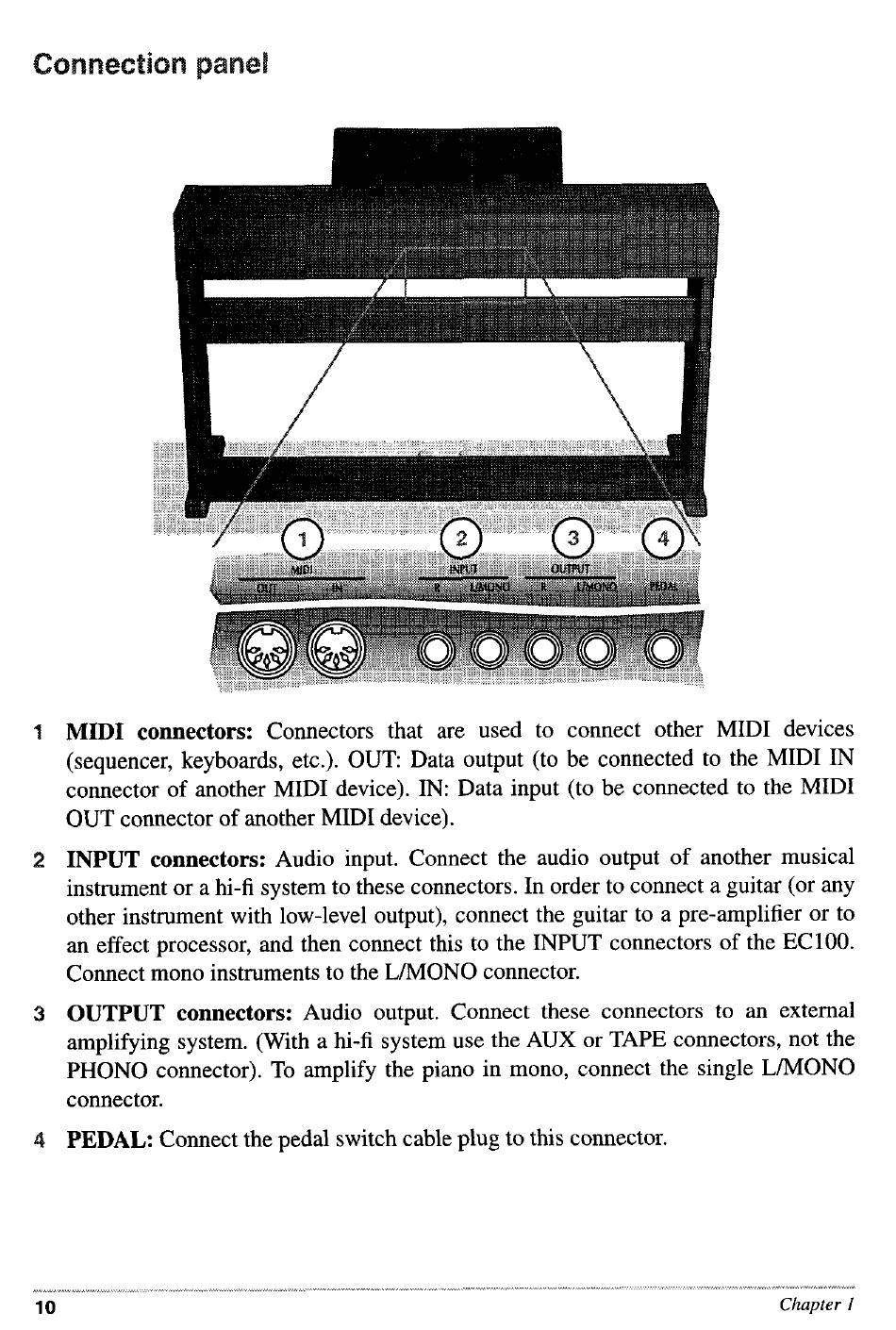

Connection
panel
MIDI
connectors:
1
r,
(sequence
keyboards, etc.).OUT:Dataoutput(to be connected t o theMIDI IN
connector of another MIDI device). IN: Data input (to be connectedto the MIDI
OUT connector of another MIDI device).
INPUT connectors: Audio input. Connect the audio output of another musical
2
instrument or a hi-fi systemto theseconnectors.In order to connecta guitar (or any
other instrument with low-level output), connect the guitar to a pre-amplifier or to
an effectprocessor, a nd thenconnectthis to the INPUT connectors of the ECIOO.
Connect mono instruments to the IJMONO
OUTPUT connectors: Audio output. Connect these connectors to an external
3
amplifying system. ( With a hi-fi systemusetheAUX or TAPE connectors, n ot the
PHONO connector). To amplify the piano in mono, connect the single L/MONO
connector.
PEDAL: Connectthe pedal switch cableplug to this connector.
4
10
Connectors that are used to connect other MIDI
connector.
devices
Chapter I
