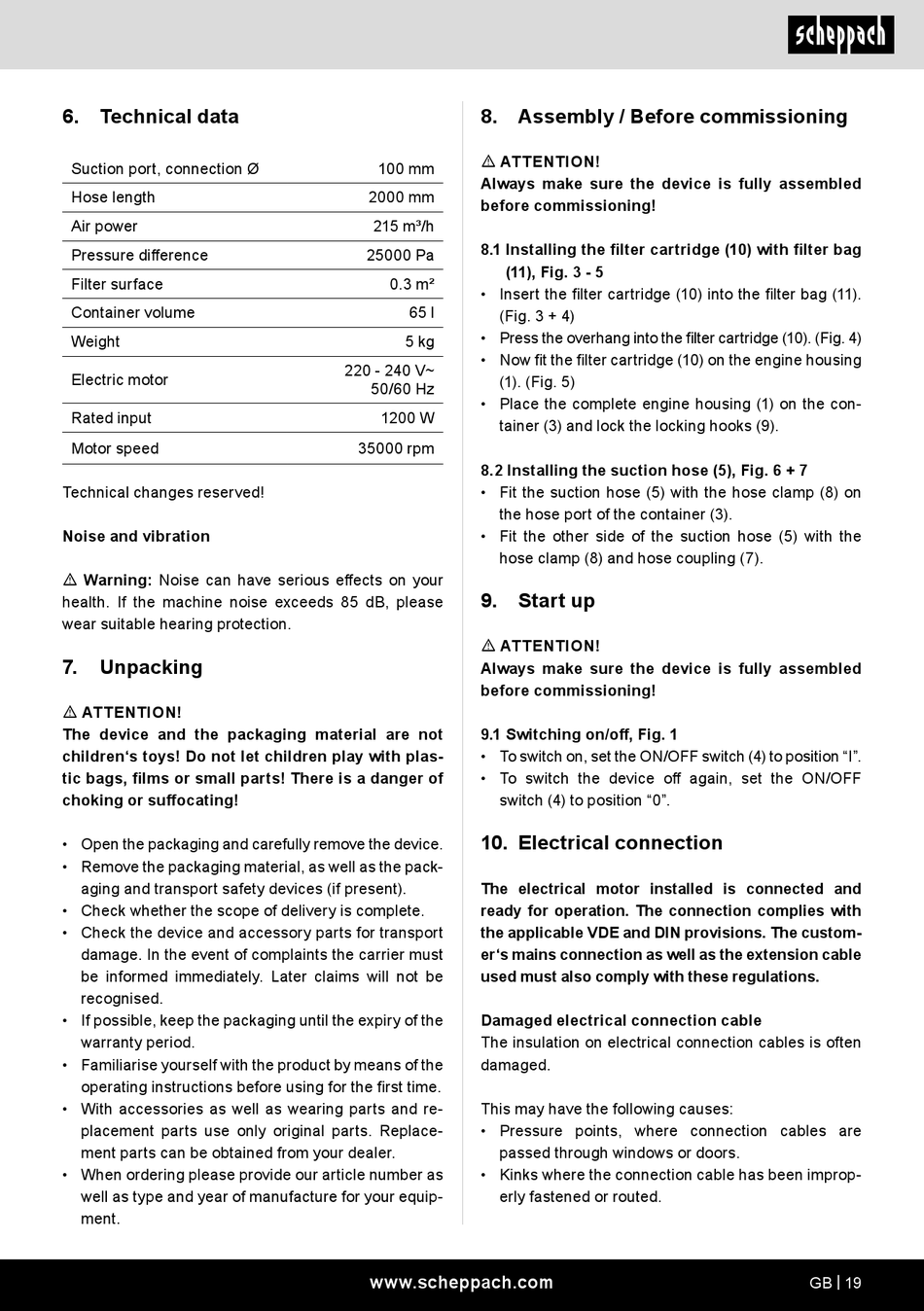

Scheppach DC100 Originalbetriebsanleitung Seite 19

6. Technical data
Suction port, connection Ø
Hose length
Air power
Pressure difference
Filter surface
Container volume
Weight
Electric motor
Rated input
Motor speed
Technical changes reserved!
Noise and vibration
m Warning: Noise can have serious effects on your
health. If the machine noise exceeds 85 dB, please
wear suitable hearing protection.
7. Unpacking
m ATTENTION!
The device and the packaging material are not
children's toys! Do not let children play with plas-
tic bags, films or small parts! There is a danger of
choking or suffocating!
• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the pack-
aging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport
damage. In the event of complaints the carrier must
be informed immediately. Later claims will not be
recognised.
• If possible, keep the packaging until the expiry of the
warranty period.
• Familiarise yourself with the product by means of the
operating instructions before using for the first time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Replace-
ment parts can be obtained from your dealer.
• When ordering please provide our article number as
well as type and year of manufacture for your equip-
ment.
8. Assembly / Before commissioning
m ATTENTION!
100 mm
Always make sure the device is fully assembled
2000 mm
before commissioning!
215 m³/h
8.1 Installing the filter cartridge (10) with filter bag
25000 Pa
(11), Fig. 3 - 5
0.3 m²
• Insert the filter cartridge (10) into the filter bag (11).
65 l
(Fig. 3 + 4)
• Press the overhang into the filter cartridge (10). (Fig. 4)
5 kg
• Now fit the filter cartridge (10) on the engine housing
220 - 240 V~
(1). (Fig. 5)
50/60 Hz
• Place the complete engine housing (1) on the con-
1200 W
tainer (3) and lock the locking hooks (9).
35000 rpm
8.2 Installing the suction hose (5), Fig. 6 + 7
• Fit the suction hose (5) with the hose clamp (8) on
the hose port of the container (3).
• Fit the other side of the suction hose (5) with the
hose clamp (8) and hose coupling (7).
9. Start up
m ATTENTION!
Always make sure the device is fully assembled
before commissioning!
9.1 Switching on/off, Fig. 1
• To switch on, set the ON/OFF switch (4) to position "I".
• To switch the device off again, set the ON/OFF
switch (4) to position "0".
10. Electrical connection
The electrical motor installed is connected and
ready for operation. The connection complies with
the applicable VDE and DIN provisions. The custom-
er's mains connection as well as the extension cable
used must also comply with these regulations.
Damaged electrical connection cable
The insulation on electrical connection cables is often
damaged.
This may have the following causes:
• Pressure points, where connection cables are
passed through windows or doors.
• Kinks where the connection cable has been improp-
erly fastened or routed.
