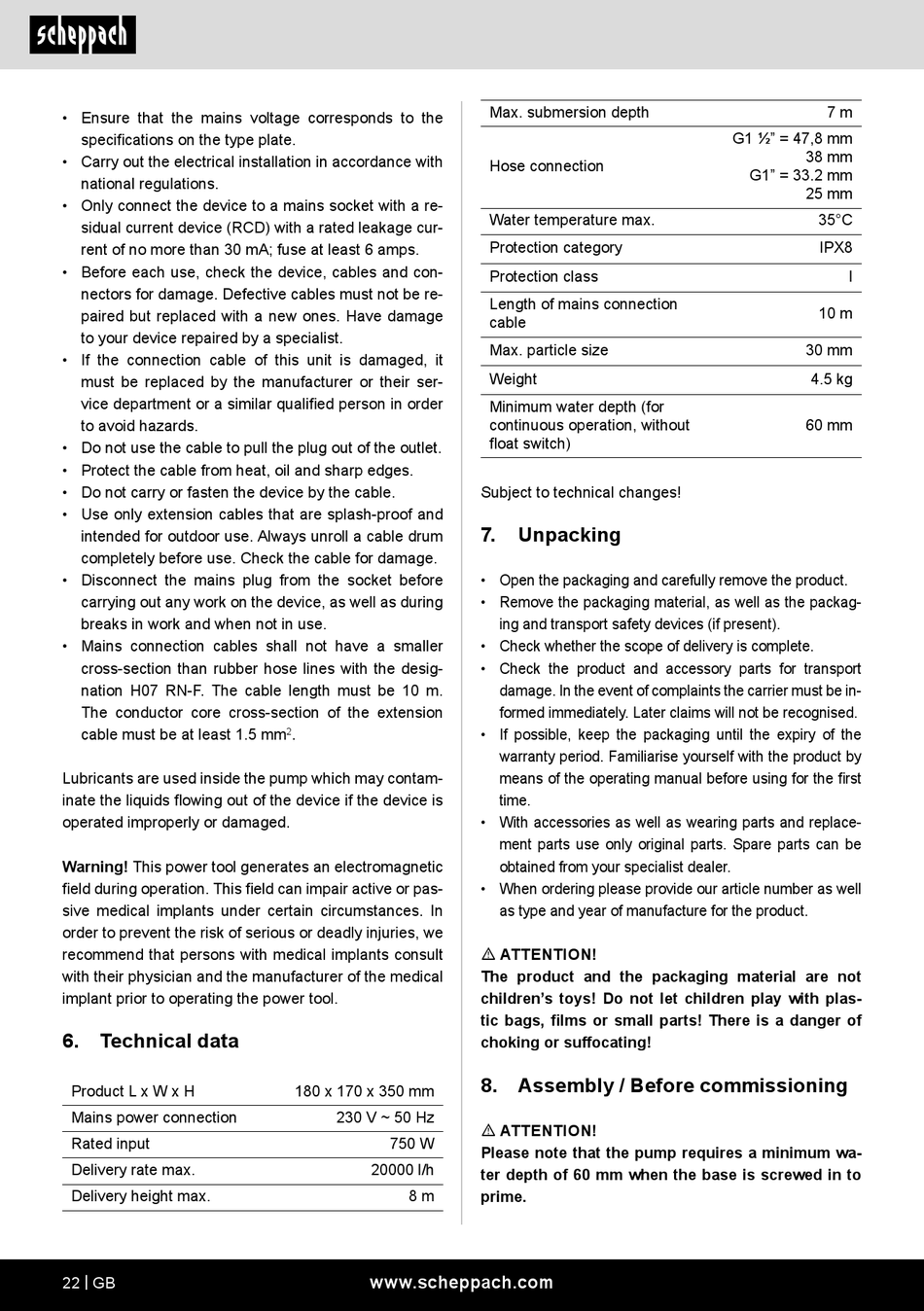

Scheppach 5909511901 Originalbetriebsanleitung Seite 22

• Ensure that the mains voltage corresponds to the
specifications on the type plate.
• Carry out the electrical installation in accordance with
national regulations.
• Only connect the device to a mains socket with a re-
sidual current device (RCD) with a rated leakage cur-
rent of no more than 30 mA; fuse at least 6 amps.
• Before each use, check the device, cables and con-
nectors for damage. Defective cables must not be re-
paired but replaced with a new ones. Have damage
to your device repaired by a specialist.
• If the connection cable of this unit is damaged, it
must be replaced by the manufacturer or their ser-
vice department or a similar qualified person in order
to avoid hazards.
• Do not use the cable to pull the plug out of the outlet.
• Protect the cable from heat, oil and sharp edges.
• Do not carry or fasten the device by the cable.
• Use only extension cables that are splash-proof and
intended for outdoor use. Always unroll a cable drum
completely before use. Check the cable for damage.
• Disconnect the mains plug from the socket before
carrying out any work on the device, as well as during
breaks in work and when not in use.
• Mains connection cables shall not have a smaller
cross-section than rubber hose lines with the desig-
nation H07 RN-F. The cable length must be 10 m.
The conductor core cross-section of the extension
cable must be at least 1.5 mm
Lubricants are used inside the pump which may contam-
inate the liquids flowing out of the device if the device is
operated improperly or damaged.
Warning! This power tool generates an electromagnetic
field during operation. This field can impair active or pas-
sive medical implants under certain circumstances. In
order to prevent the risk of serious or deadly injuries, we
recommend that persons with medical implants consult
with their physician and the manufacturer of the medical
implant prior to operating the power tool.
6. Technical data
Product L x W x H
Mains power connection
Rated input
Delivery rate max.
Delivery height max.
22 | GB
.
2
180 x 170 x 350 mm
230 V ~ 50 Hz
750 W
20000 l/h
8 m
www.scheppach.com
Max. submersion depth
Hose connection
Water temperature max.
Protection category
Protection class
Length of mains connection
cable
Max. particle size
Weight
Minimum water depth (for
continuous operation, without
float switch)
Subject to technical changes!
7. Unpacking
• Open the packaging and carefully remove the product.
• Remove the packaging material, as well as the packag-
ing and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for transport
damage. In the event of complaints the carrier must be in-
formed immediately. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the
warranty period. Familiarise yourself with the product by
means of the operating manual before using for the first
time.
• With accessories as well as wearing parts and replace-
ment parts use only original parts. Spare parts can be
obtained from your specialist dealer.
• When ordering please provide our article number as well
as type and year of manufacture for the product.
m ATTENTION!
The product and the packaging material are not
children's toys! Do not let children play with plas-
tic bags, films or small parts! There is a danger of
choking or suffocating!
8. Assembly / Before commissioning
m ATTENTION!
Please note that the pump requires a minimum wa-
ter depth of 60 mm when the base is screwed in to
prime.
7 m
G1 ½" = 47,8 mm
38 mm
G1" = 33.2 mm
25 mm
35°C
IPX8
I
10 m
30 mm
4.5 kg
60 mm
