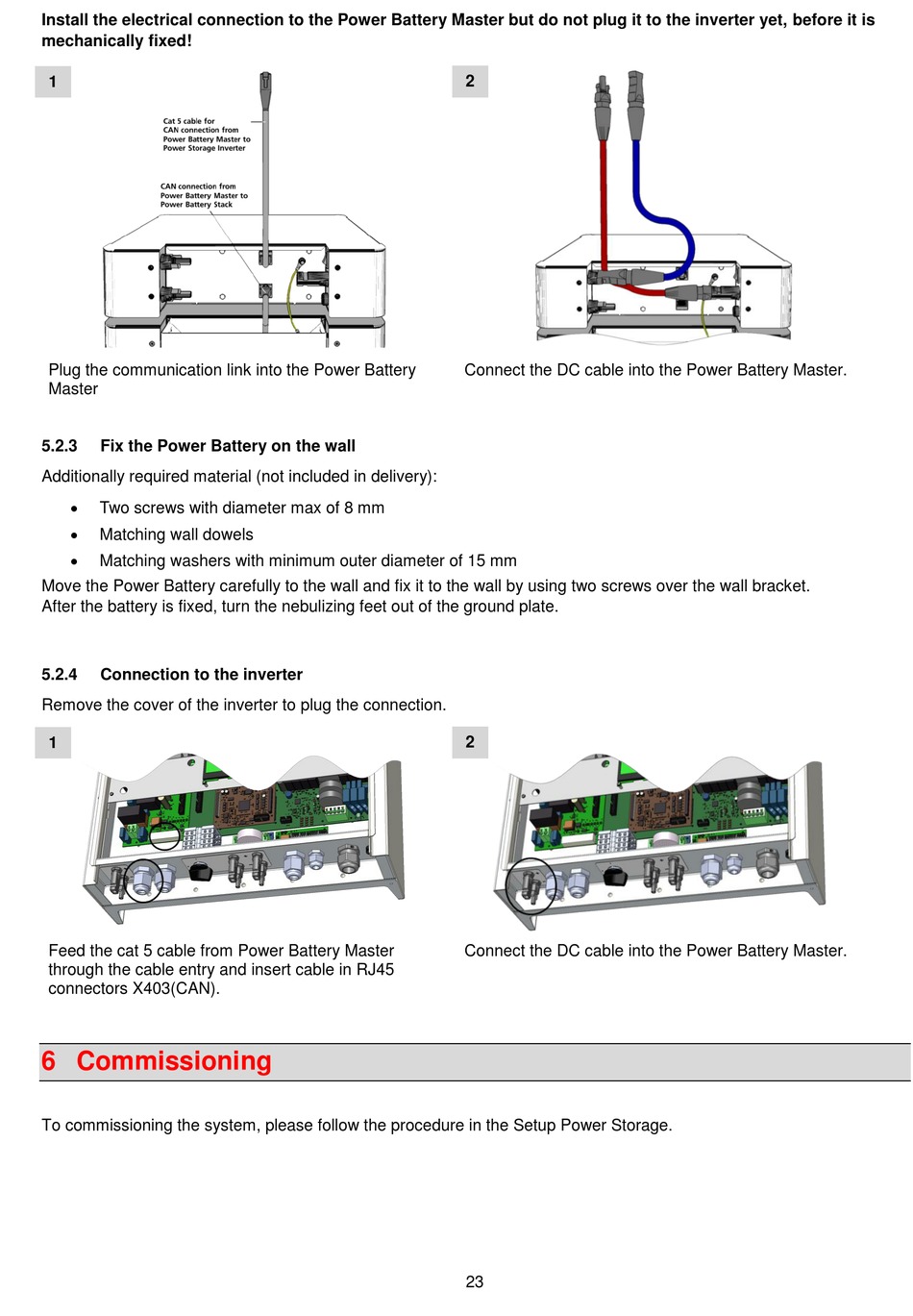

Install the electrical connection to the Power Battery Master but do not plug it to the inverter yet, before it is
mechanically fixed!
1
Plug the communication link into the Power Battery
Master
5.2.3 Fix the Power Battery on the wall
Additionally required material (not included in delivery):

Two screws with diameter max of 8 mm

Matching wall dowels

Matching washers with minimum outer diameter of 15 mm
Move the Power Battery carefully to the wall and fix it to the wall by using two screws over the wall bracket.
After the battery is fixed, turn the nebulizing feet out of the ground plate.
5.2.4 Connection to the inverter
Remove the cover of the inverter to plug the connection.
1
Feed the cat 5 cable from Power Battery Master
through the cable entry and insert cable in RJ45
connectors X403(CAN).
6 Commissioning
To commissioning the system, please follow the procedure in the Setup Power Storage.
2
Connect the DC cable into the Power Battery Master.
2
Connect the DC cable into the Power Battery Master.
23
