5 Electrical connection
5.1 Wiring Power Battery
In the following sections is described the wiring of the Power Battery:

5.1.1 Protective earth

5.1.2 Communication

5.1.3 DC wiring
Before starting wiring, make sure that the Power Battery Master On / Off switch is set to off "0".
After the Power Battery has been built up, the cabling on the back of the housing can be started. Pull away the battery
from the wall to get enough space for wiring.
5.1.1 Protective earth connection
The Power Battery must be connected to a protective conductor. For this purpose, a line from the potential equalization
rail to the housing of the lowest stack must be installed expertly.

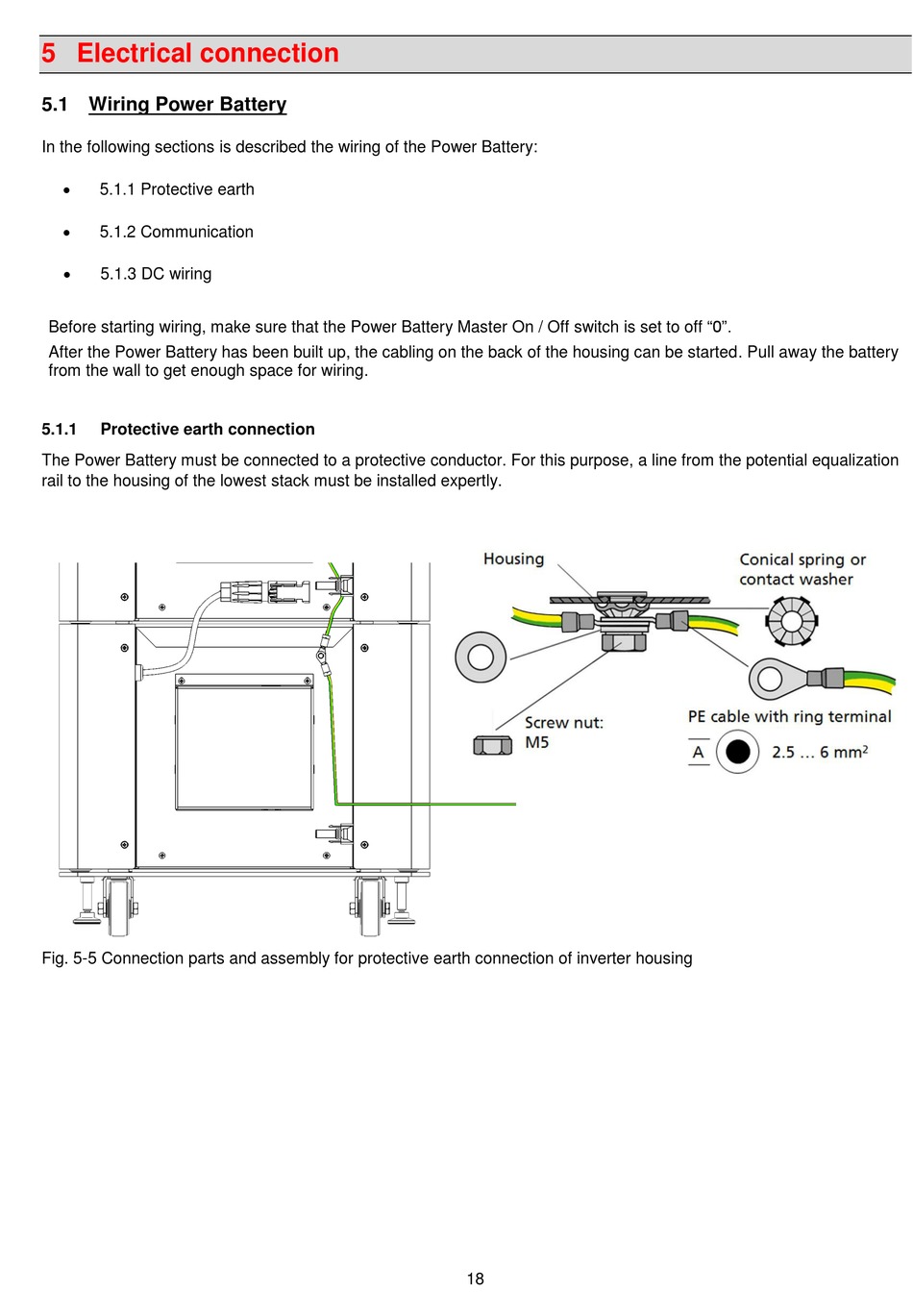

Fig. 5-5 Connection parts and assembly for protective earth connection of inverter housing
