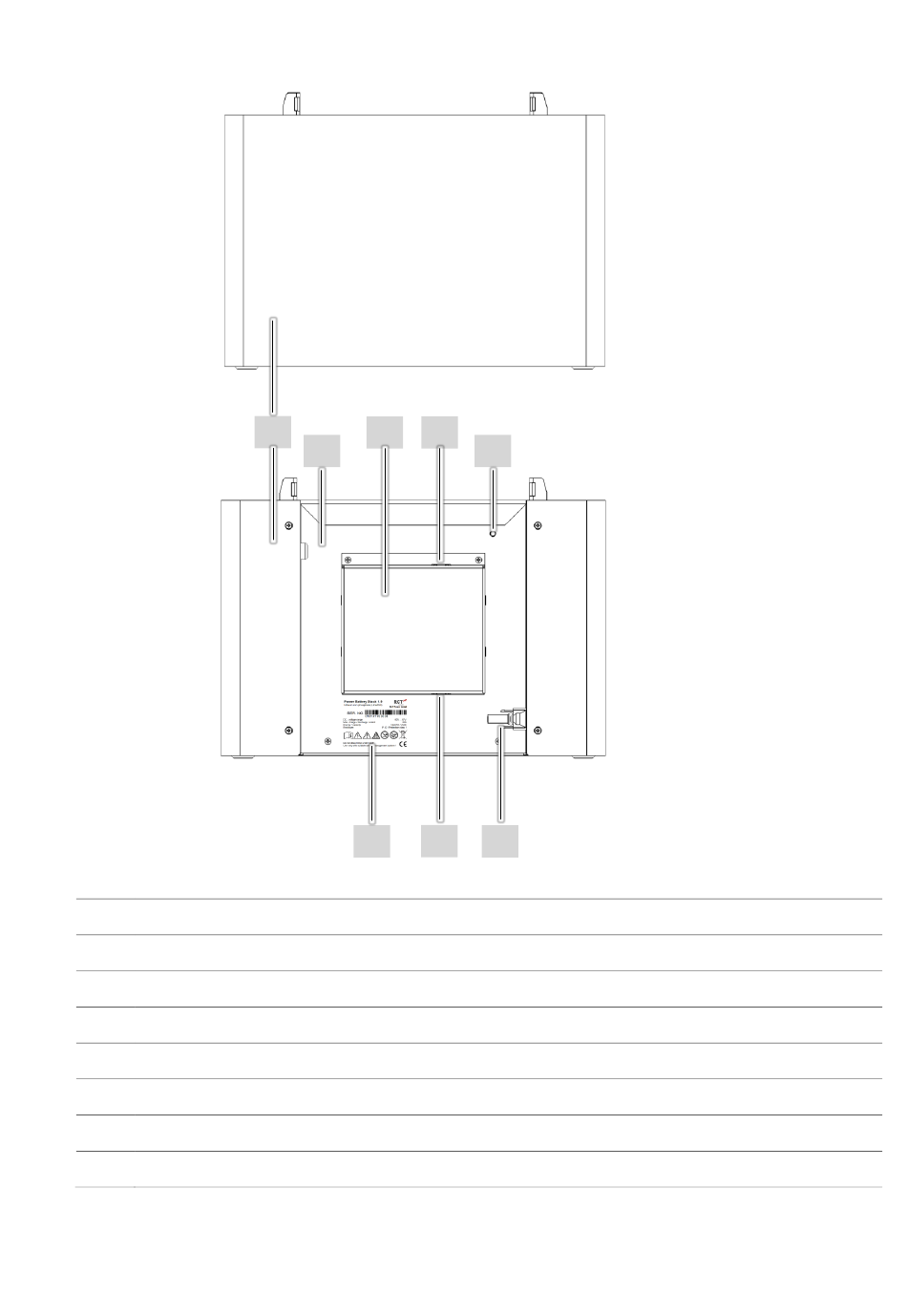

Power Battery Stack
Front view
Back view
Item Description
1 Power Battery Stack
2 DC connection (-), for the Power Battery Stack or Power Battery Master
3 Fuse cover
RJ45 – interface, communication to the Power Battery Stack or Power Battery Master
4
5 PE connection
6 DC connection (+), for the Power Battery Stack or Power Battery Master
RJ45 – interface, communication to the Power Battery Stack or for terminating resistor
7
8 Name plate
1
3 4
2
8 7
5
6
11
