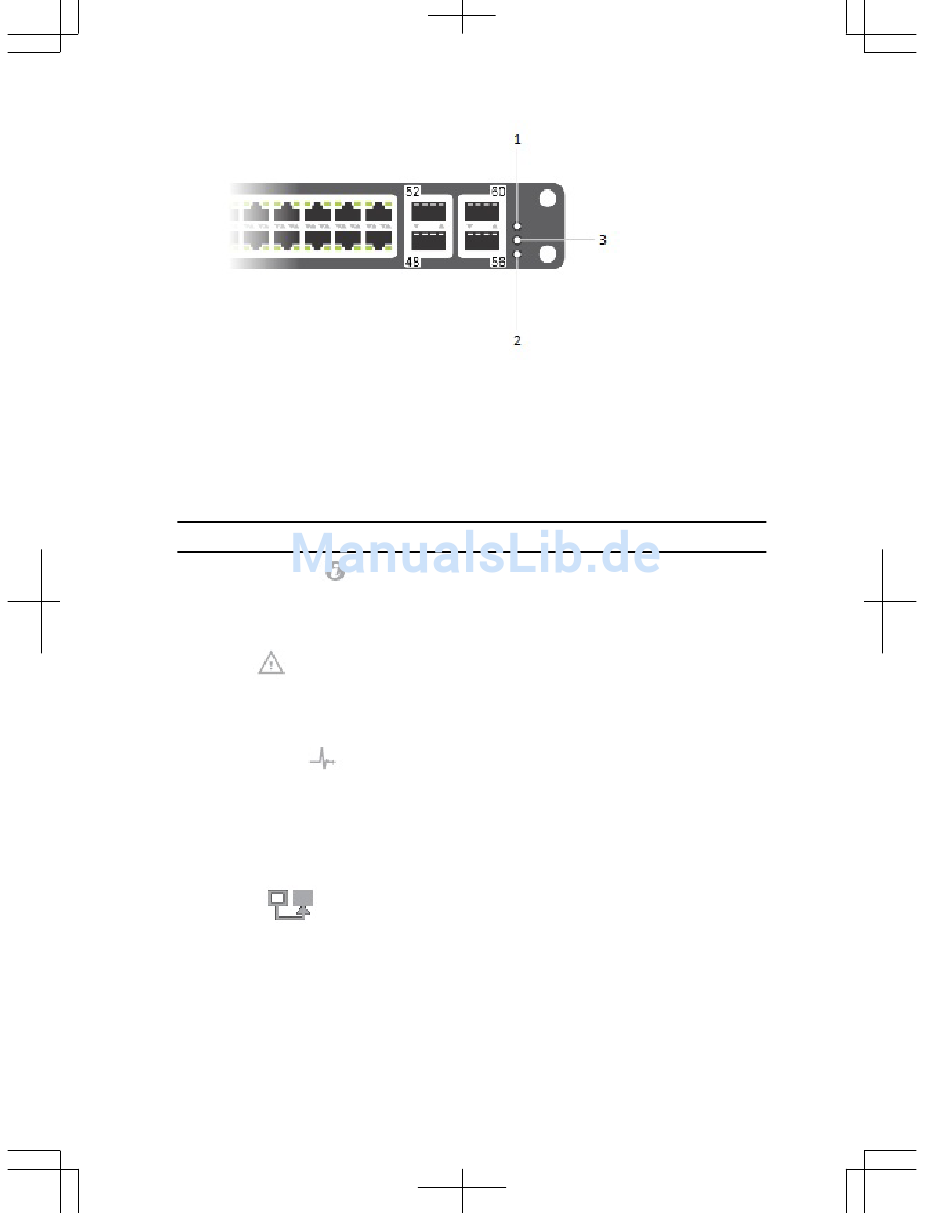

Figure 6. System LEDs (I/O Panel)
1. Locator beacon LED
2. Alarm LED
3. System status LED
Table 2. System LED Displays (Utility and I/O Panel)
Label
Locator beacon LED
Alarm LED
System status LED
Master LED
10
LED Color/Display
• Off
• Blue
• Off
• Amber solid
• Red solid
• Off
• Green solid
• Green blinking
• Amber solid
• Green solid
• Green blinking
• Off
Description
• No activity
• System beacon/
locator
• No alarm
• Minor alarm
• Critical alarm
• No power
• Normal operation
• System is booting
• System in card
problem state
• Switch in Stacking
Master mode OR
Switch in
Standalone mode
• Switch in Stacking
Standby mode
