• Management: Port 0
System Status
You can view S5000 status information in several ways, including LEDs and through the
CLI show commands and with simple network management protocol (SNMP).
For more information about these options, refer to the
Guide and FTOS Configuration Guide for the S5000 Switch .
As shown in the following figure, the S5000 includes LED displays on the I/O and Utility
side of the chassis. When the S5000 powers up or reloads, the status LED on the power
supplies are solid green.
The following table lists the LED definitions for the S5000 system.

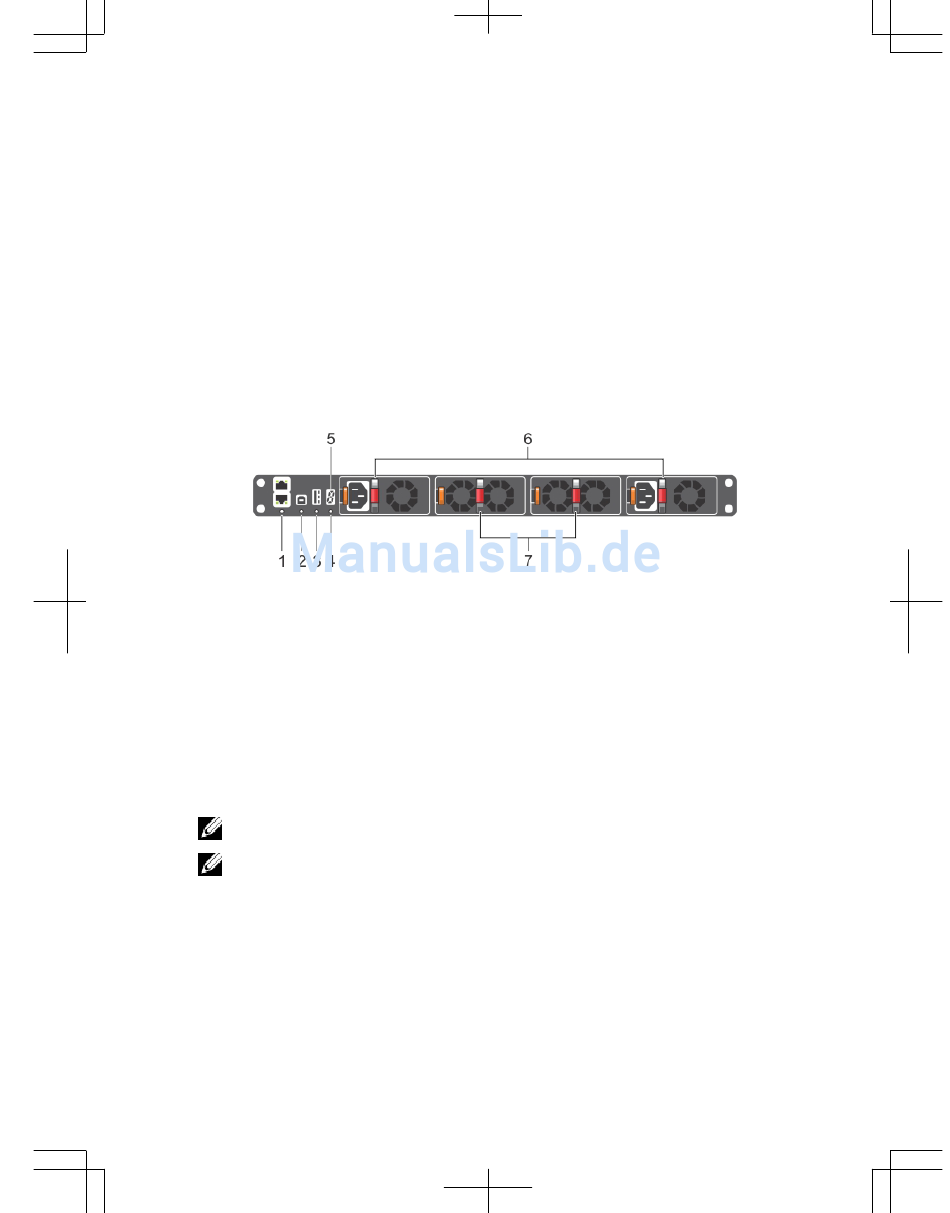

Figure 5. System LEDs (Utility Panel) (AC Power Supplies installed)
1. Locator beacon LED
2. Alarm LED
3. System status LED
4. Master LED
5. Seven–segment display to identify
Stack ID
NOTE: For AC PSUs, an illuminated translucent handle indicates the power status.
NOTE: For DC PSUs, the power status LED is on the upper-left corner.
FTOS Command Line Reference
6. PSU status LED
7. Fan status LED
9
