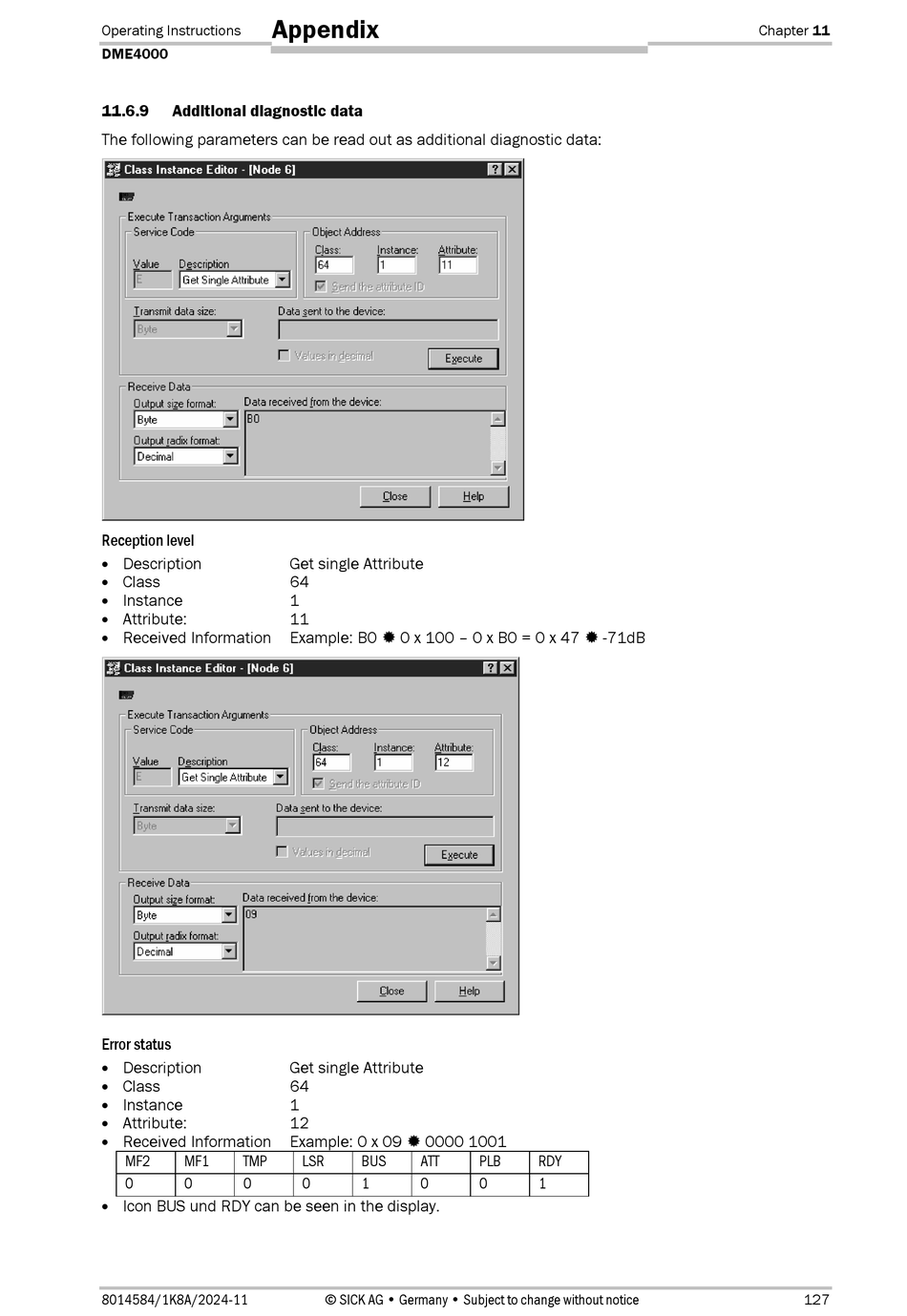

11.6.9 Additional diagnostic data
The following parameters can be read out as additional diagnostic data:
Reception level
 Description
 Class
 Instance
 Attribute:
 Received Information
Error status
 Description
 Class
 Instance
 Attribute:
 Received Information
MF2 MF1 TMP
0 0 0
 Icon BUS und RDY can be seen in the display.
8014584/1K8A/2024-11
Get single Attribute
64
1
11
Example: B0  0 x 100 – 0 x B0 = 0 x 47  -71dB
Get single Attribute
64
1
12
Example: 0 x 09  0000 1001
LSR BUS ATT
0 1 0
