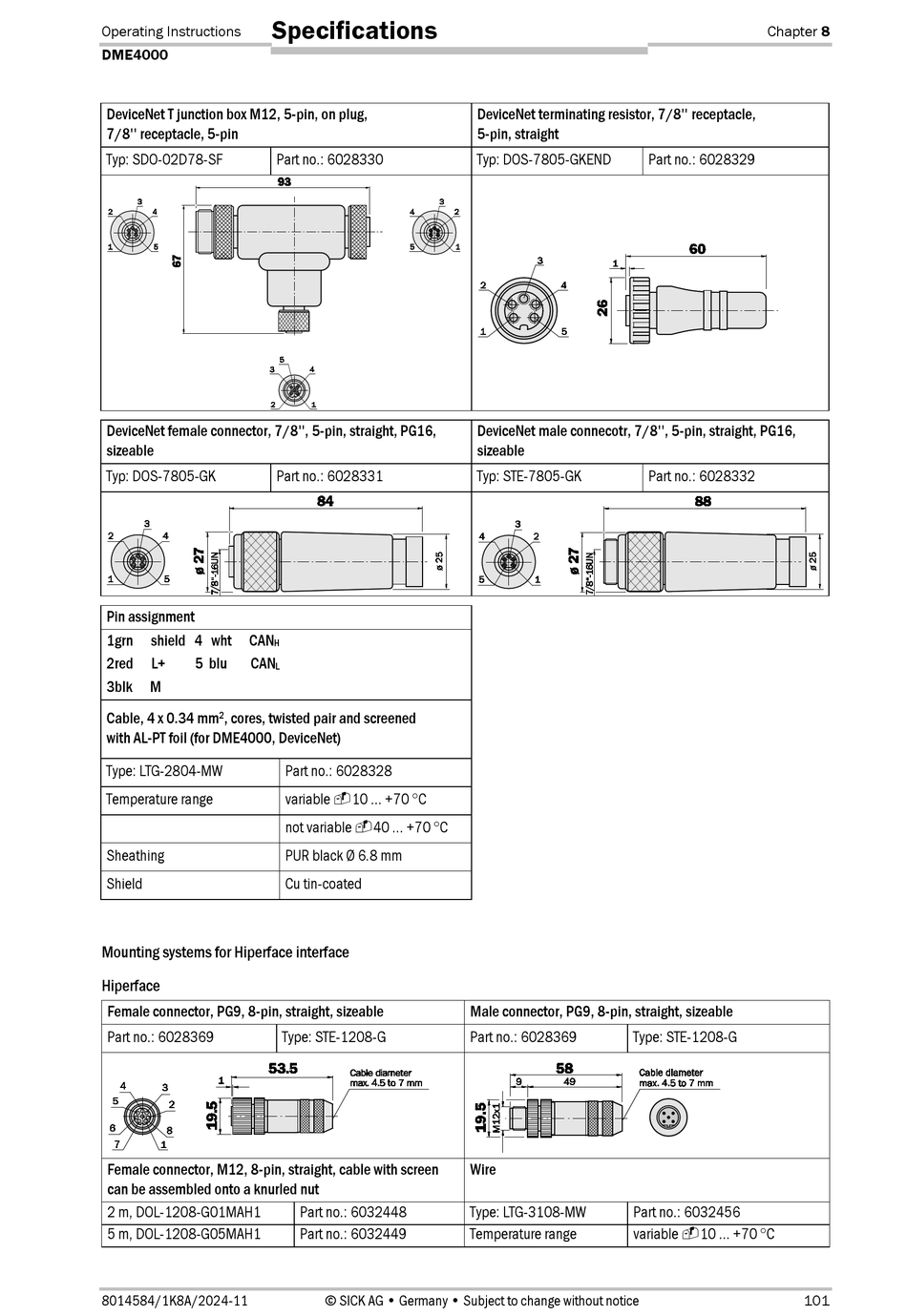

Specifications
Operating Instructions
DME4000
DeviceNet T junction box M12, 5-pin, on plug,
7/8'' receptacle, 5-pin
Typ: SDO-02D78-SF
DeviceNet female connector, 7/8'', 5-pin, straight, PG16,
sizeable
Typ: DOS-7805-GK
Pin assignment
1grn shield 4 wht CAN
2red L+ 5 blu CAN
3blk M
Cable, 4 x 0.34 mm , cores, twisted pair and screened
2
with AL-PT foil (for DME4000, DeviceNet)
Type: LTG-2804-MW
Temperature range
Sheathing
Shield
Mounting systems for Hiperface interface
Hiperface
Female connector, PG9, 8-pin, straight, sizeable
Part no.: 6028369
Female connector, M12, 8-pin, straight, cable with screen
can be assembled onto a knurled nut
2 m, DOL-1208-G01MAH1
5 m, DOL-1208-G05MAH1
8014584/1K8A/2024-11
Part no.: 6028330
Part no.: 6028331
H
L
Part no.: 6028328
variable 10 ... +70 °C
not variable 40 ... +70 °C
PUR black Ø 6.8 mm
Cu tin-coated
Type: STE-1208-G
Part no.: 6032448
Part no.: 6032449
© SICK AG • Germany • Subject to change without notice
DeviceNet terminating resistor, 7/8'' receptacle,
5-pin, straight
Typ: DOS-7805-GKEND
DeviceNet male connecotr, 7/8'', 5-pin, straight, PG16,
sizeable
Typ: STE-7805-GK
Male connector, PG9, 8-pin, straight, sizeable
Part no.: 6028369 Type: STE-1208-G
Wire
Type: LTG-3108-MW Part no.: 6032456
Temperature range variable 10 ... +70 °C
Chapter 8
Part no.: 6028329
Part no.: 6028332
