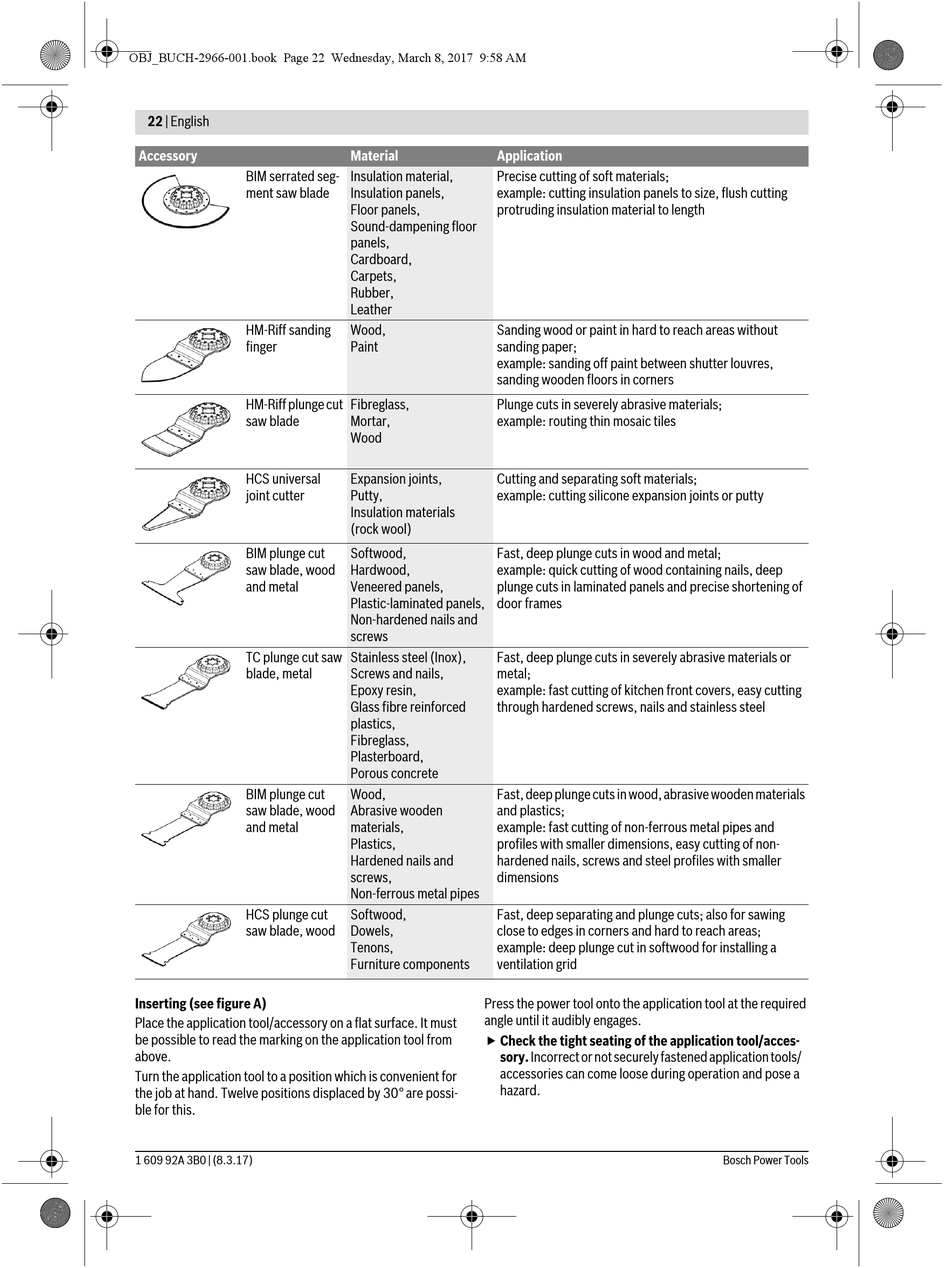

22 | English
Accessory
BIM serrated seg-
ment saw blade
HM-Riff sanding
finger
HM-Riff plunge cut
saw blade
HCS universal
joint cutter
BIM plunge cut
saw blade, wood
and metal
TC plunge cut saw
blade, metal
BIM plunge cut
saw blade, wood
and metal
HCS plunge cut
saw blade, wood
Inserting (see figure A)
Place the application tool/accessory on a flat surface. It must
be possible to read the marking on the application tool from
above.
Turn the application tool to a position which is convenient for
the job at hand. Twelve positions displaced by 30° are possi-
ble for this.
1 609 92A 3B0 | (8.3.17)
Material Application
Insulation material, Precise cutting of soft materials;
Insulation panels, example: cutting insulation panels to size, flush cutting
Floor panels, protruding insulation material to length
Sound-dampening floor
panels,
Cardboard,
Carpets,
Rubber,
Leather
Wood, Sanding wood or paint in hard to reach areas without
Paint sanding paper;
example: sanding off paint between shutter louvres,
sanding wooden floors in corners
Fibreglass, Plunge cuts in severely abrasive materials;
Mortar, example: routing thin mosaic tiles
Wood
Expansion joints, Cutting and separating soft materials;
Putty, example: cutting silicone expansion joints or putty
Insulation materials
(rock wool)
Softwood, Fast, deep plunge cuts in wood and metal;
Hardwood, example: quick cutting of wood containing nails, deep
Veneered panels, plunge cuts in laminated panels and precise shortening of
Plastic-laminated panels, door frames
Non-hardened nails and
screws
Stainless steel (Inox), Fast, deep plunge cuts in severely abrasive materials or
Screws and nails, metal;
Epoxy resin, example: fast cutting of kitchen front covers, easy cutting
Glass fibre reinforced through hardened screws, nails and stainless steel
plastics,
Fibreglass,
Plasterboard,
Porous concrete
Wood, Fast, deep plunge cuts in wood, abrasive wooden materials
Abrasive wooden and plastics;
materials, example: fast cutting of non-ferrous metal pipes and
Plastics, profiles with smaller dimensions, easy cutting of non-
Hardened nails and hardened nails, screws and steel profiles with smaller
screws, dimensions
Non-ferrous metal pipes
Softwood, Fast, deep separating and plunge cuts; also for sawing
Dowels, close to edges in corners and hard to reach areas;
Tenons, example: deep plunge cut in softwood for installing a
Furniture components ventilation grid
Press the power tool onto the application tool at the required
angle until it audibly engages.
 Check the tight seating of the application tool/acces-
sory. Incorrect or not securely fastened application tools/
accessories can come loose during operation and pose a
hazard.
