Set up TTC450 Pro

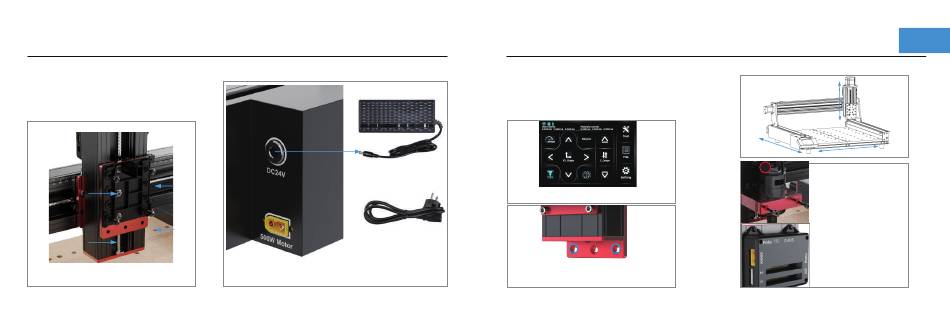

Step 4 ： Installation of the motor housing base and access to the power supply
Required parts
Power adapter*1
Power cable*1
M5X8 screw*4
M5X8 screws through the Motor protection cover to
lock the Z-axis assembly.
Power adapter
Power cable
500W spindle input
Connecting the Power adapter to the Power cable and pluging into the
socket of the machine to supply power to the machine.
8
Set up TTC450 Pro
Step 5 ： 775 motor chuck installation
Required parts
775 spindle motor*1
M5X12 screw*2
775 motor chuck*1 Cup head M5X12 screw*2
3.0 hexagonal wrench
4.0 hexagonal wrench
Y+
Z+
X- X+
Z-
Y-
Click the X+axis to move to the right.Click Z-axis to
move down.
M5X12 screwS lock the motor chuck through the
other two holes of the Z-axis assembly.
Z+
Z-
Y+
X+
X-
Y-
Red dot connected to red
cable.
Place the 775 spindle
motor in the motor chuck
Cup head M5X12 screws
lock the rear through the
front of the motor chuck.
9
