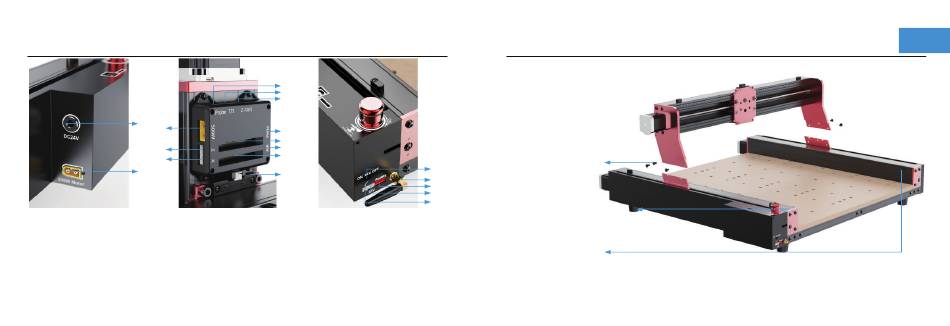

Know Your CNC Machine
①
③
④
⑤
②
1. DC power interface
7. 775 Spindle motor output
2. 500W spindle input
8. Z-axis motor output
3. 500W spindle output
9. Power input port (M)
4. Z-axis Limit signal input
10. Signal output port (S)
5. X-axis Limit signal input
11. Laser output （PWM）
6. Probe signal input
12. Air pump output
⑥
⑦
⑧
⑪
⑨
⑫
⑩
⑬
13. X-axis Limit switch
14. 24V Switch
15. 24V Output
16. 24V Triggering signal
17. A-axis
18. Antenna
4
Set up TTC450 Pro
Step 1 ： Installing X-axis components
Required parts
X-axis components
M5X8 screw *6
3.0 hexagonal wrench
4.0 hexagonal wrench
Insert the X-axis assembly into
the base and lock it with M5X8
⑭
screws.
⑱
⑰
⑯
⑮
Calibrate the Y-axis (Note: This machine
has been calibrated before leaving the factory).
Install the two screws back with
the XY axis not perpendicular,
and move the Y axis on both
sides to hit the screws to
complete the calibration.
5
EN
