10.
Attach the second clip now (Fig. 10).
11.
Use the guide bar to push the LED
strip against the contacts up to the stop
(Fig. 11).
12.
Take care of the correct polarity of the con-
tacts. In the picture below, the marking
misfits (Fig. 12). In this case, the marking
on the corner connector does not have to
match those of the LED strip, as long as the
polarity of both LED strips match.
The plus terminals (1 + 5), B-terminals
(2 + 6), R-terminals (3 + 7) and
G-terminals (4 + 8) of both LED strips
match.

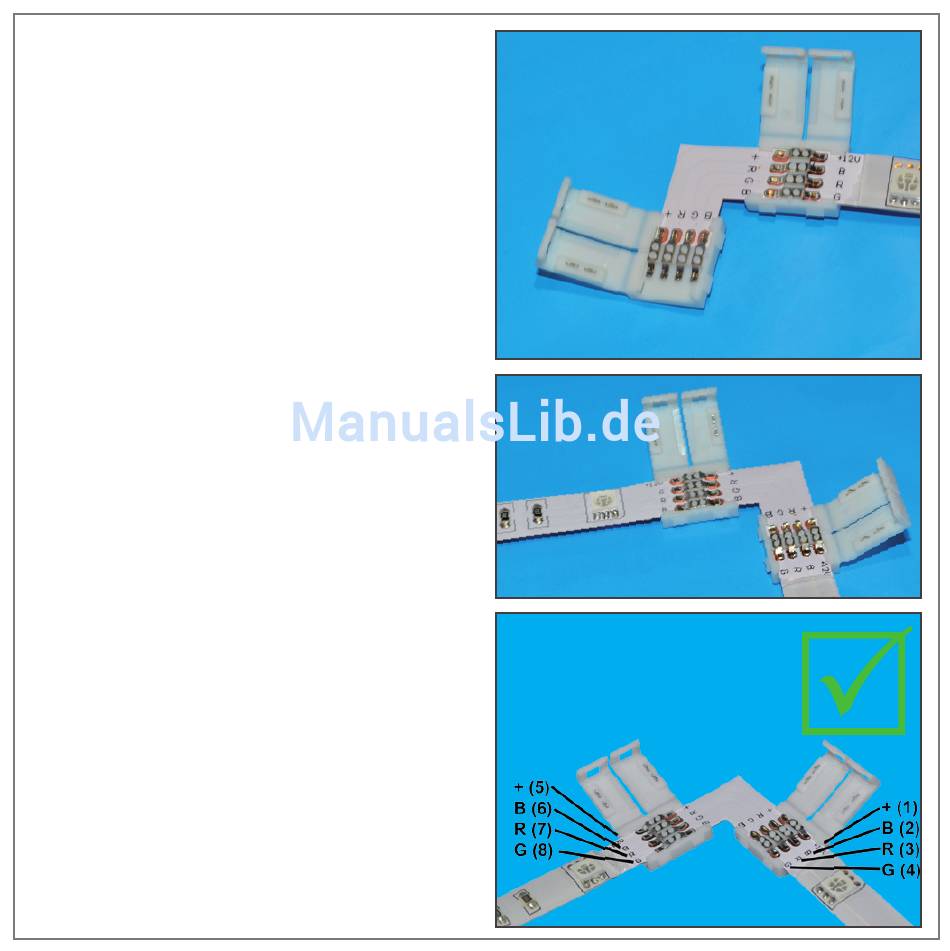

fig. 10
fig. 11
fig. 12
