About this Document
This document is intended for specialists in installation
and maintenance (administrators, maintenance staff, ser-
vice personnel, owners/operators).
It contains information on safe and proper installation.
The original language of this document is German.
Other Documents
Number
Document
Instruction Manual – CTBA & CTBP
P2543BA
Programming Manual – S169263
P2544PM
CTBA & CTBP
Assembly Instruction – Tool Holder
P2614MA
Stay Alive
2
Software Requirements
•
Bootloader: S169353-101 or later
•
Controller: e.g., S168813-1.9 or later
•
Measurement card: S169263-212 or later
3
Product Description
Tool
Module
Order no.
Angle head
ACA00-R2-G1-LD4
ACASA-R2-G1-LD4
ACA00-R3-G1-LD4
Pistol
ACP00-R2-G1-LD4
ACPSA-R2-G1-LD4
ACP00-R3-G1-LD4
TAG
The TAG module allows CellTek tools to be located within
a position system.
Gyroscope
In the final tightening phase (from Threshold Torque) of an
angle controlled rundown any angle movement of the tool
will result in a deviation to the targeted angle. This angle
movement of the tool can be reduced by using a support.
The gyroscope included in this module, measures the an-
gle movement in this phase and corrects the shut-off angle
which makes the support unnecessary.
Stay Alive
In conjunction with a tool holder (optional for angle or pis-
tol), the adapter Stay Alive prevents the tool from falling
into standby mode.
Apex Tool Group

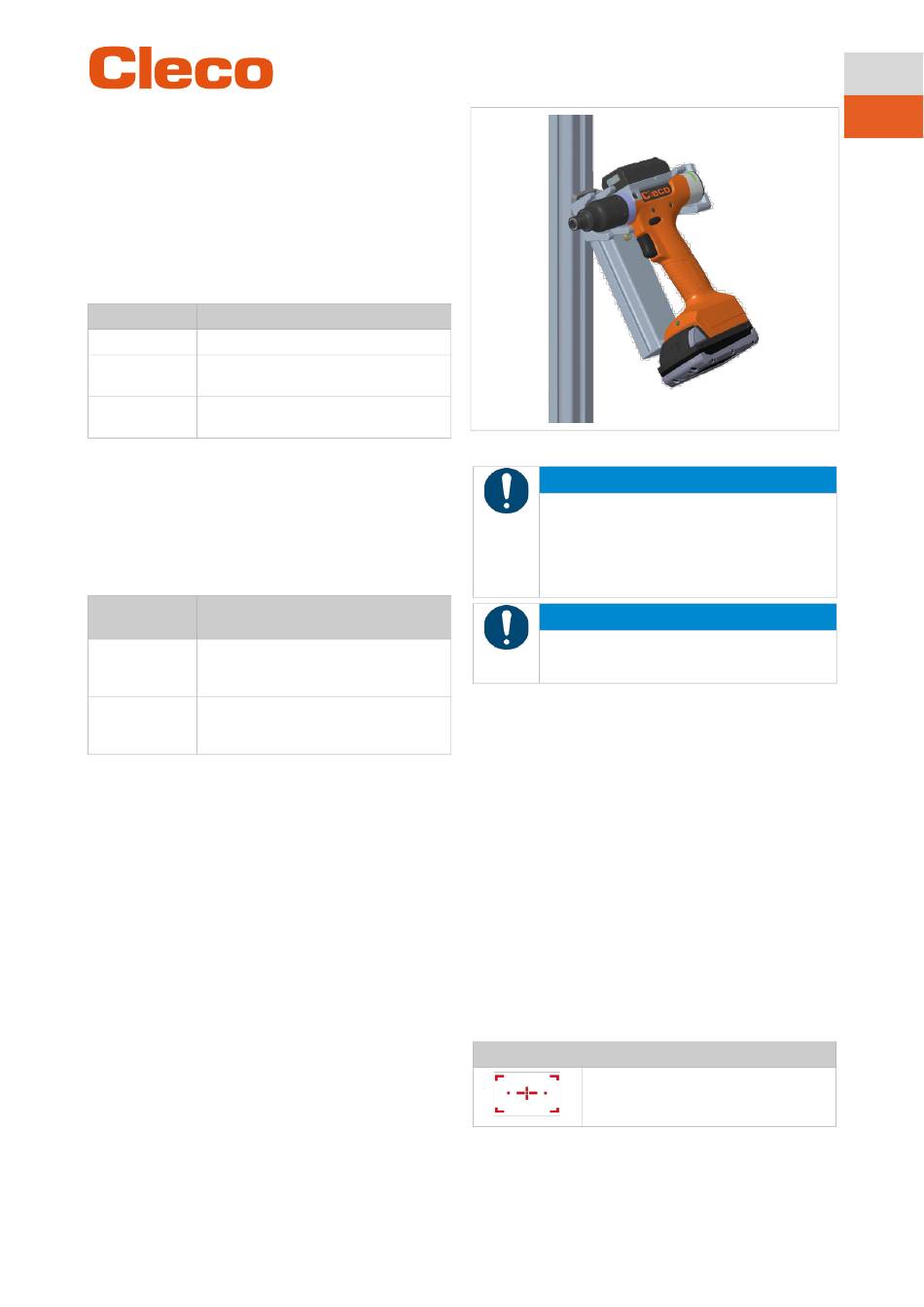

Fig. 2-1: Tool holder + pistol tool shown
2D-Reader
The 2D-Reader allows you to scan the following barcodes:
Codabar
CODE-11
CODE-128
CODE-39
CODE-93
EAN-13
EAN-8
Interleaved 2of5 UPC-E
Trioptic
CODE-39
2D Reader: R2
P2574MA | REV D l 2025-03
Note
Malfunction
Only supply power to accessory with a suita-
ble tool holder including the appropriate
power supply unit.
► Angle - tool tray Order no. S600421
► Pistol - tool tray Order no. S600420
Note
Malfunction
Do not apply any external voltage to the con-
nection pins.
MSI
2D Aztec
RSS-14
2D Chinese Sensi-
ble
RSS-Expanded
2D Codablock A
RSS Limited
2D Codablock F
RSS Limited
2D Datamatrix
UCC/EAN-128
2D PDF417
UPC-A
2D PDF417
UPC-E1
Laser crosshair
Laser protection class 2 according to
IEC/EN 60825-1
2
