DESCRIPTION OF THE DEVICE
Features
Pixel mapping panel with 8 W QCL LEDs
• Modular LED matrix 5 x 5 for pixel mapping applications
• Equipped with 25 x 8 W QCL (quadcolor LED) with RGBW colors
• Each LED can be controlled individually
• Flicker-free projection
• Ideal for rental companies, stage/fair construction and fixed installation
• 3, 5, 8, 9 or 100 DMX channel mode selectable
• Super-light and durable aluminum construction
• Seamless, modular display concept allows the build-up of large areas
• Locking possibility at the mounting bracket
• Functions: RGBW color mixture, automatic color change, built-in programs - also over several panels,
strobe effect with variable speed, dimmer, sound-control, Master/Slave operation
• Sound-control via built-in microphone; sensitivity adjustable
• DMX-controlled operation or stand-alone operation with Master/Slave function
• Addressing and setting via control board with graphic LC display and four operating buttons
• Switch-mode power supply for operation between 100 and 240 Volts
• Power connection via Neutrik PowerCon jack and included power cable
• Feed-through output allows to power up to 8 devices
• DMX control via every standard DMX controller

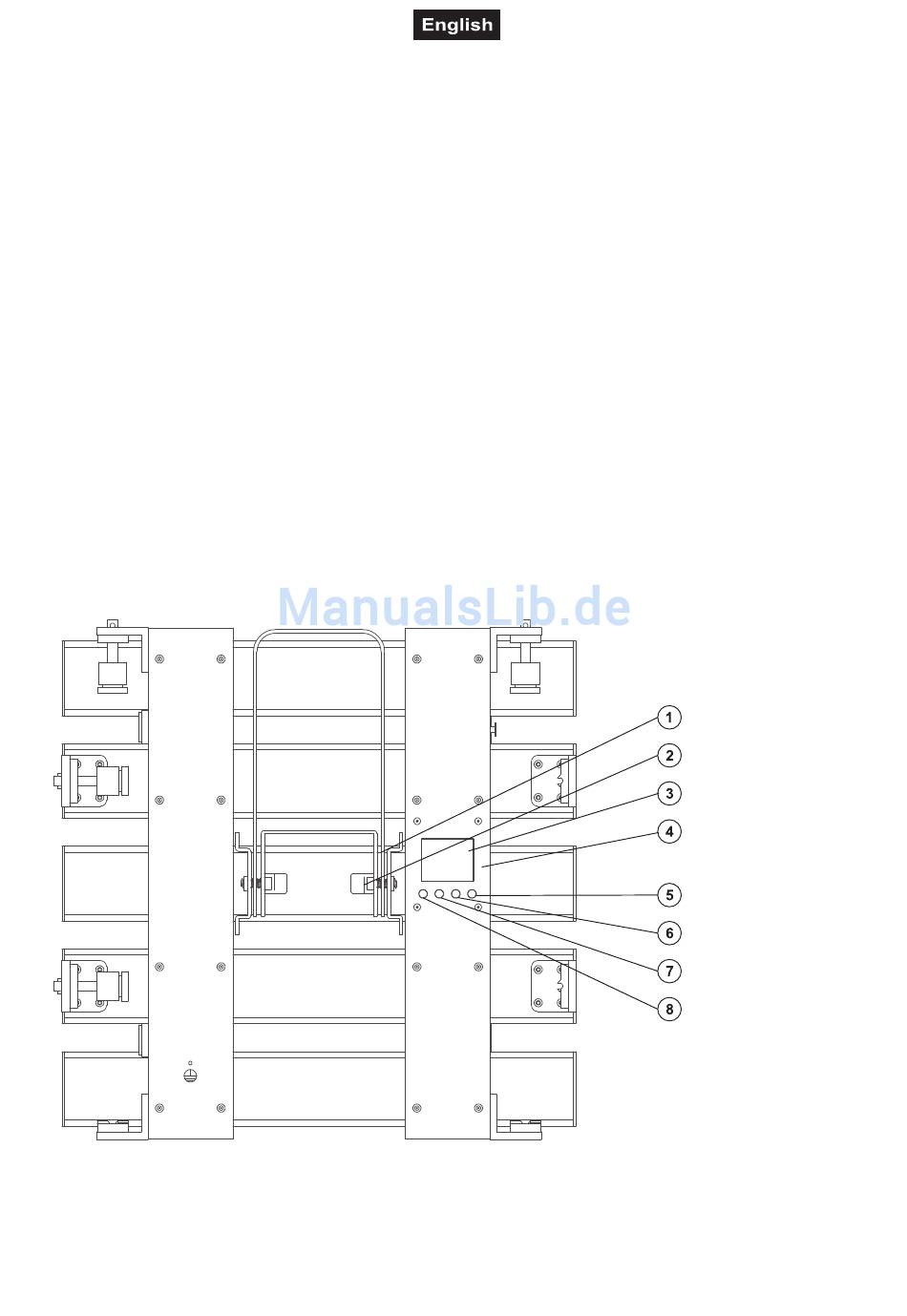

Overview
27/42
(1) Mounting
bracket
(2) Fixation screw
(3) Display
(4) Control Board
(5) Enter button
(6) Down button
(7) Up button
(8) Menu button
00090598, Version 1.0
