Alignment of several devices via quick lock bolts
When connecting several devices, please consider the load-bearing capacity of your trussing and please
follow these instructions.

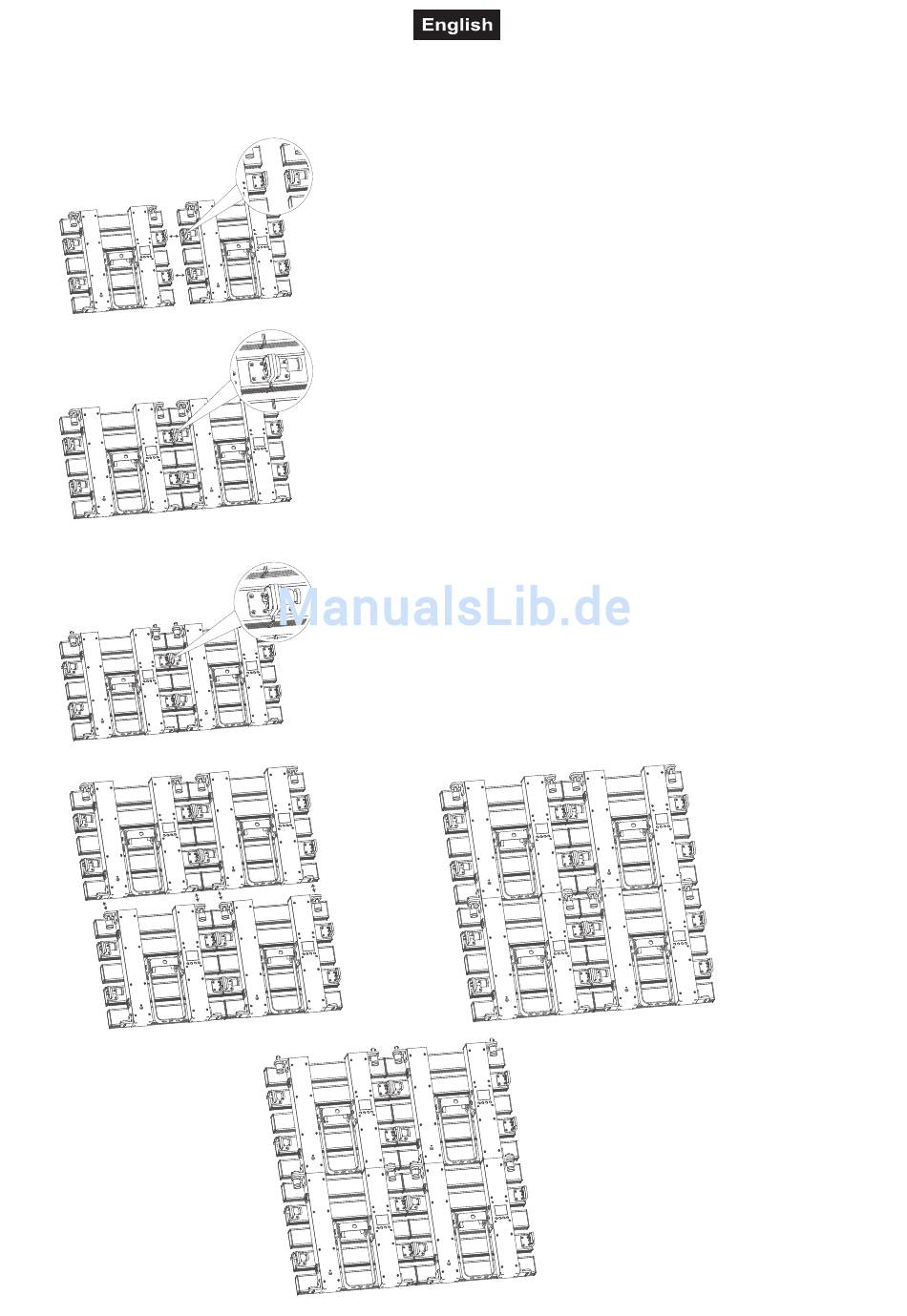

Arrange the devices in the desired sequence. Each device has two
quick lock bolts on each of the four sides, with which other devices can
be connected either horizontally or vertically. Align the devices so that
the locking mechanisms lie parallel to the devices to be connected.
Insert the quick lock bolt into the hole and turn the quick lock bolt 90°.
Fix the puzzles additionally by tightening the nuts on the connection
bolts.
Please pay attention that all quick lock bolts on each connected device
are locked and fully screwed on.
Please note: The connectors on the sides are used solely for
alignment of the device and have no load-bearing function.
Mount each device with the mounting-bracket using an appropriate
clamp. For overhead use, always install an appropriate safety bond for
each device.
