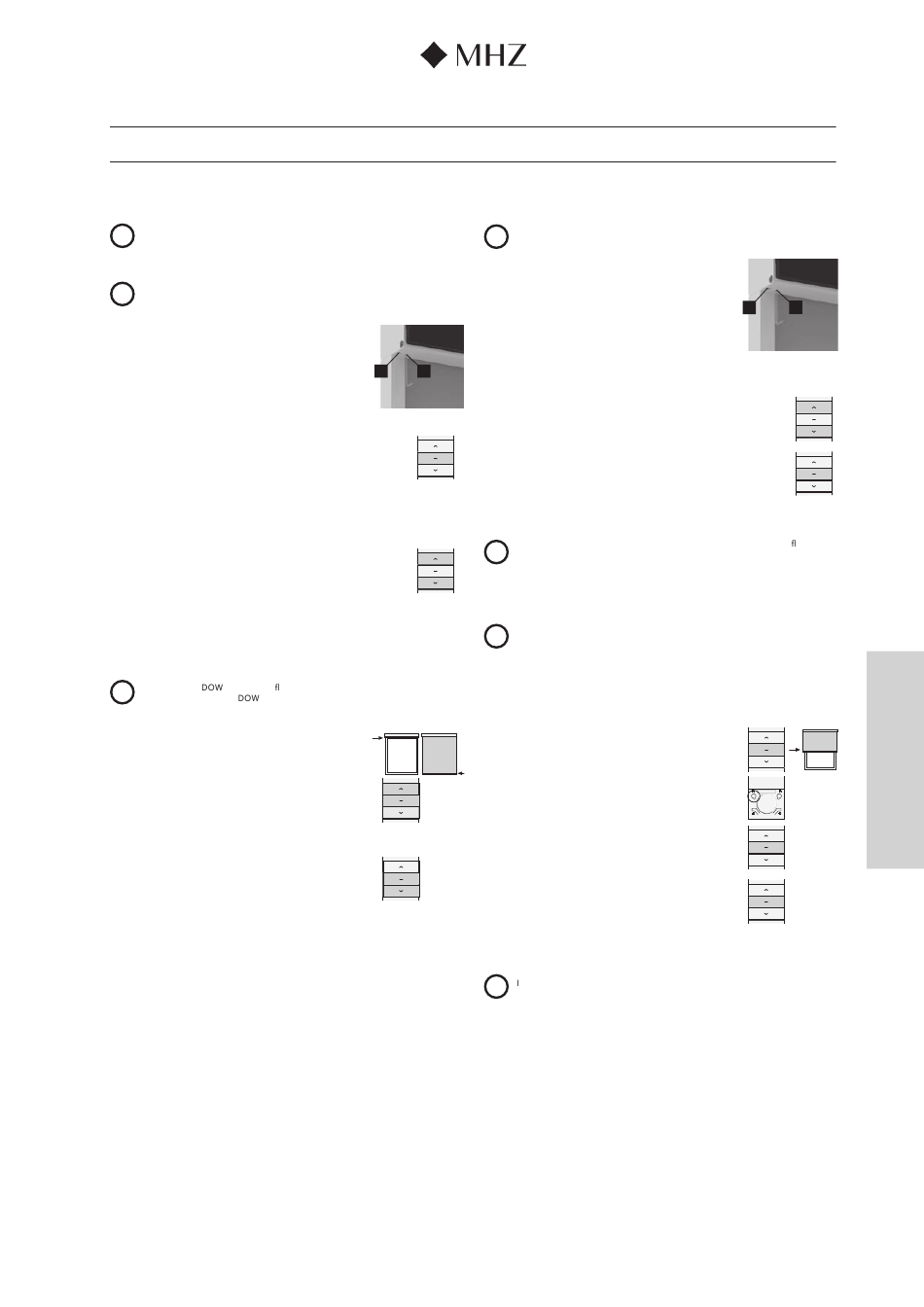

MHZ SOLIX FIX Montage- Und Bedienungsanleitung Seite 47

Setting instructions for bi-directional radio-controlled motors
3.1 Teaching in the drive and first remote control
(will usually have been completed at the factory)
i No longer than 6 seconds may pass between two inputs.
Otherwise, the inputs are deleted. The input must then be made again.
When teaching in a multi-channel radio transmitter, use the P1 buttons on the
i
radio transmitter to switch to the channel you want to assign for this drive before
you perform the next step.
1. Press and hold the setting button on the drive for approx.
2 seconds.
=> The roller blind confirms this button press by moving
briefly once + with a long beep.
A setting button
B emergency charging socket for charging the battery
2. Press the STOP button on the new radio transmitter for approx. 2
seconds.
=> The roller blind confirms this button press by moving briefly twice
+ beeping three times
3.2 Changing the direction of rotation when the end positions
have not been set
1. Press the UP and DOWN
buttons on the radio transmitter simultaneously for 2 seconds.
=> The roller blind confirms this button press by moving briefly once
3.3 End position (top/bottom)
i Press the UP or N button brie y: the blind moves in defined increments
Press and hold the UP or N button: the blind moves continuously
1. Move the roller blind to the top end position you want
2. Press the UP and STOP buttons on the radio transmitter
simultaneously for 2 seconds.
=> The roller blind confirms this button press by moving
briefly twice + beeping three times.
3. Use the UP and DOWN buttons to move the roller blind
to the bottom end position you want.
4. Press the DOWN and STOP buttons on the radio
transmitter simultaneously for 2 seconds.
=> The roller blind confirms this button press by moving
briefly twice + beeping three times.
Edition 10.2024
Subject to technical changes I
3.4 Changing the drive's direction of rotation when the end
positions are set
i
To change the direction of rotation again, repeat step 1.
1. Press and hold the setting button on the drive.
=> The roller blind confirms this button press by moving
briefly three times
at intervals of approx. 4 seconds + beeping three times
when the setting button is released.
B
A
3.5 Setting the pinpoint operating mode (optional)
O b er e
E ndl a ge
1. Press the UP and STOP buttons on the radio transmitter simulta-
Unter e
E ndl a ge neously for 5 seconds.
=> The roller blind confirms this button press by moving briefly once
2. Press the STOP button
=> The roller blind confirms this button press by moving briefly
once + with a long beep.
Pinpoint operation is performed by pressing the UP/DOWN button brie y.
i
Press and hold the UP/DOWN button to move the blind continuously.
Repeat step 3.5 to delete the setting.
3.6 Teaching in a 3rd blind position (optional)
O b er e
E ndl a ge
You have an option to assign an extra stop position for the roller blind.
i
Unter e
This position must be somewhere in between the two end positions.
E ndl a ge
1. When using hand-held radio transmitters, remove the cover on the back to make
your adjustments.
Caution: Press down gently on the battery to keep it in place (making contact).
After making your adjustments, slide the cover back on.
2. Press the UP or DOWN button to move the roller blind
to p
to the position you want.
end b o tto m
Press the STOP button
p o s itio n end
p o s itio n
3. Press the P2 button on the radio transmitter once
=> The roller blind confirms this button press by beeping
+ moving briefly once.
4. Press the STOP button on the radio transmitter once
=> The roller blind confirms this button press by beeping
+ moving briefly once.
5. Press the STOP button on the radio transmitter once
=> The roller blind confirms this button press by moving
briefly twice + beeping three times.
Press the STOP button for 3 seconds. The blind moves to the 3rd blind position.
i
f pinpoint mode has been set, the blind first moves to the bottom end position
and then to the 3rd blind position. To delete the 3rd blind position, repeat steps
3. to 5.
Solix Fix exterior roller blinds
B A
O b er e
E ndl a ge
Unter e
E ndl a ge
O b er e
E ndl a ge
Unter e
E ndl a ge
STOP
P2
