Solix Fix exterior roller blinds Solix Fix exterior roller blinds

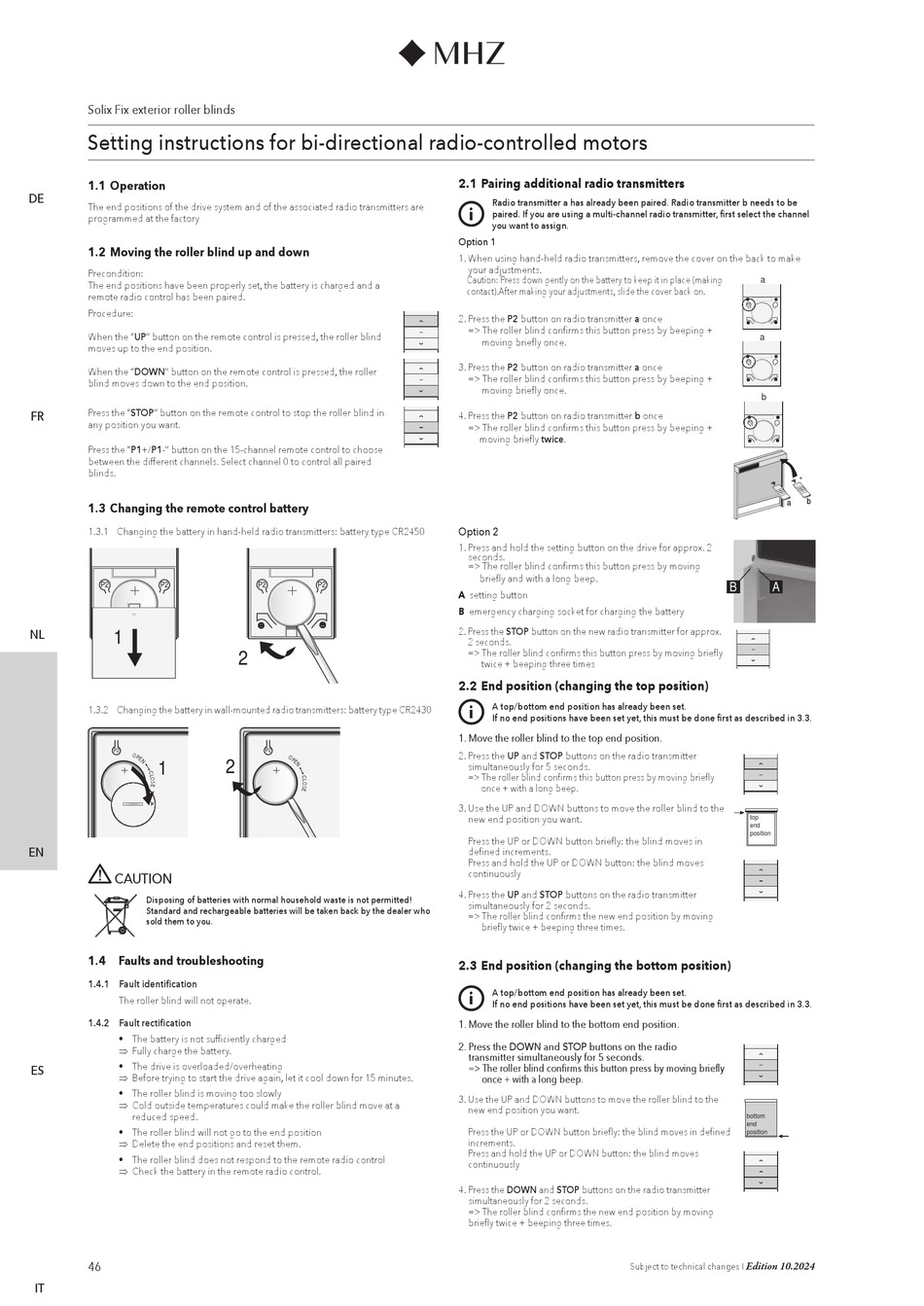

Adjustment instructions Setting instructions for bi-directional radio-controlled motors
1.1 Operation
DE
The end positions of the drive system and of the associated radio transmitters are
programmed at the factory
1.2 Moving the roller blind up and down
Precondition:
The end positions have been properly set, the battery is charged and a
remote radio control has been paired.
Procedure:
When the "UP" button on the remote control is pressed, the roller blind
moves up to the end position.
When the "DOWN" button on the remote control is pressed, the roller
blind moves down to the end position.
Press the "STOP" button on the remote control to stop the roller blind in
FR
any position you want.
Press the "P1+/P1-" button on the 15-channel remote control to choose
between the different channels. Select channel 0 to control all paired
blinds.
1.3 Changing the remote control battery
1.3.1 Changing the battery in hand-held radio transmitters: battery type CR2450
P 2 P 2
1
NL
1.3.2 Changing the battery in wall-mounted radio transmitters: battery type CR2430
P 2
1
EN
CAUTION
Disposing of batteries with normal household waste is not permitted!
Standard and rechargeable batteries will be taken back by the dealer who
sold them to you.
1.4 Faults and troubleshooting
1.4.1 Fault identification
The roller blind will not operate.
1.4.2 Fault rectification
• The battery is not sufficiently charged
⇒ Fully charge the battery.
• The drive is overloaded/overheating
ES
⇒ Before trying to start the drive again, let it cool down for 15 minutes.
• The roller blind is moving too slowly
⇒ Cold outside temperatures could make the roller blind move at a
reduced speed.
• The roller blind will not go to the end position
⇒ Delete the end positions and reset them.
• The roller blind does not respond to the remote radio control
⇒ Check the battery in the remote radio control.
46
IT
P 2 P 2
2
P 2
2
2.1 Pairing additional radio transmitters
Radio transmitter a has already been paired. Radio transmitter b needs to be
i
paired. f you are using a multi channel radio transmitter, first select the channel
you want to assign.
Option 1
1. When using hand-held radio transmitters, remove the cover on the back to make
your adjustments.
Caution: Press down gently on the battery to keep it in place (making
contact).After making your adjustments, slide the cover back on.
2. Press the P2 button on radio transmitter a once
=> The roller blind confirms this button press by beeping +
moving briefly once.
3. Press the P2 button on radio transmitter a once
=> The roller blind confirms this button press by beeping +
moving briefly once.
4. Press the P2 button on radio transmitter b once
=> The roller blind confirms this button press by beeping +
moving briefly twice.
Option 2
1. Press and hold the setting button on the drive for approx. 2
seconds.
=> The roller blind confirms this button press by moving
briefly and with a long beep.
A setting button
B emergency charging socket for charging the battery
2. Press the STOP button on the new radio transmitter for approx.
2 seconds.
=> The roller blind confirms this button press by moving briefly
twice + beeping three times
2.2 End position (changing the top position)
A top/bottom end position has already been set.
i
f no end positions have been set yet, this must be done first as described in 3.3.
1. Move the roller blind to the top end position.
2. Press the UP and STOP buttons on the radio transmitter
simultaneously for 5 seconds.
=> The roller blind confirms this button press by moving briefly
once + with a long beep.
3. Use the UP and DOWN buttons to move the roller blind to the
new end position you want.
Press the UP or DOWN button briefly: the blind moves in
defined increments.
Press and hold the UP or DOWN button: the blind moves
continuously
4. Press the UP and STOP buttons on the radio transmitter
simultaneously for 2 seconds.
=> The roller blind confirms the new end position by moving
briefly twice + beeping three times.
2.3 End position (changing the bottom position)
A top/bottom end position has already been set.
i
f no end positions have been set yet, this must be done first as described in 3.3.
1. Move the roller blind to the bottom end position.
2. Press the DOWN and STOP buttons on the radio
transmitter simultaneously for 5 seconds.
=> The roller blind confirms this button press by moving briefly
once + with a long beep.
3. Use the UP and DOWN buttons to move the roller blind to the
new end position you want.
Press the UP or DOWN button briefly: the blind moves in defined
increments.
Press and hold the UP or DOWN button: the blind moves
continuously
4. Press the DOWN and STOP buttons on the radio transmitter
simultaneously for 2 seconds.
=> The roller blind confirms the new end position by moving
briefly twice + beeping three times.
Subject to technical changes I
a
a
P 2
P 2
a
a
P 2 P 2
P 2 P 2
b
b
P 2 P 2
P 2
P 2
+
+
b b
a a
b b
a a
B
A
O b er e
E ndl a ge
Unter e
E ndl a ge
to p
end
p o s itio n
b o tto m
end
p o s itio n
Edition 10.2024
