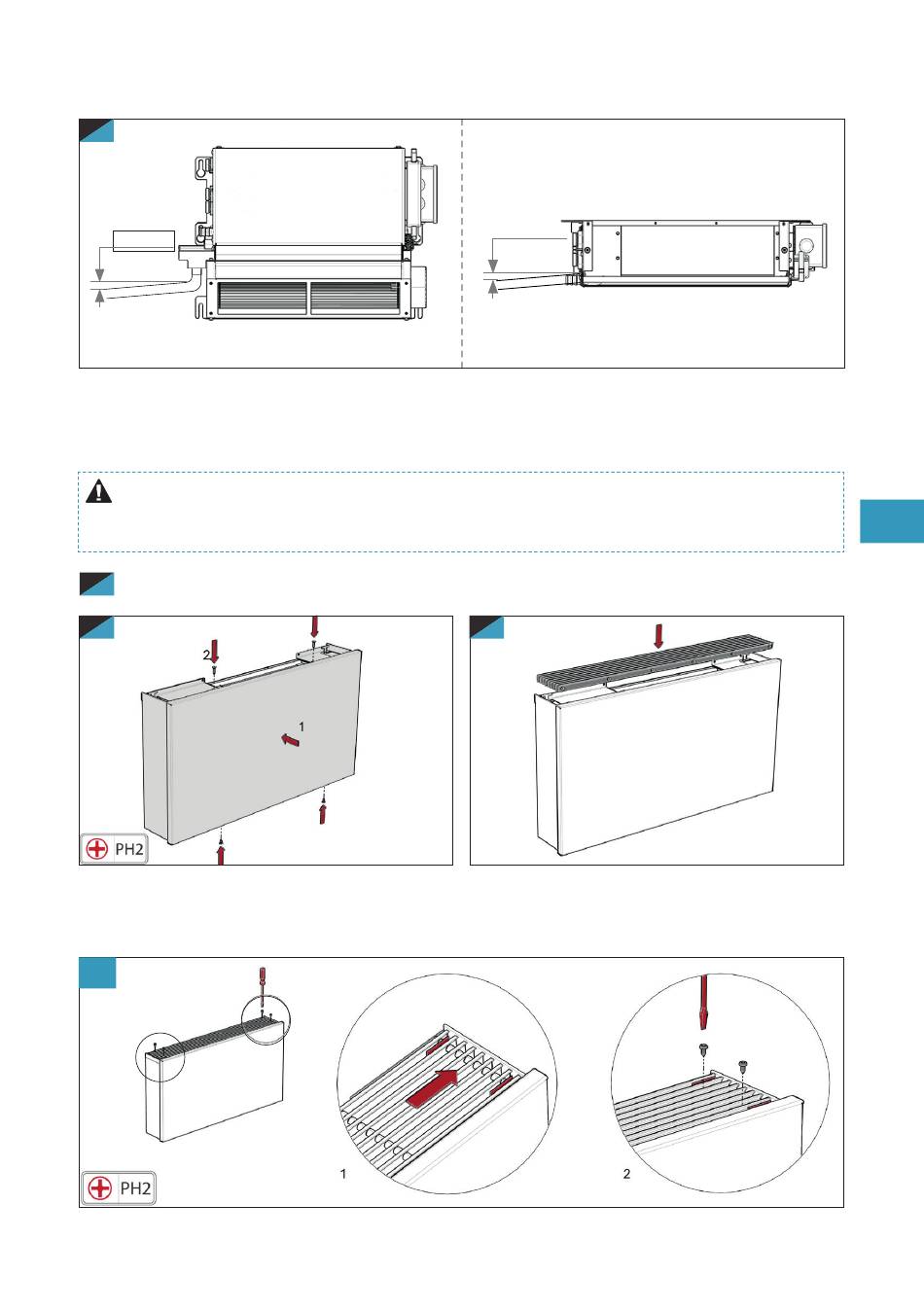

Non-condensing cooling - close the drain pipe of the condensate trap (02cm).
Condensing cooling - Install the condensate drain. The condensate drain system should be fitted with a siphon to prevent odours. The
siphon can be either on the unit or on the final condensate connection (downstream from the condensate trap). Pour water into the
condensate trap and check that it drains normally. If not, check the drain angle.
Incorrect installation and failure to follow the instructions can lead to severe water damage. Perform maintenance according
to the intensity of use and the installation environment.Therefore, Jaga N.V. shall not be liable for any consequential damage
whatsoever.Read these instructions carefully..
07
Connect the device electrically.
08
08
09
Positon the casing and secure the screws at the top and bottom
of the device.
11
Slide the clamping plates to the inside of the grid and anchor the grid guard.
JAGA NV | BRIZA 12 - BASIC | 2025.04.28 | V.1.01
1 cm/m
Wall mounted model
09
10
Install the grille..
ceiling-mounted-model
