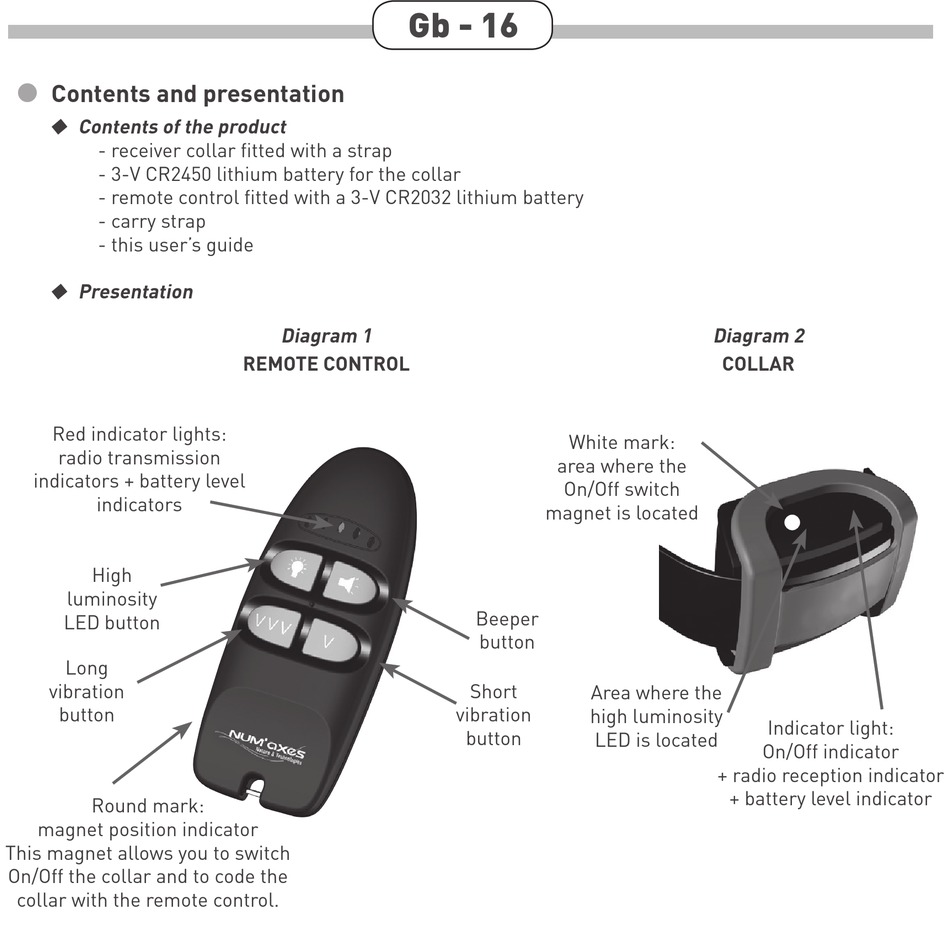

Contents and presentation

 Contents of the product
- receiver collar fitted with a strap
- 3-V CR2450 lithium battery for the collar
- remote control fitted with a 3-V CR2032 lithium battery
- carry strap
- this user's guide
 Presentation
Red indicator lights:
radio transmission
indicators + battery level
indicators
High
luminosity
LED button
Long
vibration
button
Round mark:
magnet position indicator
This magnet allows you to switch
On/Off the collar and to code the
collar with the remote control.
Gb - 16
Diagram 1
REMOTE CONTROL
White mark:
area where the
On/Off switch
magnet is located
Beeper
button
Short
Area where the
vibration
high luminosity
button
LED is located
Diagram 2
COLLAR
Indicator light:
On/Off indicator
+ radio reception indicator
+ battery level indicator
