EN

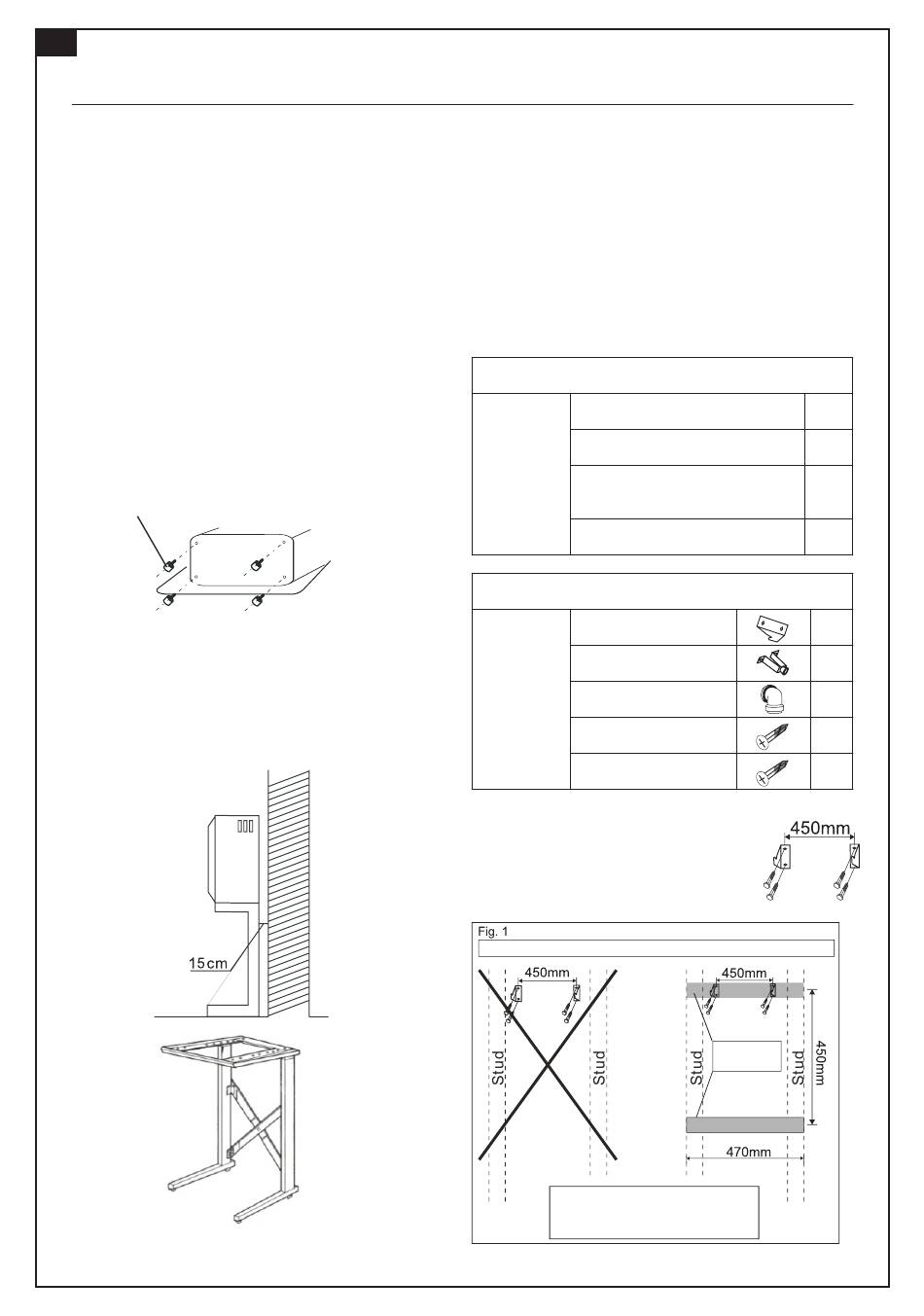

Installation instructions
Never place this dryer upside down!
Keep this dryer in a well-ventilated area,
away from direct sunlight and other heat
sources.
If the dyer is not wall-mounted, it must be
placed on firm and horizontal ground.
Never place the dryer on carpet – this will
block the air intake. Ensure there is at least
15cm of space between the dryer and
walls.
The dryer comes with fixed legs, which
need to be assembled for added stability.
Leg
If the dryer rack is mounted, a secure
bracket is required to ensure stability and
prevent vibration. Ensure there is at least
15cm of space between the dryer and walls
(the bracket is not included).
Bracket
Wall mounting instructions
1. Determine the dyer position on the wall,
then mark the required bracket position.
Do not place the dryer directly on top of
a washing machine.
• Ensure there is at least 50mm between
the top of the dryer and the ceiling.
• If mounting above a washing machine,
allow sufficient room to open the lid of the
washer
Tools reqiired
Drill & 3mm Bit
Tools&
parts
Philips Head Screw Driver
required
for
Wood Screws, φ12 x50mm
Plaster/
Timber Screws
wooden
wall
Helper to lift dryer onto wall
Wall Mounting Kit Includes
Hanging brackets
Plastic Spacers
Descriptio
Exhaust connector
n
12mm Long Screws
25mm Long Screws
2. Fix the wall hanging brackets
(two supplied) to the wall
securely (e.g., into the stud).
If the stud position is too wide,
fit a timber slat between the
studs to mount the brackets.
Ceiling
Ensure brackets are
securely fastened. Fit
Timber slats if necessary
10
1
1
4
1
2
2
1
4
4
25x75mm
Timber
