General

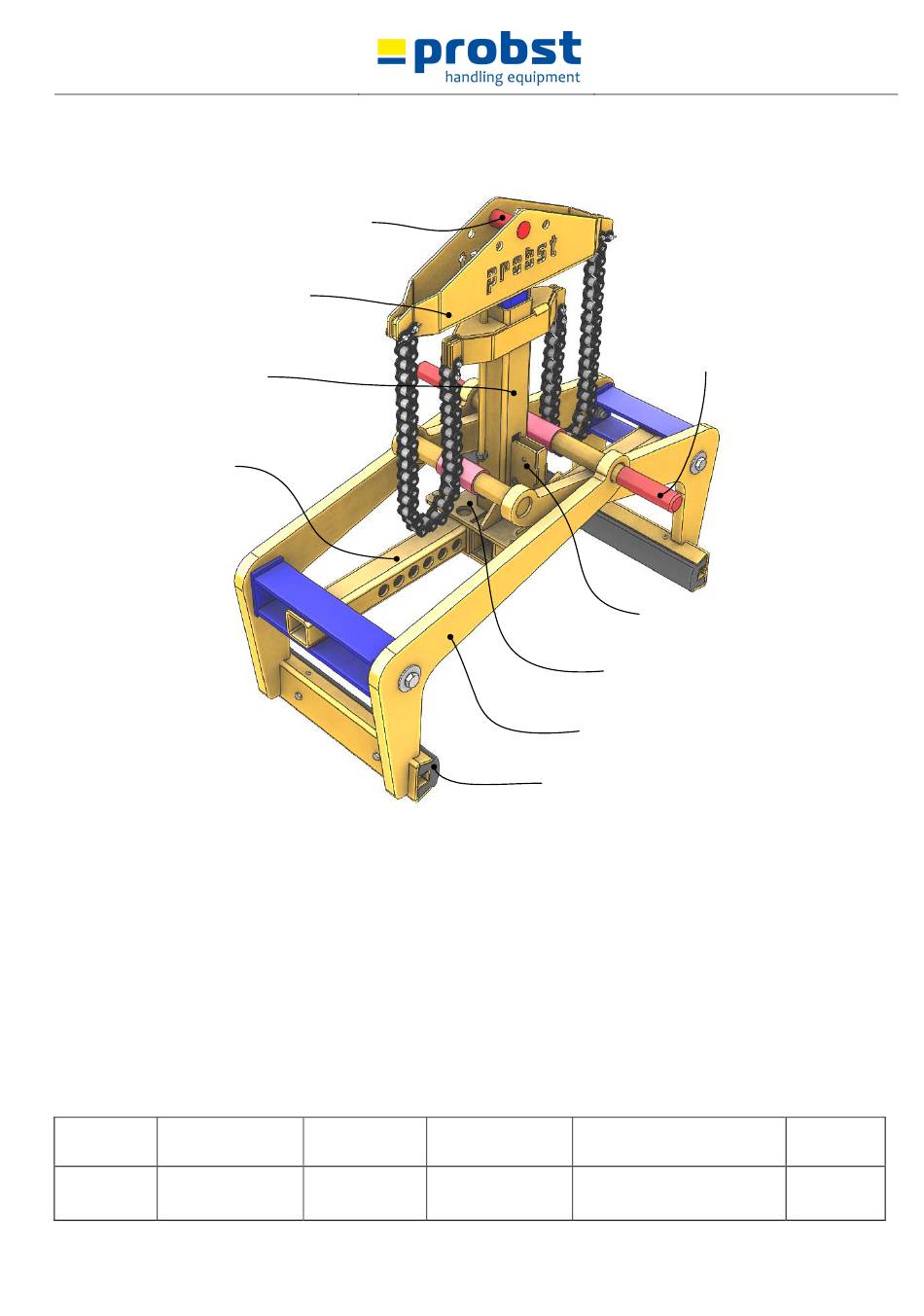

3.2 Survey and construction
4
1. Bolt for eyelet
2. Upper part
3. Telescope tube
4. Gripping width adjustments
5. Gripping jaw
6. Gripping arm
7. Fixing holes for vertically adjustable rubberplate (HVA, optional)
8. Automatic release
9. Handle
3.3 Technical data
Type
Gripping range W
FTZ-UNI-25 0-750 mm
(0-29½")
5310.0313
1
2
3
Inside height E
255 mm
(10")
7
6
5
Carrying capacity/working
Gripper lenght L
420 mm
(16½")
V4
9
8
load limit (WLL)
2,500 kg
(5,500 lbs)
10 / 18
Dead
weight
115 kg
(255 lbs)
