Front View (Desktop Orientation) - Dell Precision Workstation 390 Schnellreferenzhandbuch

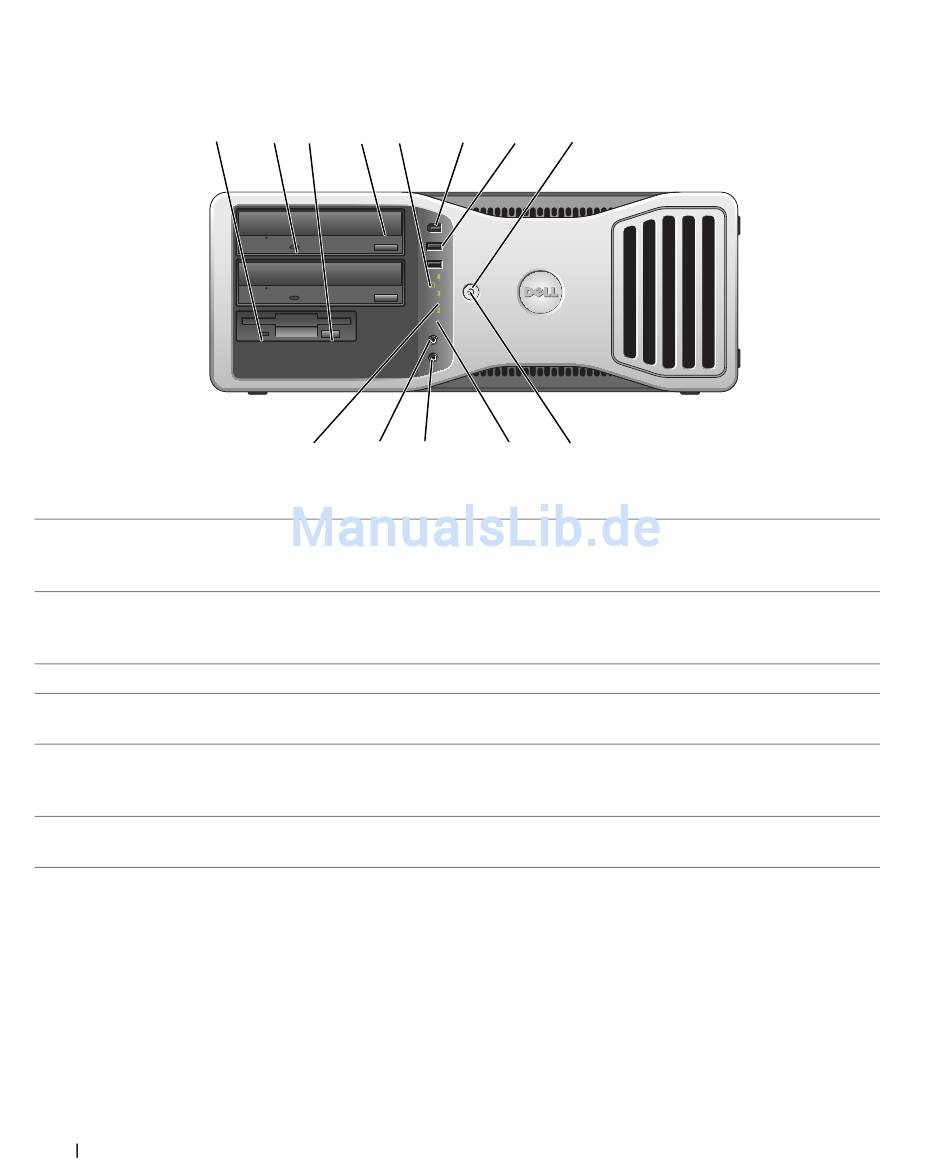

Front View (Desktop Orientation)

1
1 floppy-drive activity
light
2 CD- or DVD-drive
activity light
3 floppy-drive eject button Press this button to eject a floppy disk from the optional floppy drive.
4 CD- or DVD-drive
eject button
5 hard-drive activity light
6 IEEE 1394 connector
(optional)
22
Quick Reference Guide
2 3 5
4
13 12 11
The floppy-drive activity light is on when the computer reads data from or writes
data to the optional floppy drive. Wait until this light turns off before you remove
the floppy from the drive.
The CD/DVD-drive activity light is on when the computer reads data from or
writes data to the CD/DVD drive. Wait until this light turns off before you remove
the CD or DVD from the drive.
Press this button to eject a disc from the CD or DVD drive.
The hard-drive activity light is on when the computer reads data from or writes
data to the hard drive. The light might also be on when a device such as your CD
player is operating.
Use the optional IEEE 1394 connectors for high-speed data devices such as digital
video cameras and external storage devices.
