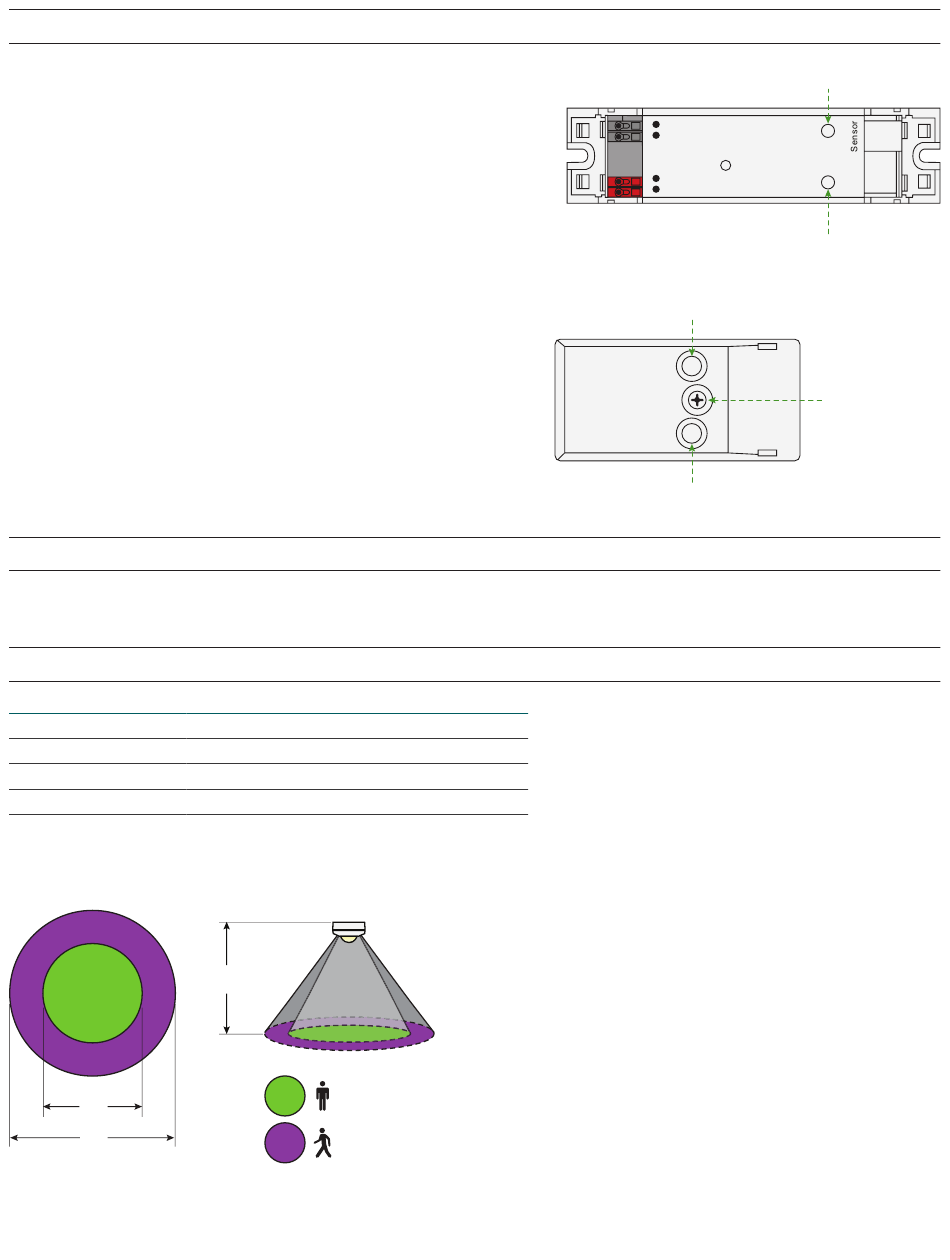

Coupler
The DALI HF LS LI Coupler features a SELECT Button and LED Indicator. The
SELECT Button enables you to identify a device and reset to factory default
settings. The LED Indicator displays green or red lights.
DALI HF LS LI Coupler LED Indicator Lights
• Green LED Indicator Flashes: Indicates motion detection.
• Red LED Indicator: Indicates a user has entered proprietary mode.
Sensor
The HF LS LI Sensor features a Light Sensor and an LED Indicator that
displays green or red light.
HF LS LI Sensor LED Indicator Lights
• Green LED Indicator Flashes: Motion is detected.
• Green LED Indicator Illuminates Continuously: Motion detection is
temporarily deactivated.
• Red LED Indicator Flashes 3 Times: IR Signal of remote control has
been received.
• Red LED Indicator Flashes 1 Time: Vibration has been detected.
• Red LED Indicator Illuminates Continuously: 100h burn-in is active.
With the power connected to the DALI HF LS LI, press and hold the SELECT Button for about 10 seconds until the LED Indicator blinks
red for 4 seconds. The DALI HF LS LI is then reset to the factory default settings.
NOTE: Resetting to factory default settings will delete the DALI short address and require the device to be re-commissioned.
Mounting Height (H)
Detection Range
Coverage Area
Coverage Area
Top View
A
B
RESETTING TO FACTORY DEFAULTS
SENSOR DETECTION RANGE
Presence
8 m (26.2 ft) 13 m (43 ft)
15 m (49.2 ft) 25 m (82 ft)
35˚ x 80˚ 35˚ x 80˚
Side View
H
A
Presence (A)
Motion (B)
FEATURES
Motion
B
3
SELECT Button
~ 220 to 240V
~ 50/60 Hz
DA
DA
LED Indicator
Light Sensor
M4 Mounting Screw
Ø 4.2 mm (0.16 inch)
LED Indicator
