LEGRAND Wattstopper PLUS Installationsanleitung

No: 080440 – 01/25 rev. 3
Catalog Numbers • Les Numéros de Catalogue • Los Números de Catálogo • Katalognummern:
EN-SCPPH-0450-ZB, EN-SCPPH-1500-ZB, EN-SCPPH-HB-ZB
Countries of Origin: Canada • Pays d'origine: Canada • Países de origen:Canadá • Herkunftsländer: Kanada
DESCRIPTION

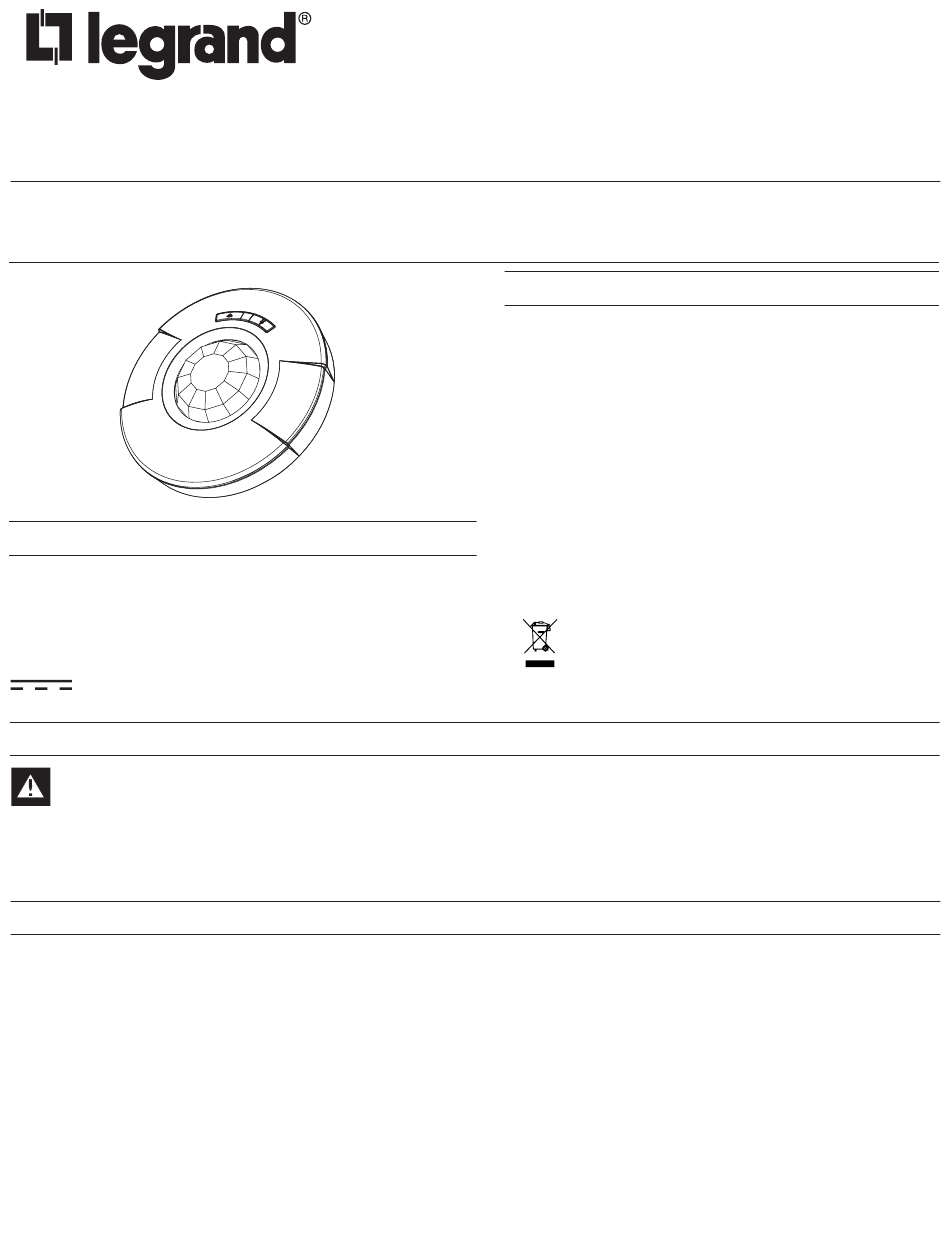

The Wireless Ceiling Mount Sensors (WCMS) consist of Passive
Infrared (PIR) and Photo Sensors which collect occupancy and
daylight information from a lighted space and communicate
collected data to the Wattstopper PLUS System over a wireless
mesh network.
This symbol indicates DC voltage.
When using electrical equipment, basic safety precautions should always be followed, including the following:
• Do not mount near gas or electric heaters or let power supply cords touch hot surfaces.
• Equipment should be mounted in locations and at heights where it will not readily be subjected to tampering by unauthorized personnel.
• The use of accessory equipment is not recommended by Legrand as it may cause an unsafe condition.
• Do not use this equipment for other than the intended use.
• Never introduce the product and/or its batteries to extreme temperatures or altitudes during use, storage, or transportation.
• Never expose batteries to excessive heat such as sunshine, fire or the like.
• Never damage or use damaged devices / batteries.
• Never short circuit the batteries
• Always ensure batteries are installed with their correct polarity
• Ensure batteries are removed from the product after they have become exhausted.
• Batteries should only be replaced by maintenance staff or other professional
• CAUTION: Risk of fire or explosion if the battery is replaced incorrectly
Wattstopper
Wireless Ceiling Mount Sensors
Détecteurs de Montage au Plafond sans Fil
Sensores Inalámbricos de Montaje en Techo
Drahtlose Deckensensoren
Installation Instructions • Instructions d'Installation • Instrucciones de Instalación
Installationsanleitung
Power Supply ...............................................................2 AA batteries
Lens Types
EN-SCPPH-0450-ZB .......................................Standard Range
EN-SCPPH-1500-ZB ...................................... Extended Range
EN-SCPPH-HB-ZB ..................................................... High Bay
Wireless Communication...............................up to 30 ft , line of sight
............................................................. or 15 ft non-line of sight
Operating Temperature
Standard Range & Extended Range ......32° to 104°F (0° to 40°C)
High Bay ..................................................32° to 140°F (0° to 60°C)
Relative Humidity ..................................0% to 95%, non-condensing
Certifications
UL/CUL listed under UL916
FCC Part 15/ICES-003
CE, FCC, RoHS
Meets ASHRAE Standard 90.1 and CEC Title 24 requirements
has the choice to give his product to a competent recycling organization or to the
retailer when he buys a new electrical or electronic equipment.
PRODUCT SAFETY
BATTERY SAFETY
PLUS
®
SPECIFICATIONS
This product bears the selective sorting symbol for Waste electrical
and electronic equipment (WEEE). This means that this product must
be handled pursuant to European directive 2012/19/EU in order to be
recycled or dismantled to minimize its impact on the environment. User
