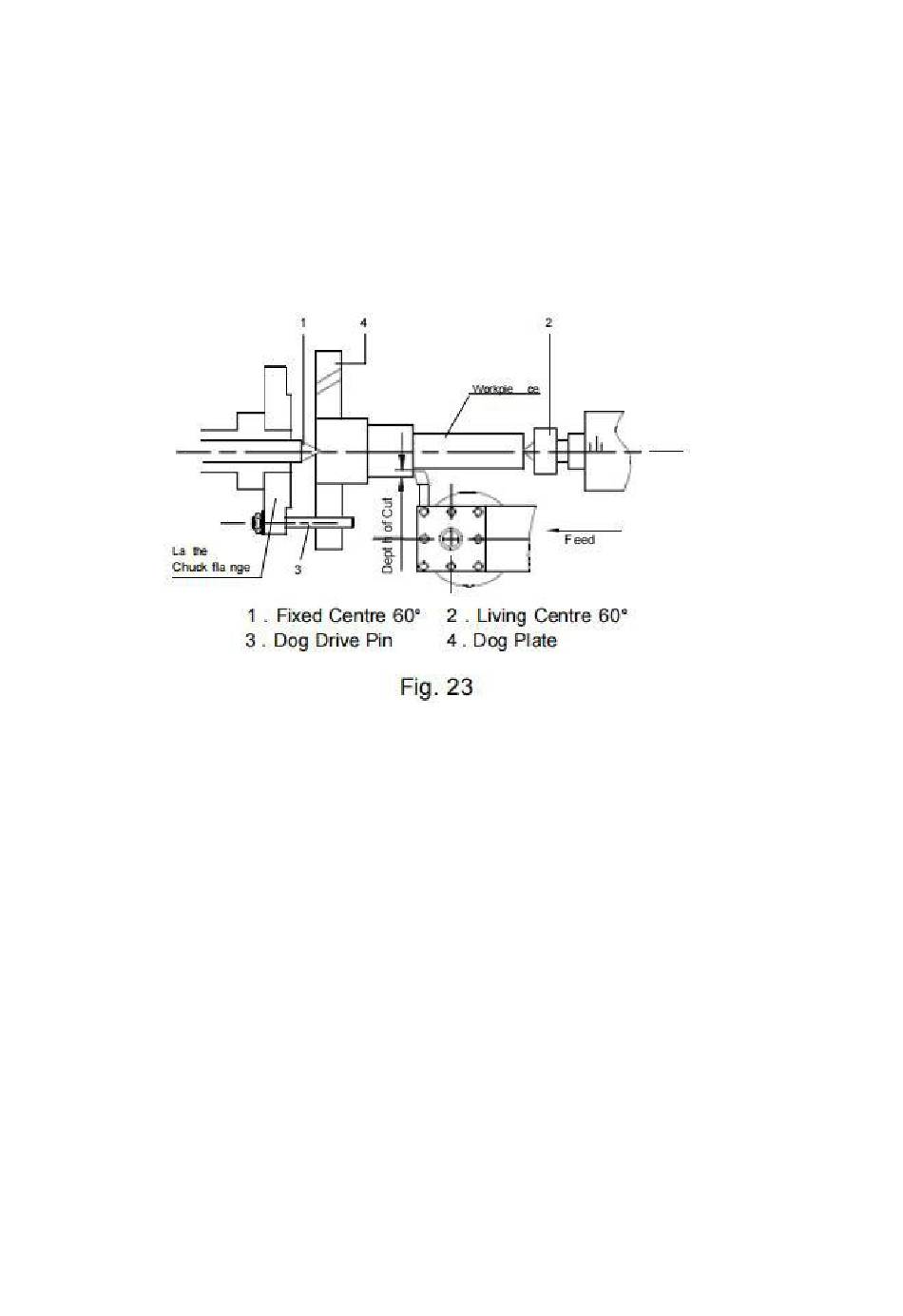

Turning: Slender shaft ( Fig. 23 )
For turning between centers, it is necessary to remove the chuck from the
spindle. Fit the M. T. 3 center into the spindle nose and the M.T. 2 center
into the tail stock. Mount the workpiece fitted with the driver dog between
the centers. The driver is driven by a catch or face plate.
Note: Always use a small amount of grease on the tail stock center to
prevent center tip from overheating.
Taper Turning Using Tail stock Off-Set
Adjust the deviation between the tailstock sleeve center and the spindle
center to complete the taper turning. The angle depends on the length of
the workpiece.
To off-set the tail stock, loosen locking screw (A, Fig.24).
Unscrew the set screw (B, Fig.24) on right end of the tailstock. Loosen the
front adjusting screw( C, Fig.24 ) and take up the same amount by
tightening the rear adjusting screw (D, Fig.24) until the desired taper has
been reached. The desired cross- adjustment can be read off the scale. (E,
Fig.24 ). First re-tighten the set screw (B, Fig,24) and then the two (front
and rear) adjusting screw to lock the tail stock in position. Re-tighten the
locking screw (A, Fig.24) of the tailstock. The workpiece must be held
between two centers and driven by a face plate and driver dog.
- 24 -
