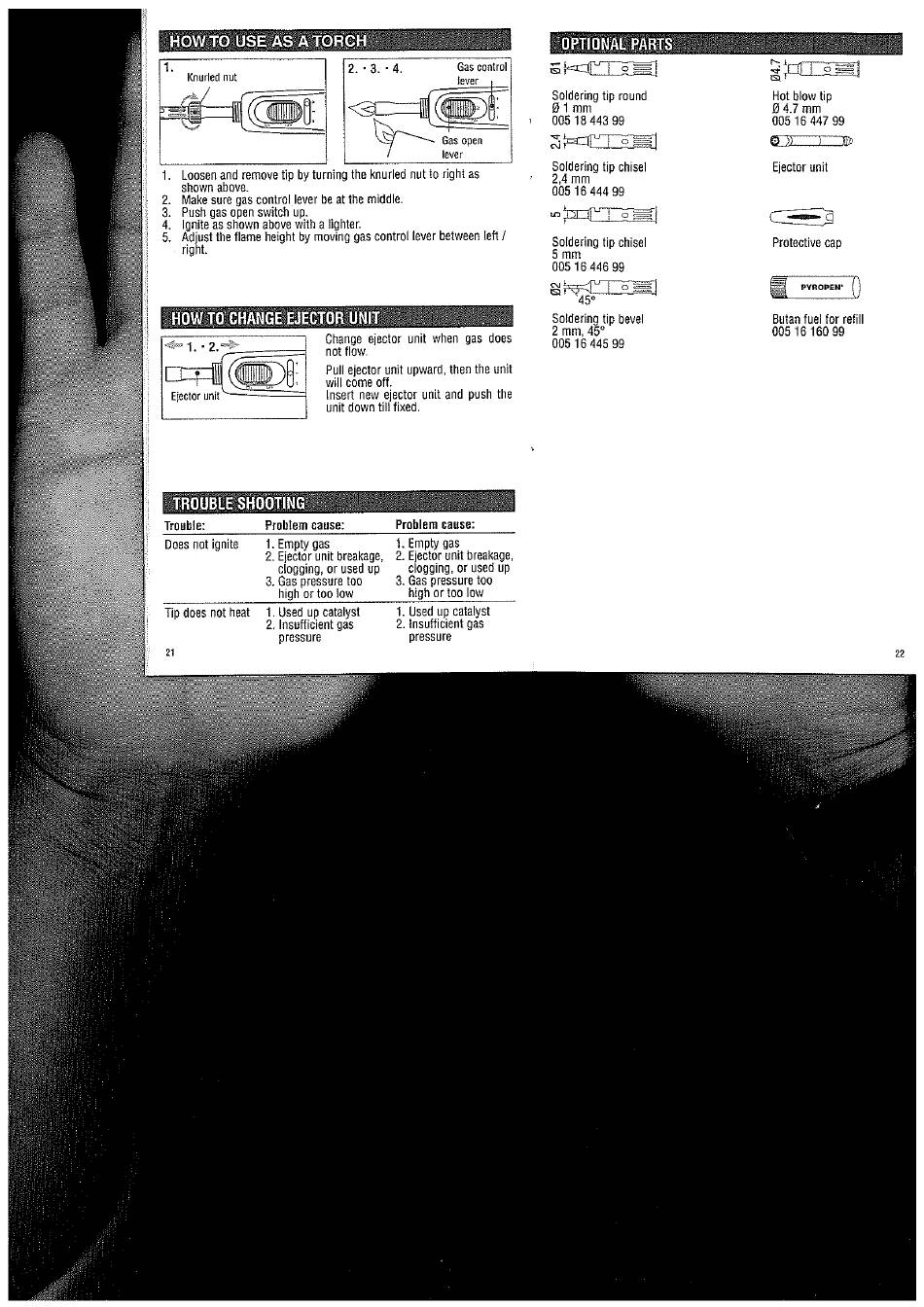

HOW TCUSE AS A TORCH
1.
Knurled nut
Loosen andremovetip by turningtheknurlednutto rightas
shown above.
Makesuregascontrolleverbeatthe middle.
2.
Push gas open switch up
3.
4. Ignite as shown abovewith a lighter.
Adjusttheflameheightby movinggascontrolleverbetween left /
5.
right.
HOW TO CHANGEEJECTORUNIT
Changeejectorunit when gas does
not flow.
Pullejectorunit upward, t henthe unit
will come off.
Insert new ejector unit and push the
Ejectorunit
unit down till fixed.
TROUBLeSHOOTlNG
Problem cause:
Trouble:
Doesnot ignite 1 Empty gas
2. Ejector unit breakage,
clogging, or used up
3. Gas pressuretoo
high or too low
Tip does not heat 1 Usedup catalyst
2. Insufficient gas
pressure
21
OPTIONAL PARTS
Gas control
lever
Soldering tip round
I mm
005 18 443 99
Gas open
lever
Soldering tip chisel
2,4 mm
005 16 444 99
Soldering tip chisel
5 mm
005 16 446 99
Soldering tip bevel
2 mm, 450
005 16 445 99
Problem cause:
1. Emptygas
2. Ejectorunit breakage,
clogging, or used up
3. Gas pressure too
high or too low
1. Usedup catalyst
2. Insufficient gas
pressure
450
Hot blow tip
4.7 mm
005 16 447 99
Ejector unit
Protectivecap
PYROPEN•
Butan fuel for refill
005 16 160 99
