1 – Washer
2 – Bolt
3 – Nut

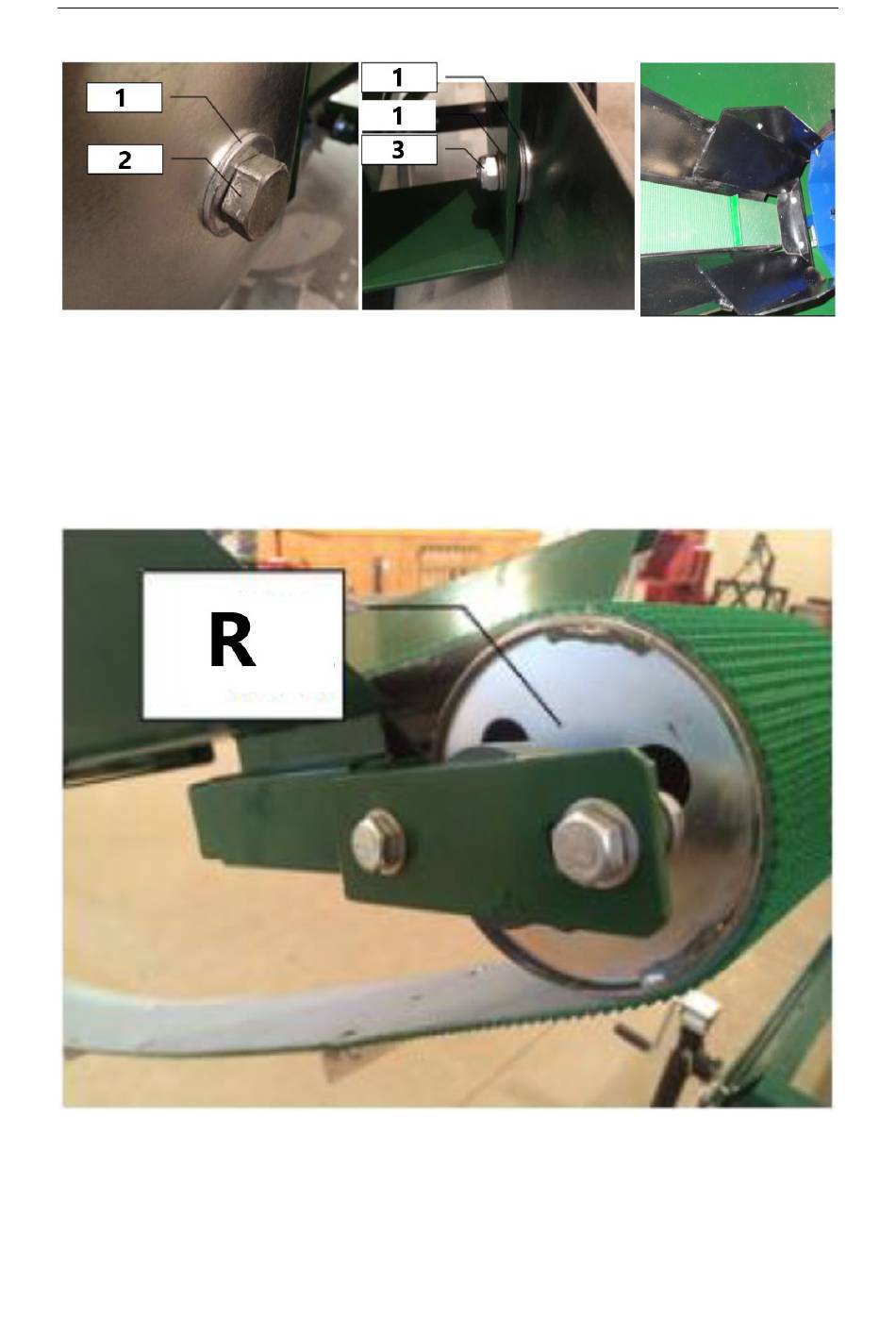

18) The top half of the conveyor can now be installed to the bottom half by bolting it at the seam
using the hardware shown below. Be sure to install one of the washers in between the top
and bottom conveyor. The nut should be left loose so that the bolts act as a hinge and allow
the conveyor system to fold in half. Also, be sure that the conveyor is looped around the top
roller.
R - Top Roller
19) The top half can now be latched to the bottom half as shown below. Once latched in place,
one person can begin to lift the conveyor up so another person can slide the support leg in
place and latch the chain.
