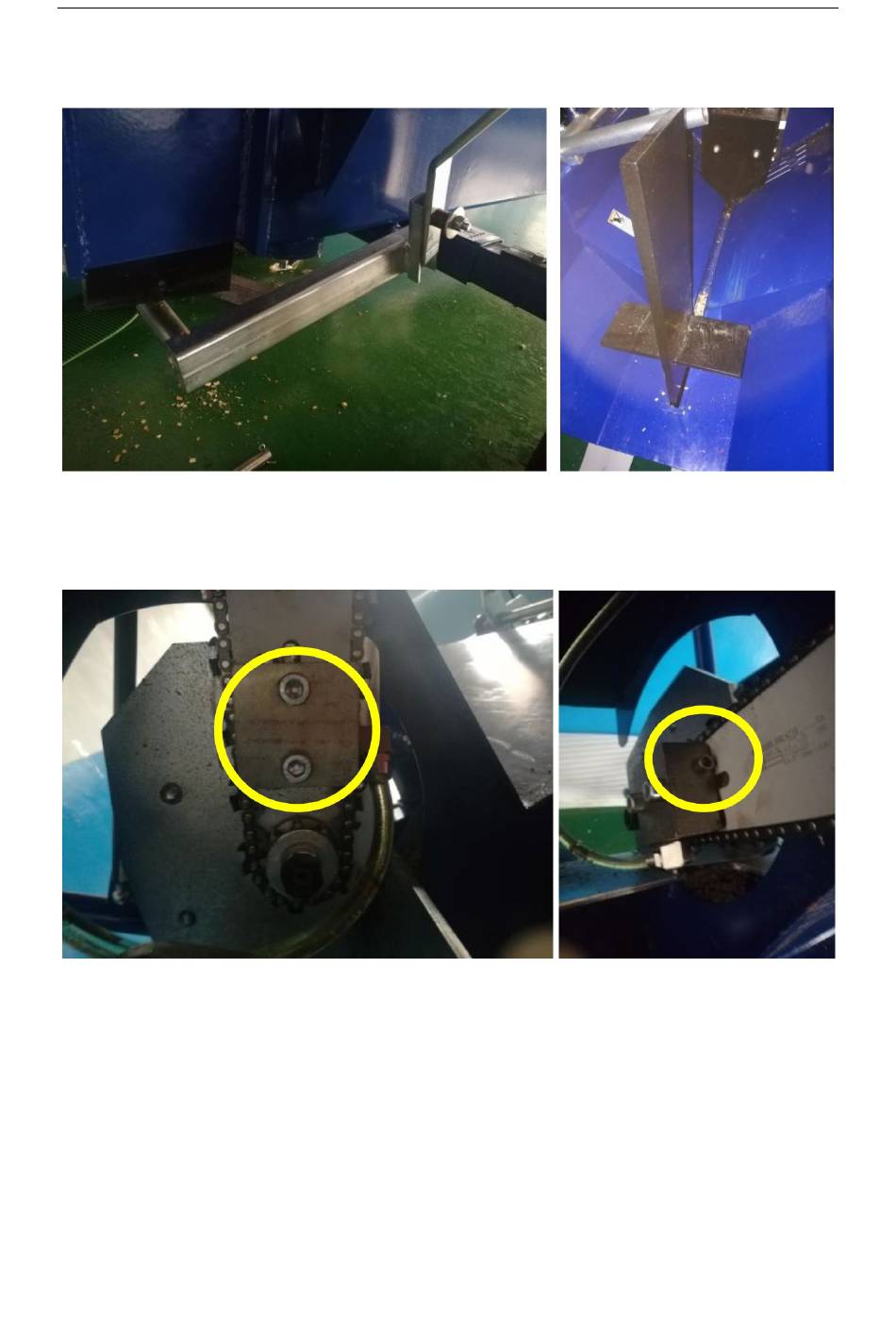

15) Install the 2/4 way splitter bottom support as shown below. The handle can also be installed
at this point along with the 2/4 way splitter.
16) The chain can now be adjusted to ensure the tension is set correctly. Proper chain tension is
achieved when the chain can be pulled away from the bar by hand 6.4mm-12.7mm. To
tighten or loosen the chain, the two bolts can be loosened using a 13mm wrench. Next, the
hexagon socket bolt can be turned clockwise to tighten or counter-clockwise to loosen the
chain. The two 13mm bolts can be tightened again to hold the bar securely.
With the firewood processor now assembled, the conveyor system can be unpacked from the
cardboard packaging and laid out, ready to be assembled and installed to the processor.
17) With the galvanized bracket now bolted to the conveyor, lift it in place so that it can be
attached to the processor. A scissor jack or car jack can be used to aid in lifting the conveyor
up into place so the mounting holes align.
