Pit Boss NAVIGATOR PB1230G Handbuch Seite 27

Part# Description
1-PDH Hopper Lid (x1)
2-PDH Hopper Safety Screen (x1)
3-PDH Hopper Box Housing (x1)
4-PDH Hopper Access Panel (x1)
5-PDH Hopper Handle (x1)
Combustion Fan (x1)
6-PDH
7-PDH Control Board (x1)
8-PDH Drop Chute Plate (x1)
9-PDH Drop Chute Cover (x1)
Auger Motor (x1)
10-PDH
Nylon Bushing (x1)
11-PDH
1-PDH
2-PDH
3-PDH
5-PDH
17-PDH
4-PDH

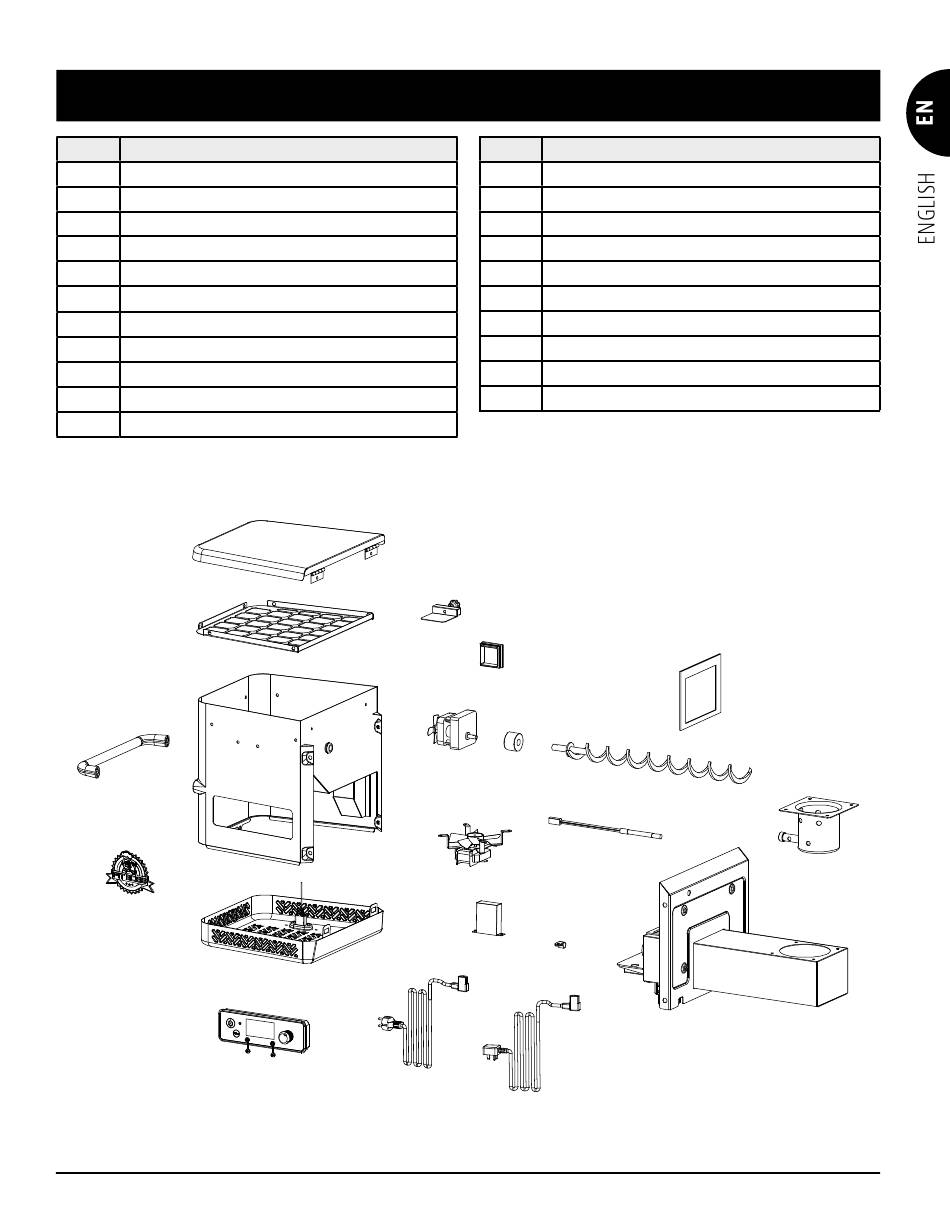

HOPPER REPLACEMENT PARTS
8-PDH
10-PDH
20-PDH
7-PDH
Part# Description
12-PDH Auger Flighting Assembly (x1)
13-PDH Auger Box Housing (x1)
14-PDH Hopper Housing Gasket (x1)
15-PDH Igniter (x1)
16-PDH Fire Pot (x1)
Name Plate (x1)
17-PDH
Power Cord Waterproof Cover (x1)
18-PDH
Power Cord Clip (x1)
19-PDH
20-PDH Power Cord - F Plug (x1)
Power Cord - G Plug (x1)
21-PDH
NOTE: Due to ongoing product development, parts are subject to change without notice.
9-PDH
11-PDH
12-PDH
6-PDH 15-PDH
18-PDH
19-PDH
21-PDH
14-PDH
16-PDH
13-PDH
